Smart265
ONVIF
SLINK
IMS
APP
Change light panel mode
humanoid detection
vehicle detection
Reverse transcription
Off-duty monitoring
1)Supports 10 cameras (8MP/D1 + 10 preview channels + 4 playback channels)
2)Supports Smart265, H265, and H264 dual-stream decoding.
3) Supports synchronized recording, remote monitoring, and MP4 format backup. You can also watch videos on your phone.
4) Supports VGA/HDMI output.
5) Supports previewing and replaying images with electronic zoom. 6)Supports ONVIF, RTSP, and GB28181 protocols.
7) Supports RTMP streaming.
8) Supports alarm capture and alarm email sending.
9) Supports DDNS, UPNP, NTP, P2P, and other features.

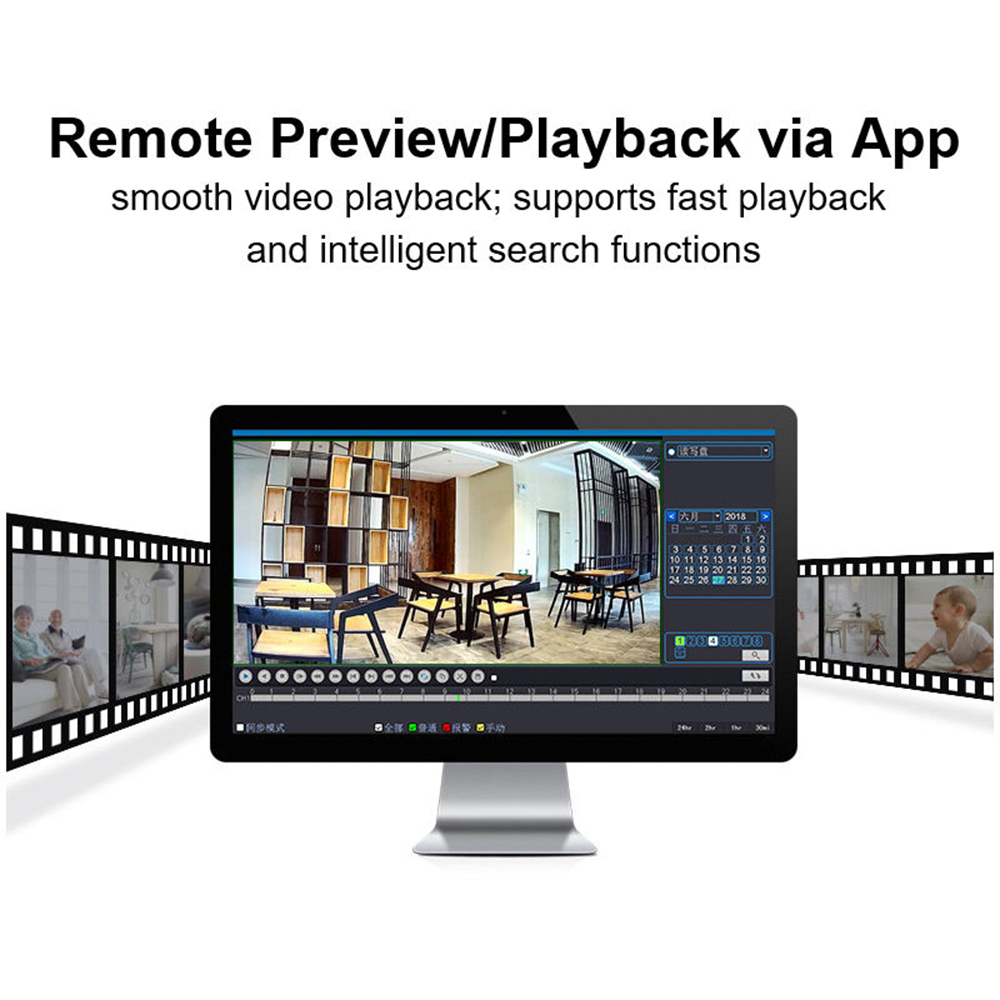

10) Supports web, mobile monitoring, and IMS client monitoring.
11) Support our company's SMART IPC behavior analysis: human detection, boundary crossing detection, vehicle wrong-way driving, personnel off-duty, personnel lingering, area intrusion, and vehicle illegal parking.
12) Support channel rotation grouping.
13) Support network detection (network traffic monitoring, network packet capture, network connectivity)
14) Supports synchronized playback of up to 41080P video streams. 15)Supports 10-channel 4K decoding and 4K display output.
16)Supports manual and automatic addition of IPCs in the local area network.
17)Supports online and USB upgrade of IPC.
18) Supports private protocol IPC maintenance, including IPC default restoration, reboot, and enabling/disabling full network connectivity.
19) Supports offline recording.
20) Select video stream mode.
21) Optimize access bandwidth up to 80M.
| Scheme | A1N | |||||
| Structure of a system | Embedded Linux design, pure hardware decoding, watchdog timer, hard disk storage, HDMI HD display, IP network video access | |||||
| Video mode | Split screen | 1 | 4 | 6 | 8 | 10 |
| Decoding | 4K | 4*1080P | 4MP+5*D1 | 4MP+7*D1 | 10*D1 | |
| Video input bandwidth | Access bandwidth: 80Mbps | |||||
| Video Output | 1 HDMI output and 1 VGA output (same source as HDMI); resolutions:3840×2160, 1920×1080,1440×900,1280×1024,1280×800,1024×768 | |||||
| Supports IMS client preview and APP instant connection preview | ||||||
| Supports multi-screen splitting; real-time preview of 1/2/4/6/8/9/10 screens | ||||||
| Video resolution | Supports 720P/960P/1080P/3MP/4MP/5MP/4K | |||||
| Video decoding parameters | Supports Smart265/H.265/H.264 decoding | |||||
| NVR supports synchronized playback of 4 channels (1*4K); the IMS client enables remote recording and playback for up to 4 channels. | ||||||
| Audio frequency | G.711 standard; supports HDMI audio output, audio output (3.5mm jack), and audio input (3.5mm jack); supports IMS client audio/video preview and playback | |||||
| Memory management | One SATA port, each supporting hard drives up to 16TB in capacity | |||||
| Supports scheduled recording, alarm recording, and both scheduled and alarm recording alarm recording includes (motion detection, human detection, boundary crossing) Detection, area intrusion, personnel lingering, personnel off-duty, vehicle illegal parking, vehicle wrong-way driving | ||||||
| Supports external USB storage devices (such as standard USB drives and external hard drives) for backup | ||||||
| User management | Supports up to 32 users locally | |||||
| Network interface | One RJ45 Ethernet port with 10/100M adaptive speed; supports multiple network protocols including TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, SMTP, and GB 28181. | |||||

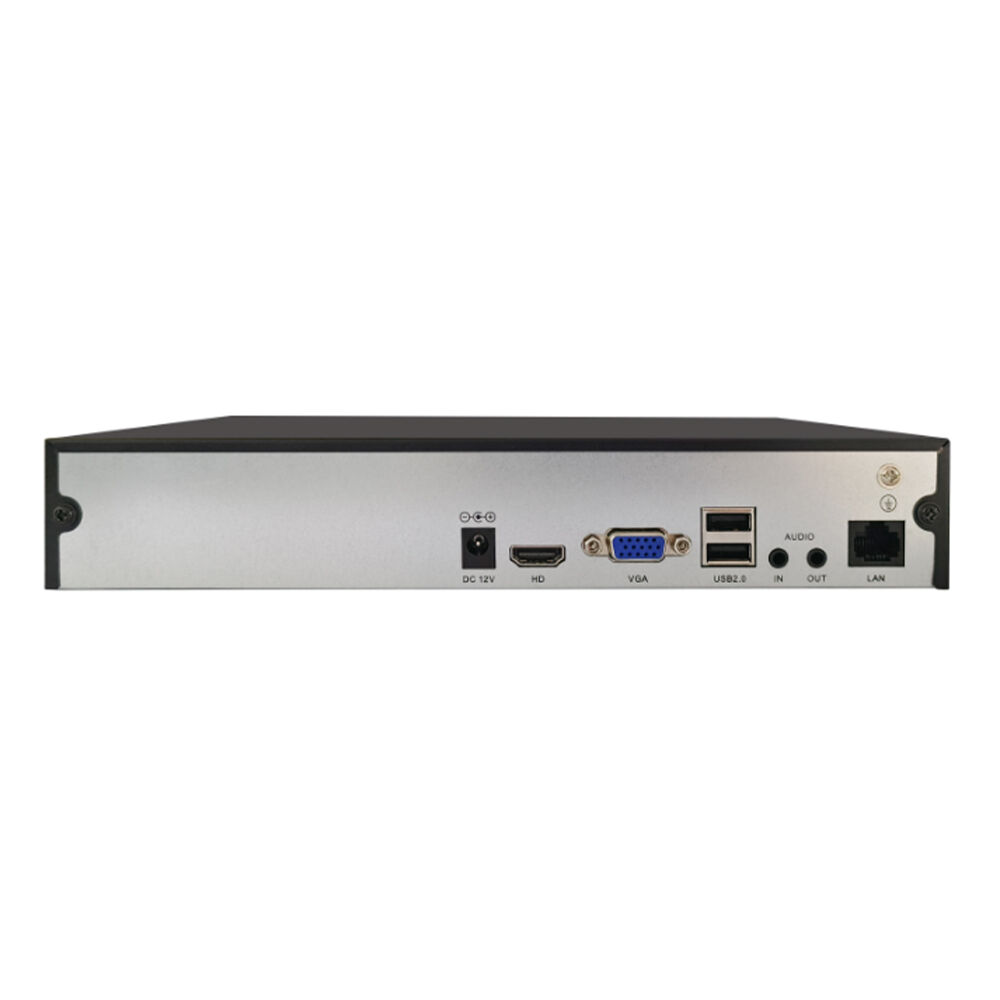

| Peripheral interface | 2 USB2.0 ports (rear); supports mouse, USB upgrade, and import/export | |||||
| Alarm interface | Not have | |||||

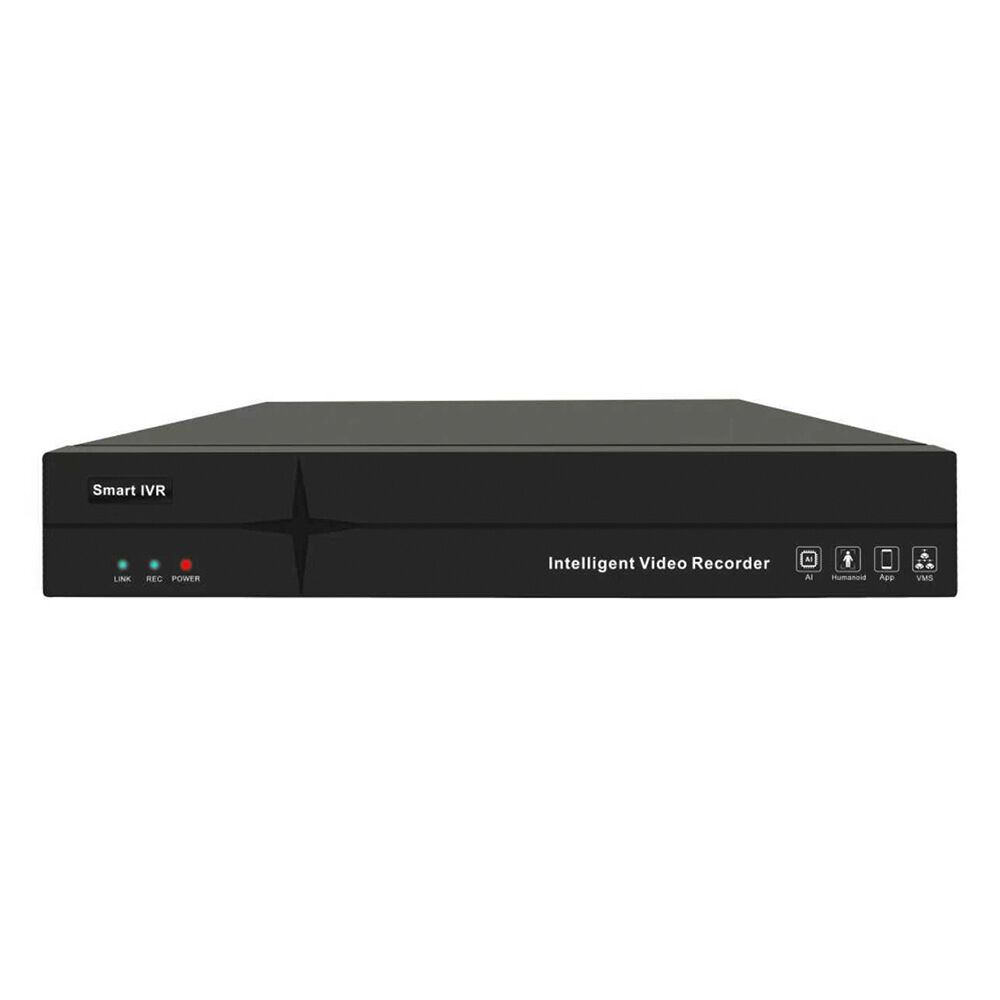

| Front panel | Supports power, recording, and network transmission with 3 status indicators | |||||
| Buzzer | Supports buzzer alarm | |||||
| Business Functions | Supports preview, recording, forwarding, and remote services; supports alarm linkage and IMS client remote monitoring software; supports P2P cloud services | |||||
| Working temperature | -10℃～＋55℃ | |||||
| Working humidity | 10%～90% | |||||
| Rated dissipation | DC +12V/2A power input, ≤2W power consumption (excluding hard drive) | |||||

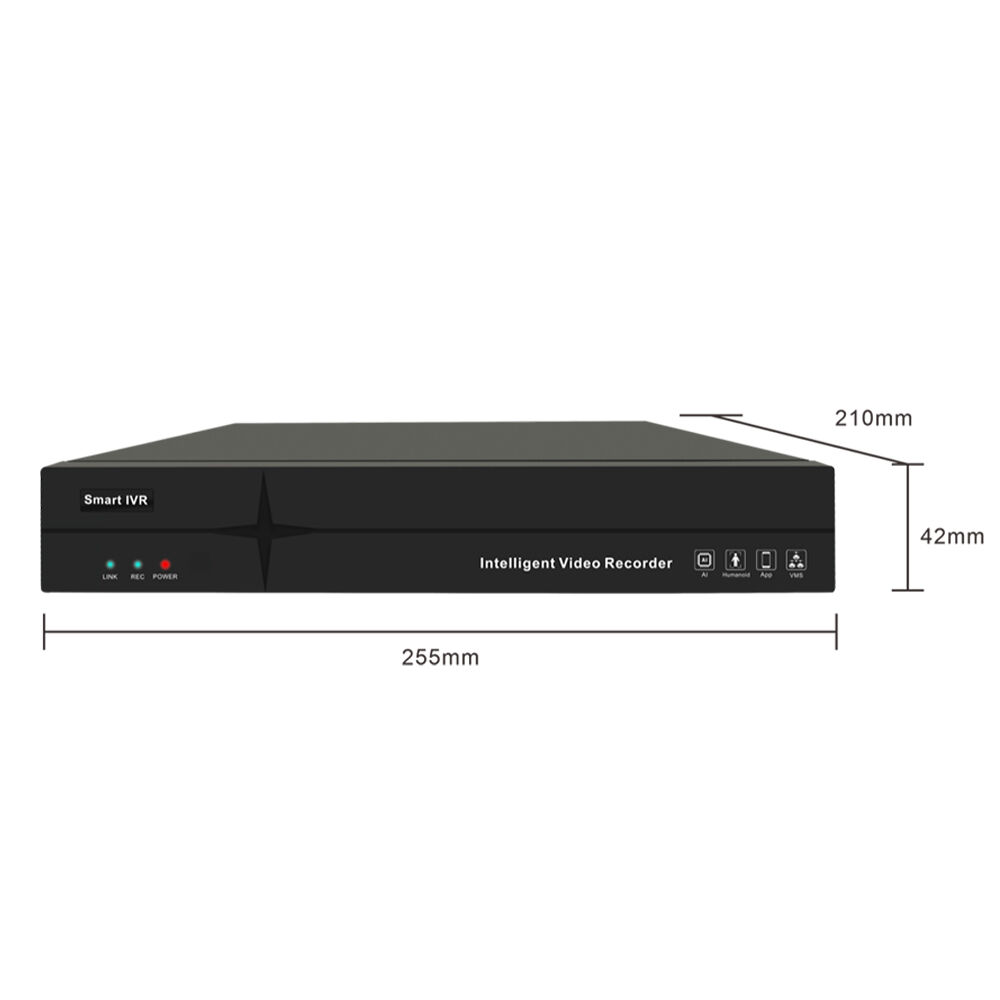

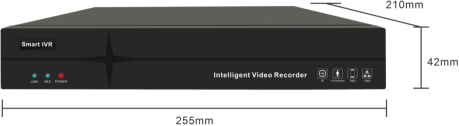

| Size （mm） | Dimensions: 255*210*42mm (W×D×H) Wall-mounted | |||||

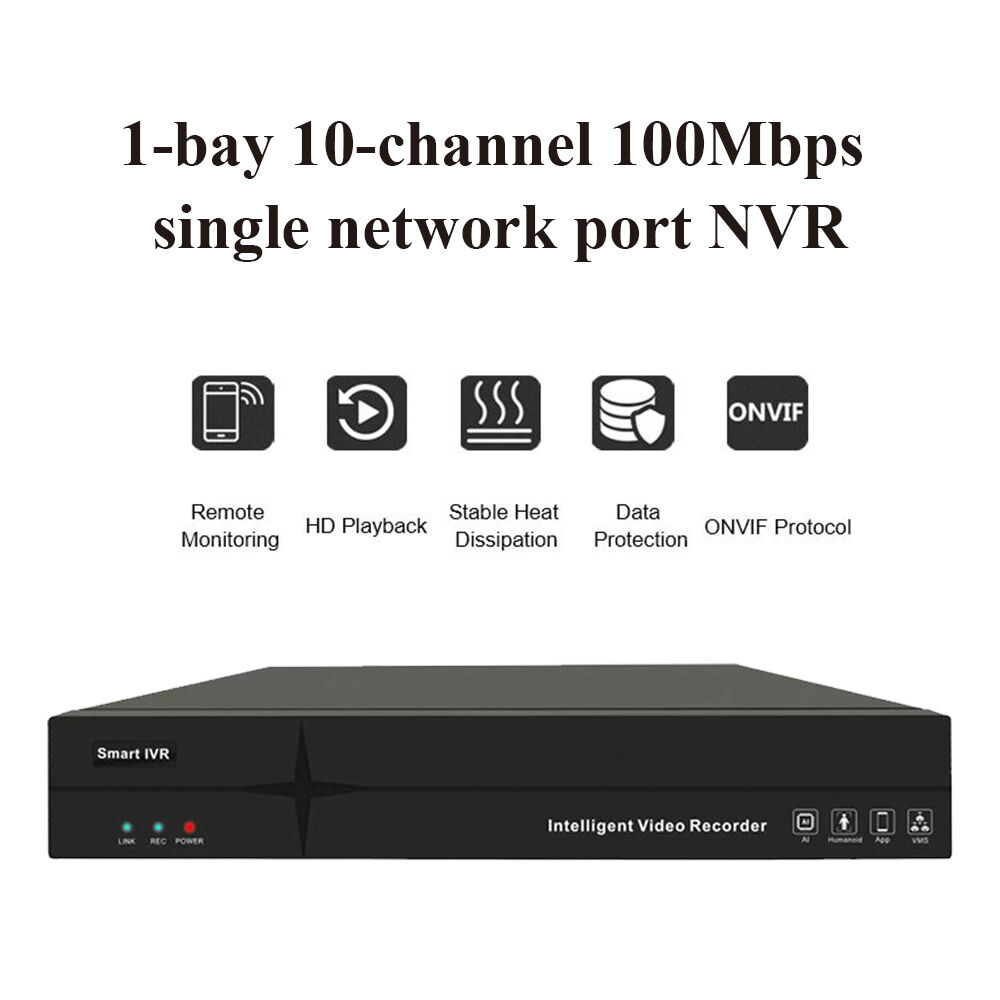

The 10-channel intelligent hard disk recorder supports 10-channel 4K camera inputs and outputs, featuring smart functions including boundary detection, vehicle reverse driving, personnel absence, lingering, area intrusion, and illegal parking. It provides voice alarm functionality in multiple modes and allows modification of the light pattern in the propri- etary IPC protocol. The system supports both online and USB-based upgrades for our camer- as, with a maximum capacity of 16TB hard disk, 1 HDMI and 1 VGA output interface, 2 USB ports, and mobile monitoring capability.
