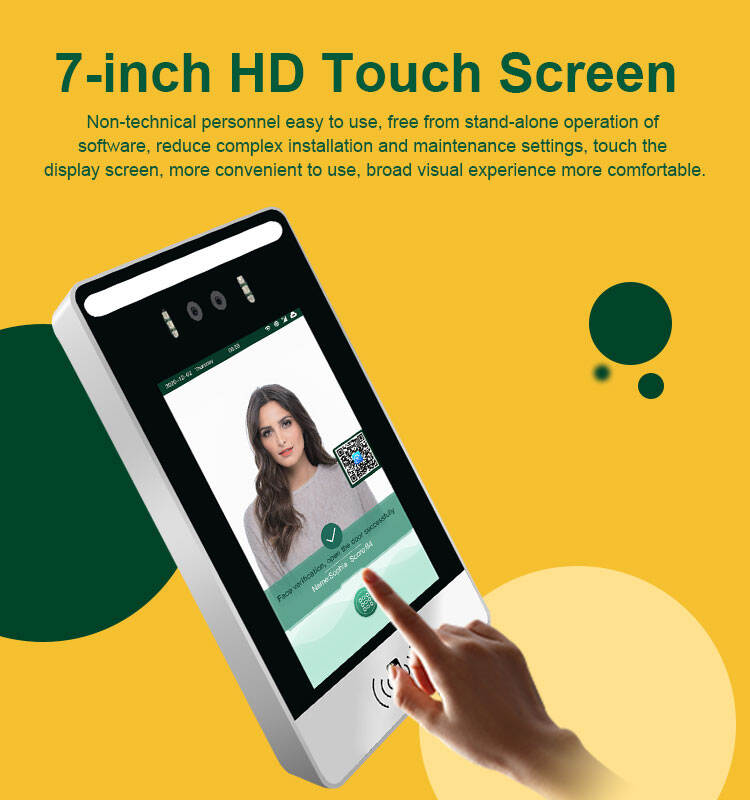

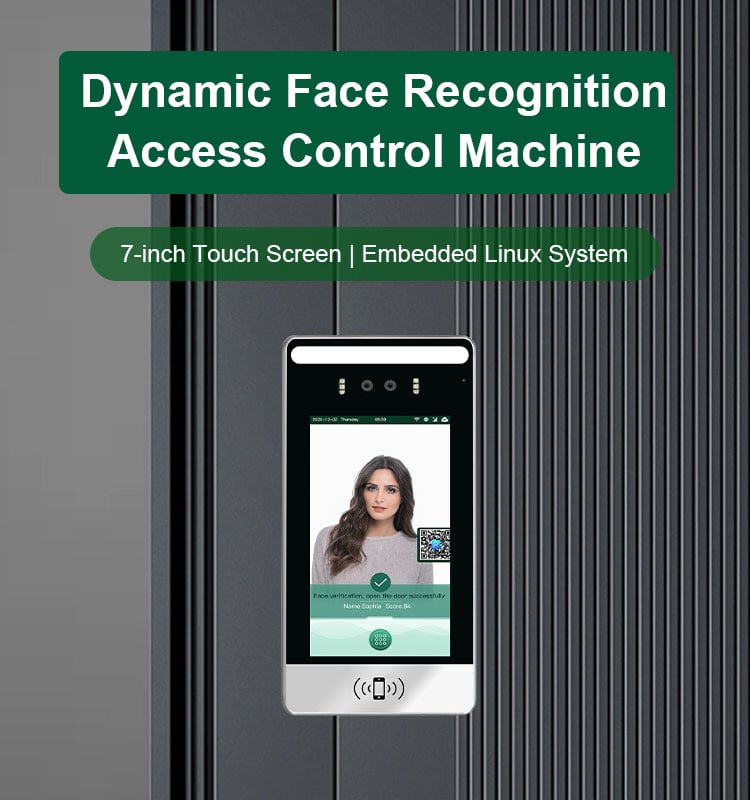

7 inch HD full touch screen design;

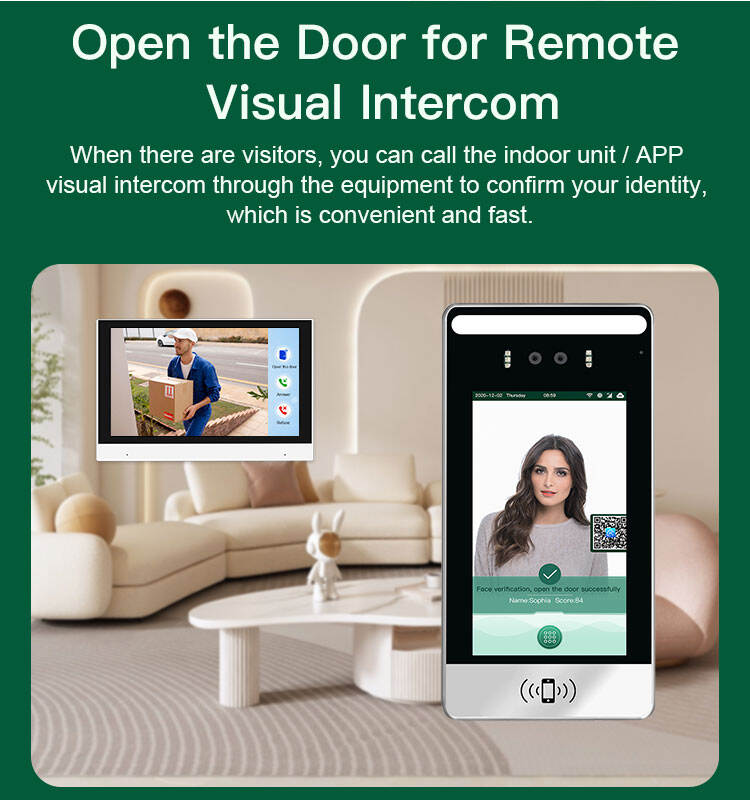

Set face recognition, visual intercom, access control function in one;
ARM high-speed CPU, built-in NPU, embedded Linux system;

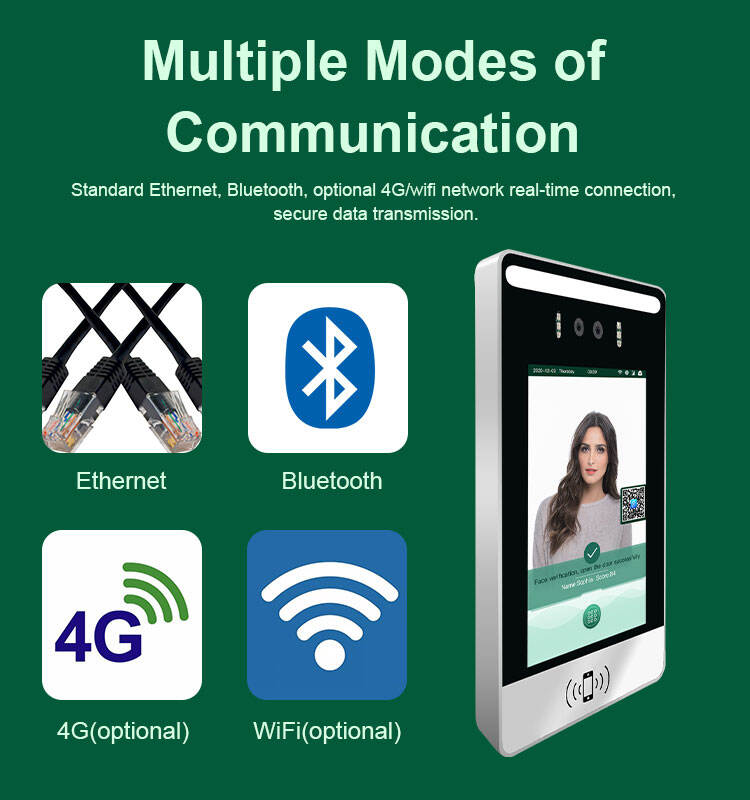

Standard Ethernet, optional 4G/WIFI;

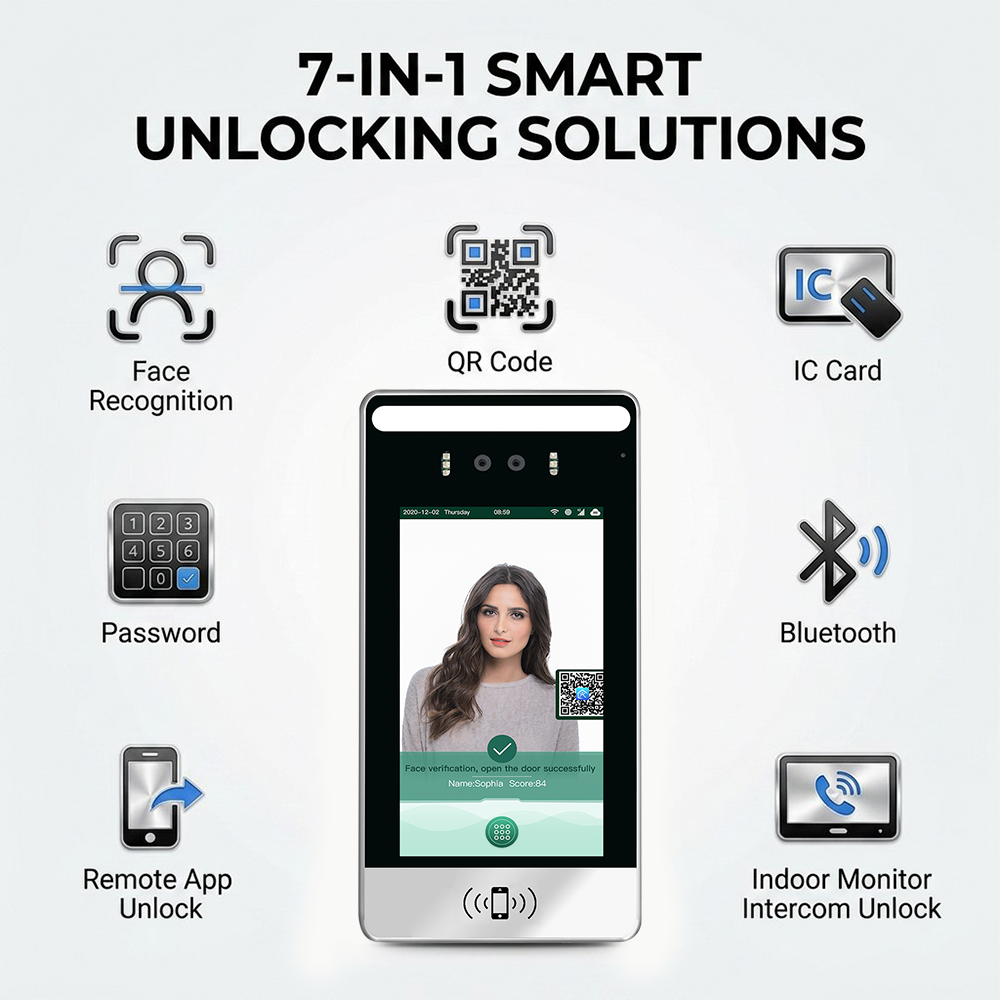

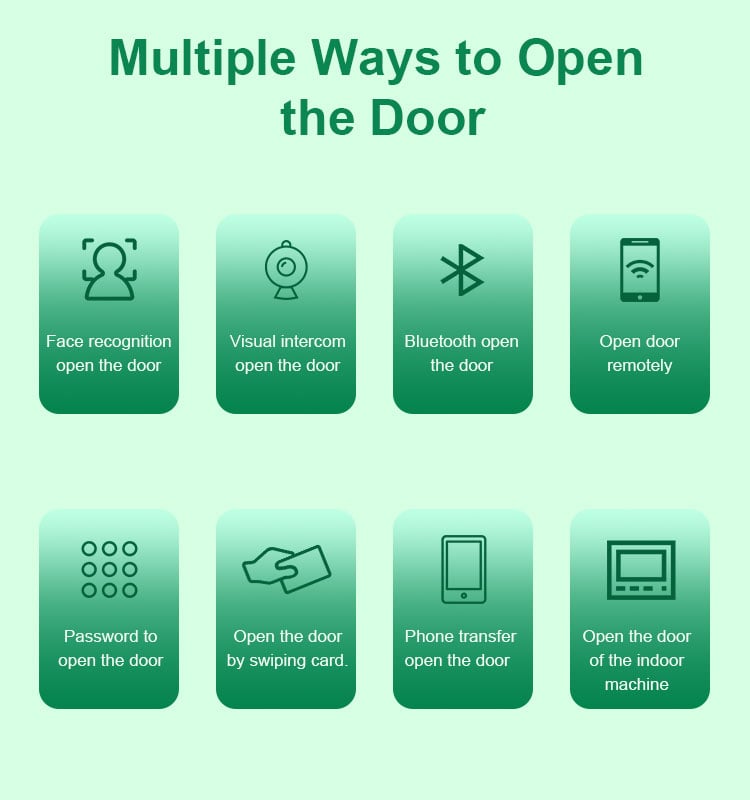

A variety of unlocking methods: mobile phone Bluetooth / mobile phone remote / face recognition / video intercom / optional two-dimensional code / swipe card / password unlock / indoor unit unlock and other ways;

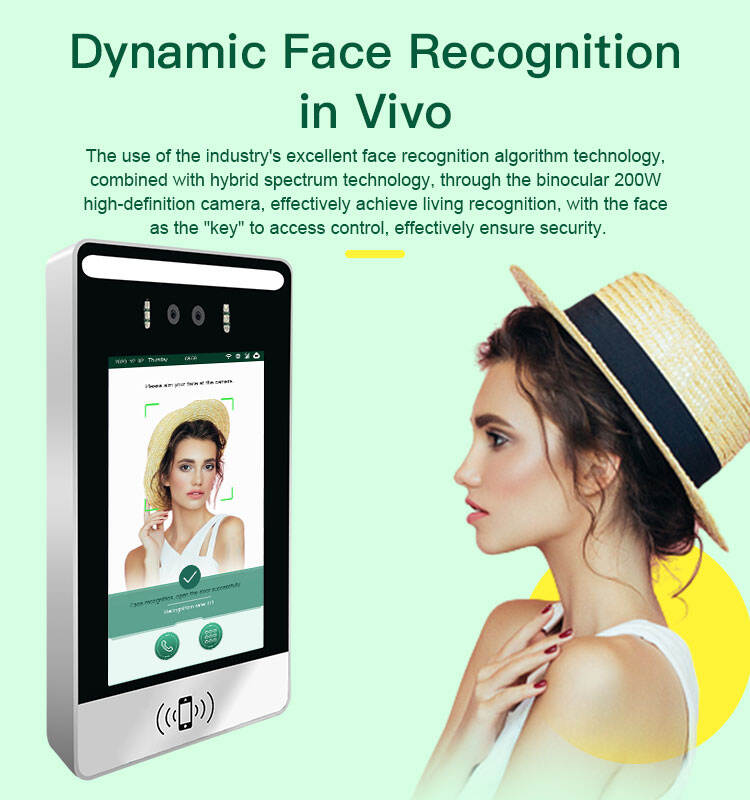

200W HDR binocular live, anti-counterfeiting and anti-counterfeiting;

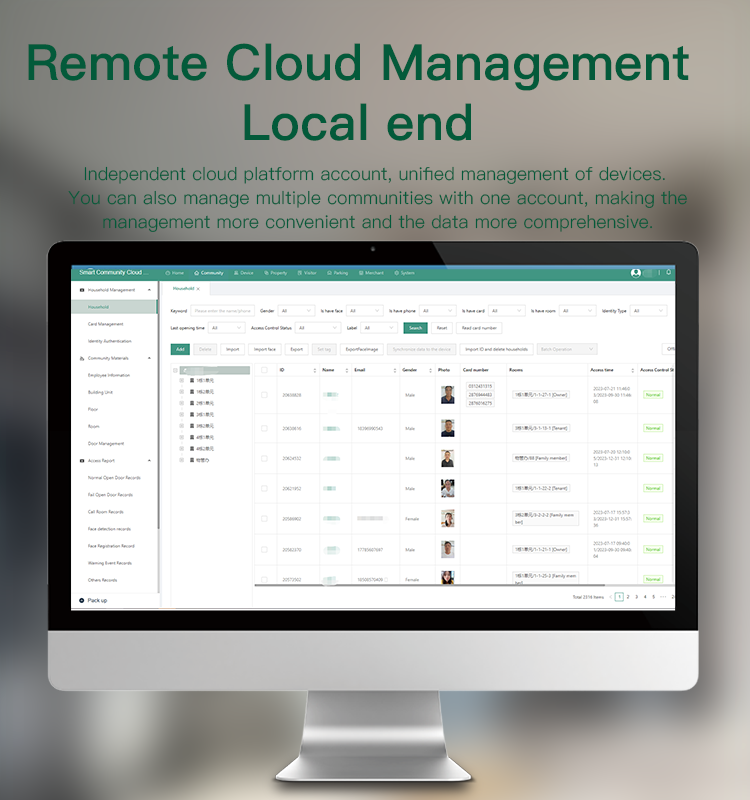

Remote cloud management to minimize on-site management;
Support security capture: video information collection and early warning of people entering and leaving;
Seiko built, the equipment dustproof grade up to IP54.
Community access control
Technology Building
Elevator control
Bank
Office area
Meeting
1) Support property payment, access control intercom, parking lot, charging pile, elevator control, visitors and operation management functions.
2) Unified management of millions of devices in the Internet of things and comprehensive cloud audio and video solutions.

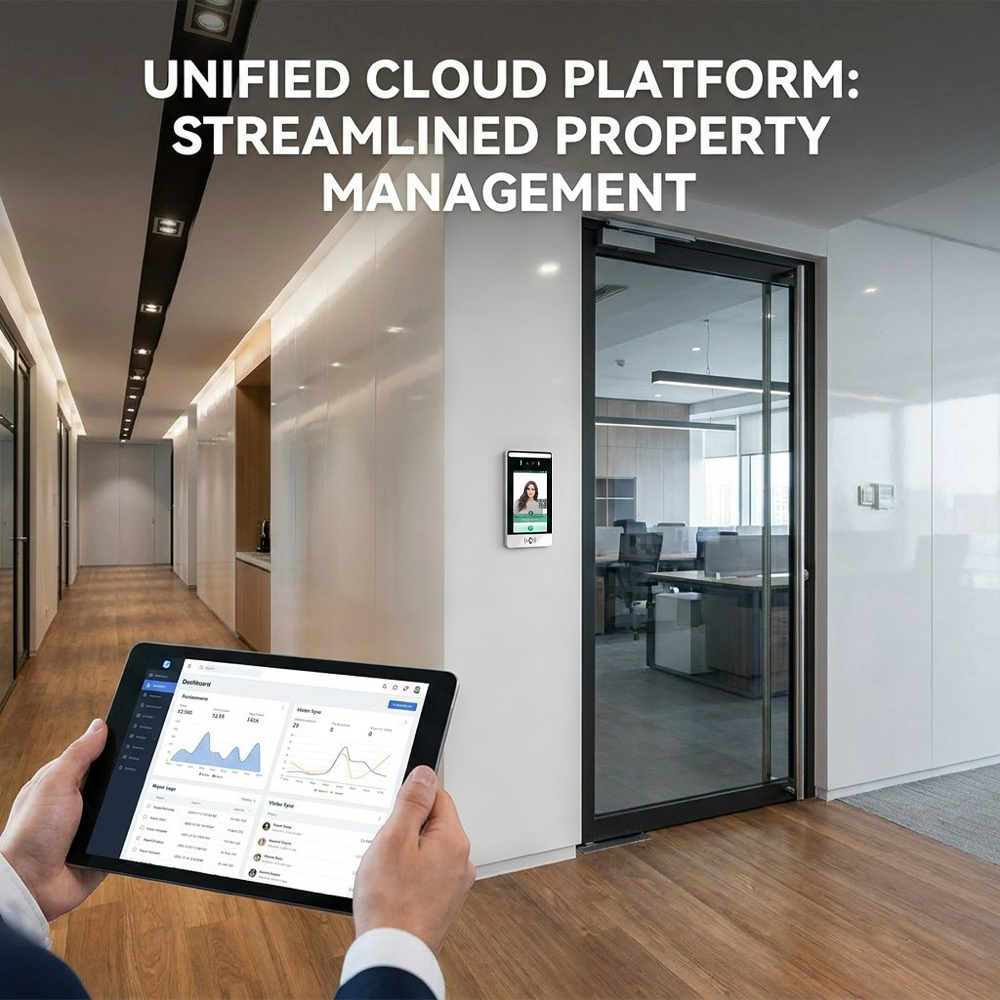

3) A unified platform that supports visual intercom, face recognition, cloud gate ban, parking lot, elevator control and monitoring.
4) Fully support property repair, payment and other functions to meet the transformation of property Internet +.
5) Mature API docking services to provide docking services to help the smart community park.
6) Reliable computing platform.
|
System |
Linux |
|
Mainchip |
1.2G |
|
NPU |
1T |
|
Screen |
7 inch,600*1024 |
|
Touch |
Full screen capacitive touch |
|
Memory |
512MB |
|
Storage |
8GB |
|
Camera |
Support digital intercom and cloud intercom |
|
Dialingmode |
Optional input room number, support one-click intercom doorbell, The function of dialing phone numbers can be customized |
|
Agreement |
SIP* |
|
Video |
H.264 |
|
Audio frequency |
PCMU |
|
Microphone |
Single microphone |
|
Horn |
8Ω2W |
|
Face capacity |
30,000 |
|
Card capacity |
100 Thousand |
|
Eventrecording |
300000 |
|
Radio frequencycard type |
IC(ISO14443A/B),Mifare/CPU |
|
Elevator controlfunction |
Support |
|
Witness identification |
Optional |
|

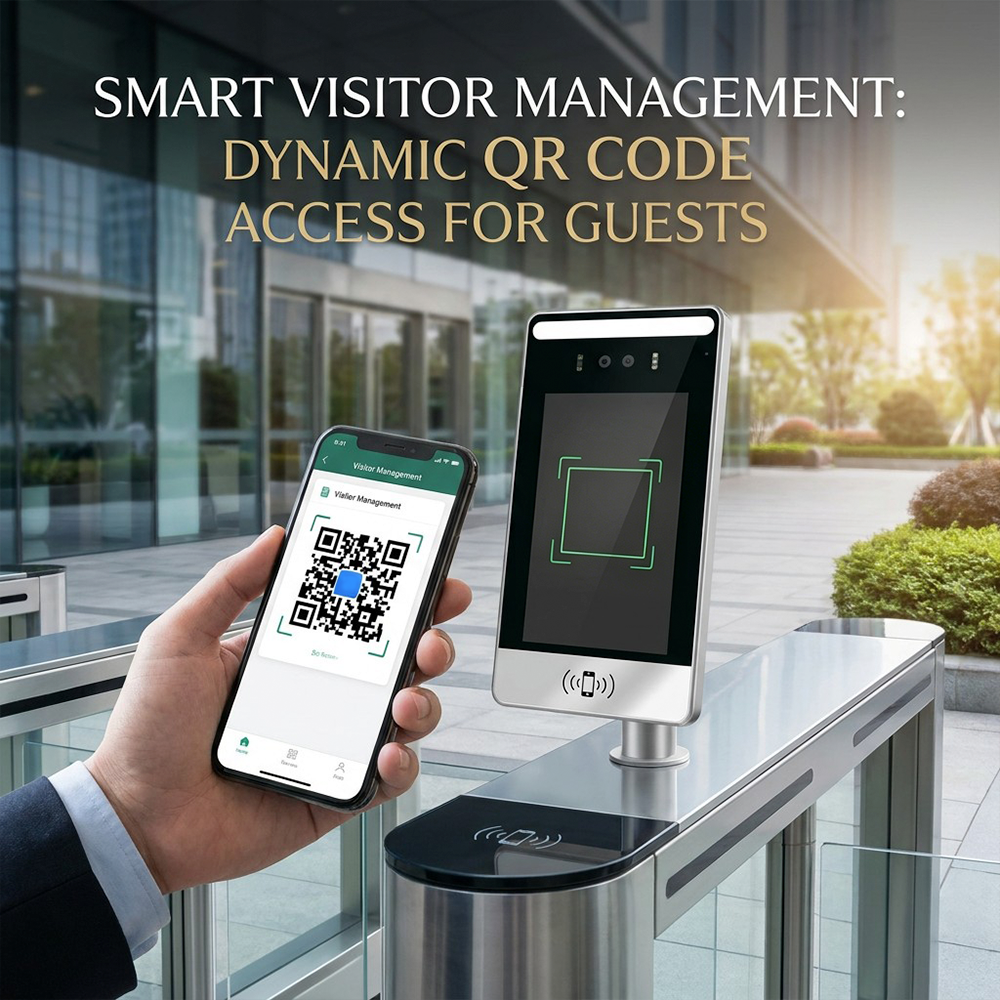

QRCode |
Optional |
|
External accesscontrolreader |
Support |
|
Wiegand output |
Support |
|
Way ofopeningthedoor |
Face recognition, mobile phone Bluetooth, remote, swipe card, optional palmprint unlocking |
|
Access controlperiod |
Support |
|
Normally open |
Support |
|
Bluetooth dooropening distance |
Barrier-free within 10 meters |
|
Communicationmode |
Standard Ethernet, optional 4G and WIFI |
|
Access control |
1door magnetic, 1unlocking relay, 1exit switch, 1Weigen input interface, |
|
function |
485 expansion interface |
|

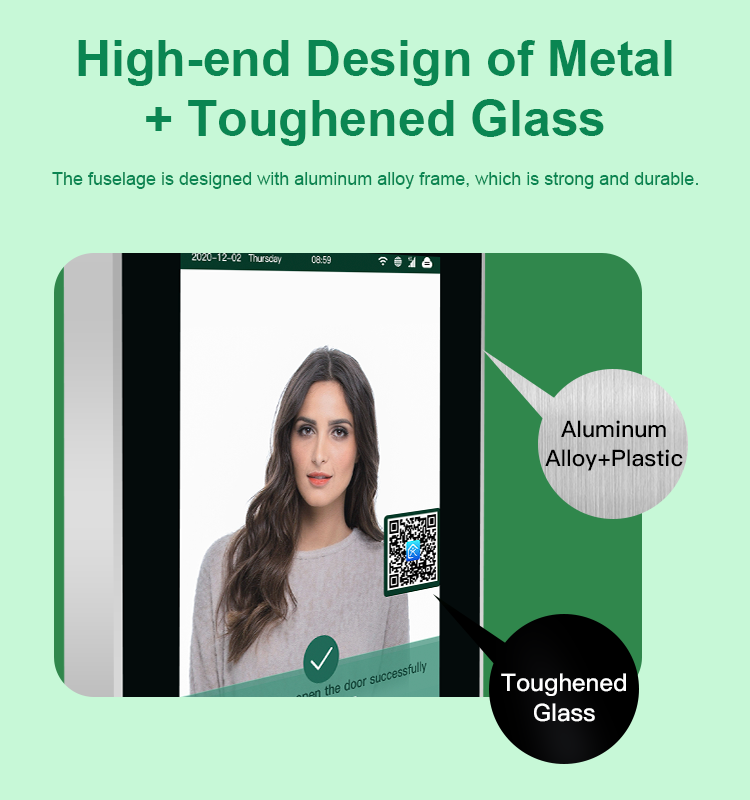

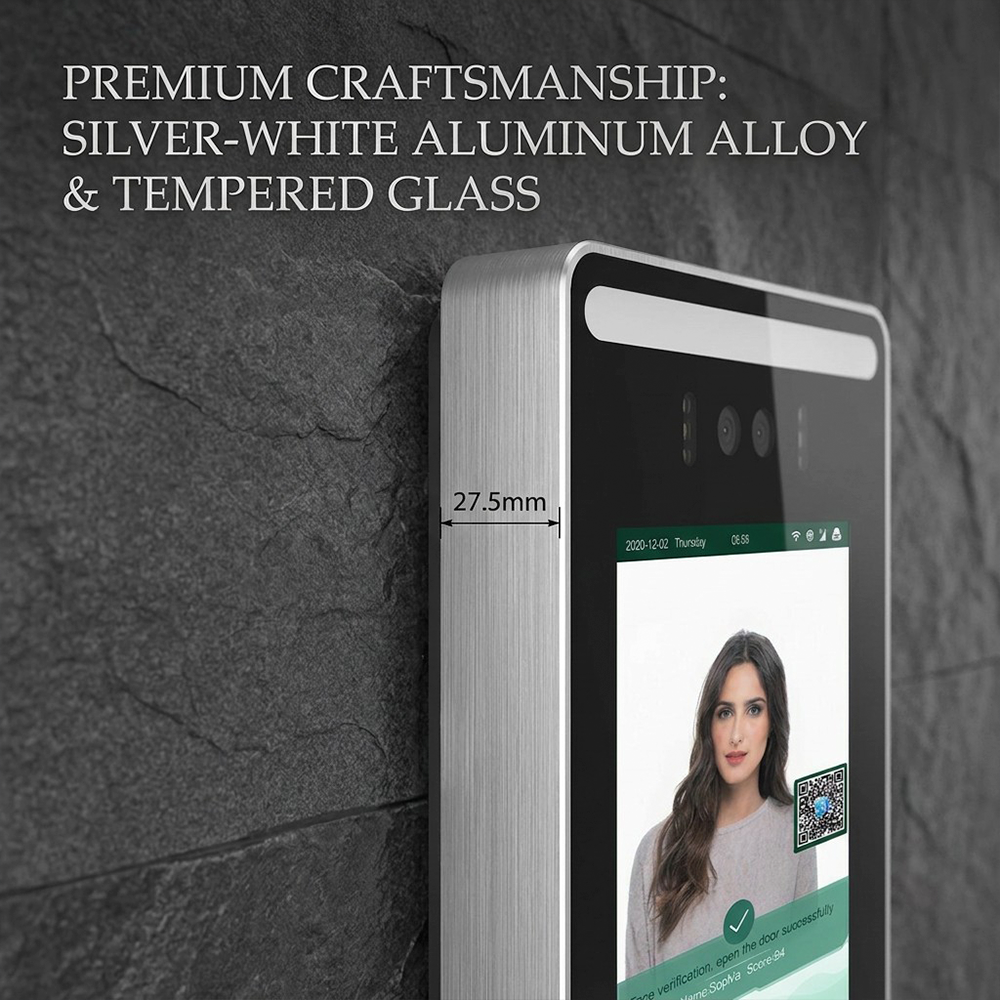

Shellmaterial |
Aluminum alloy + plastic |
|
Panelmaterial |
Toughened glass |
|

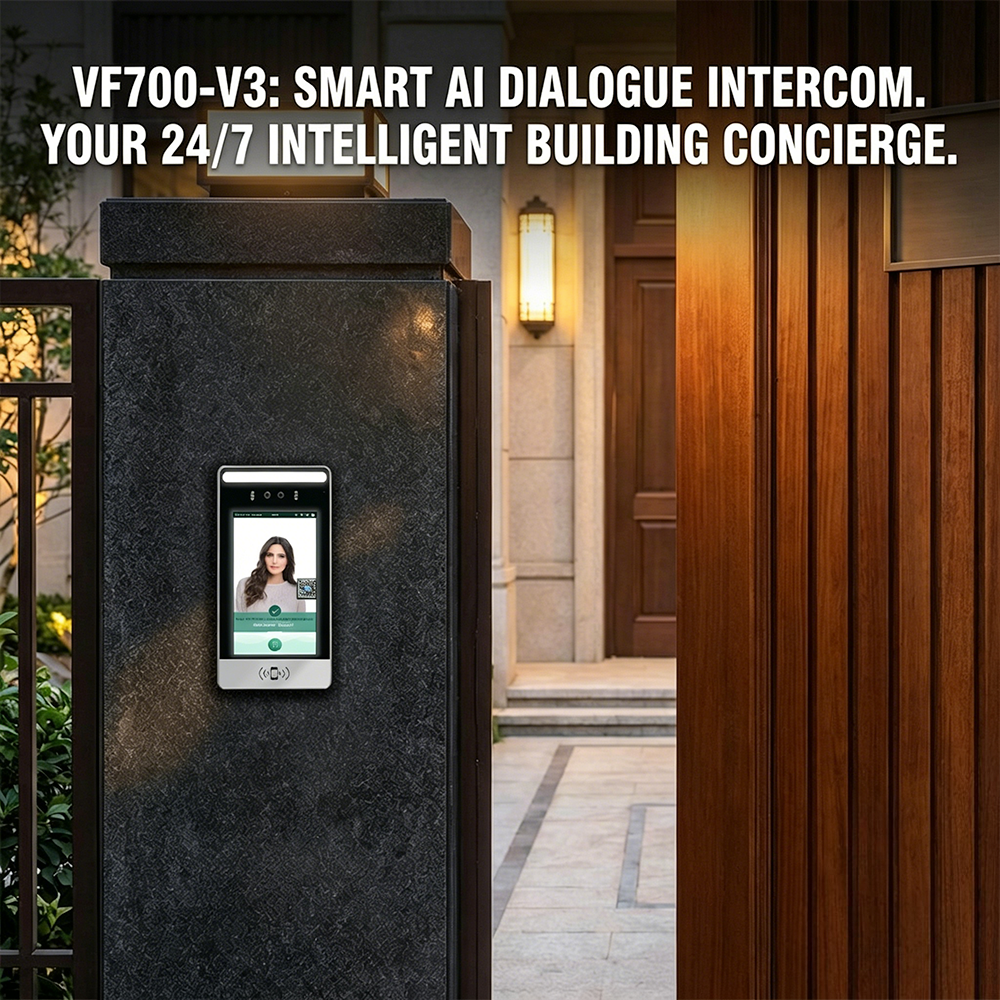

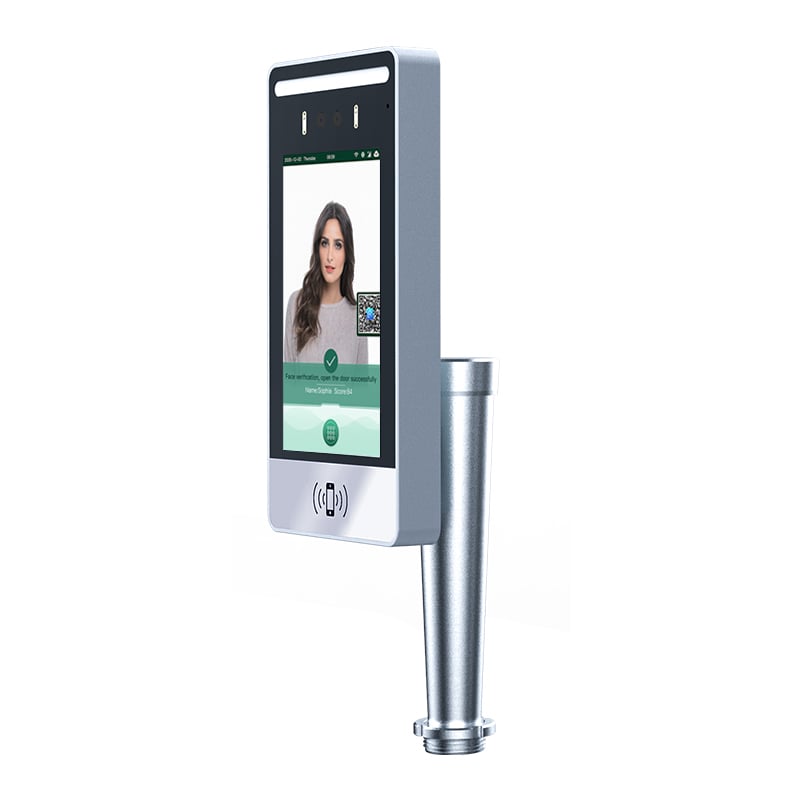

Installation mode |
Wall hanging, gate posts |
|
Device size |
245*123.3*27.5mm |

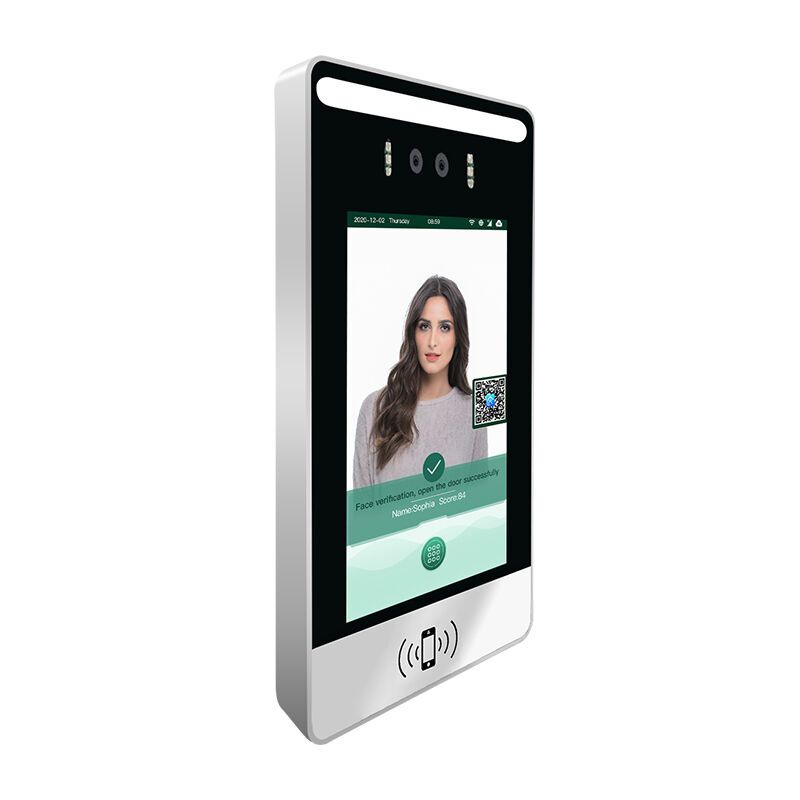

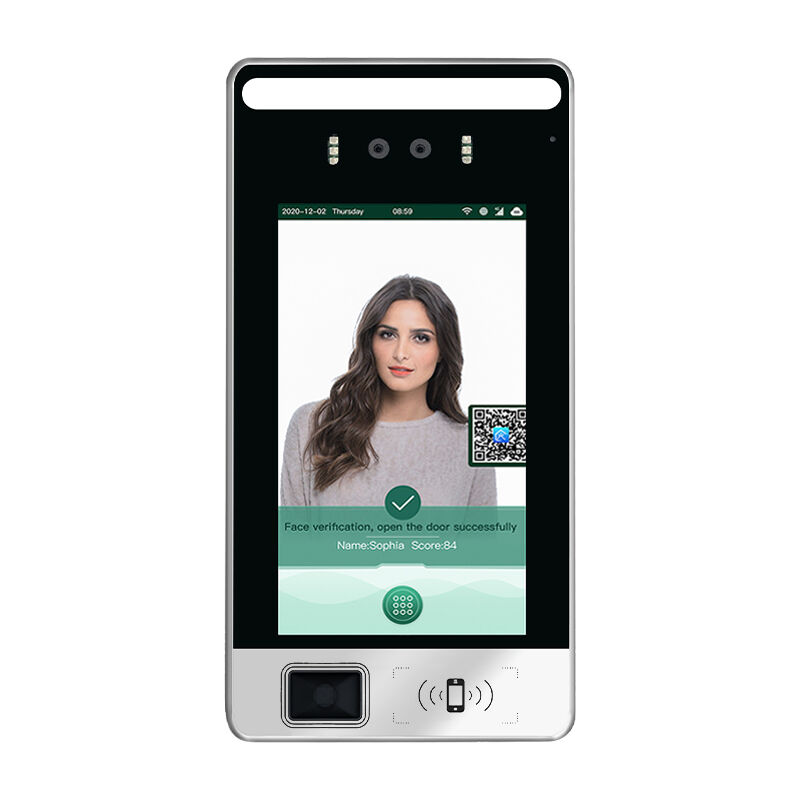

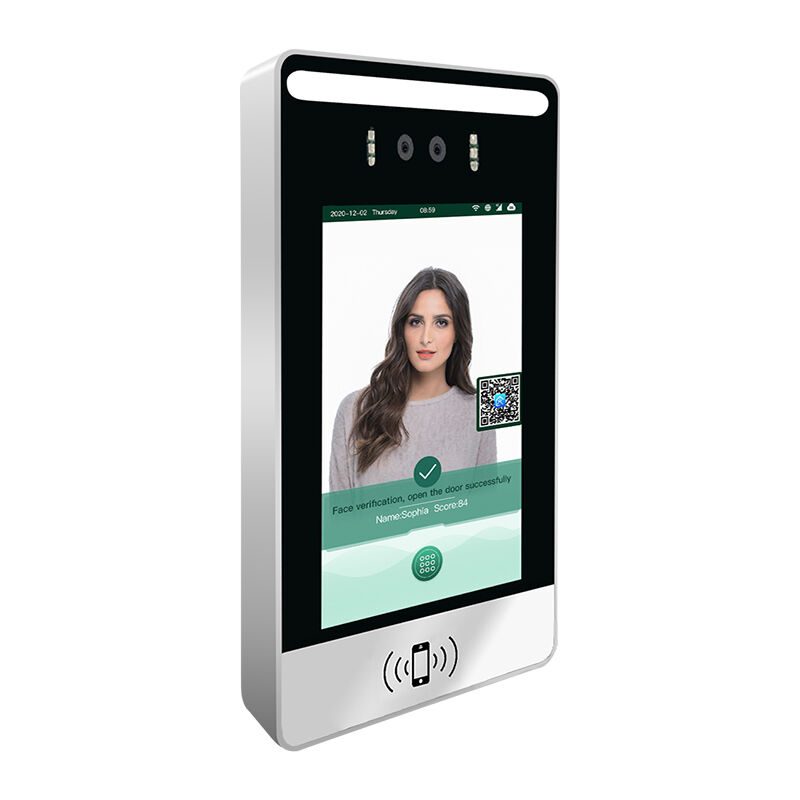

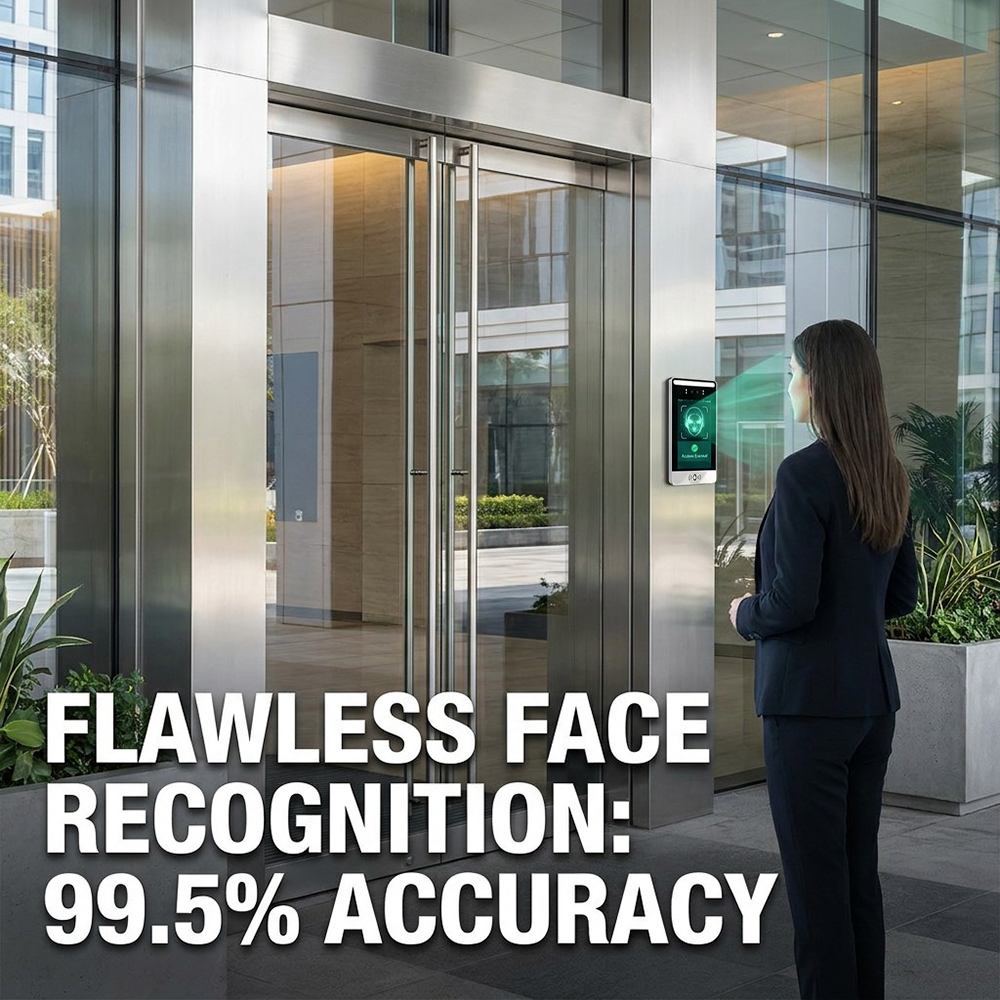

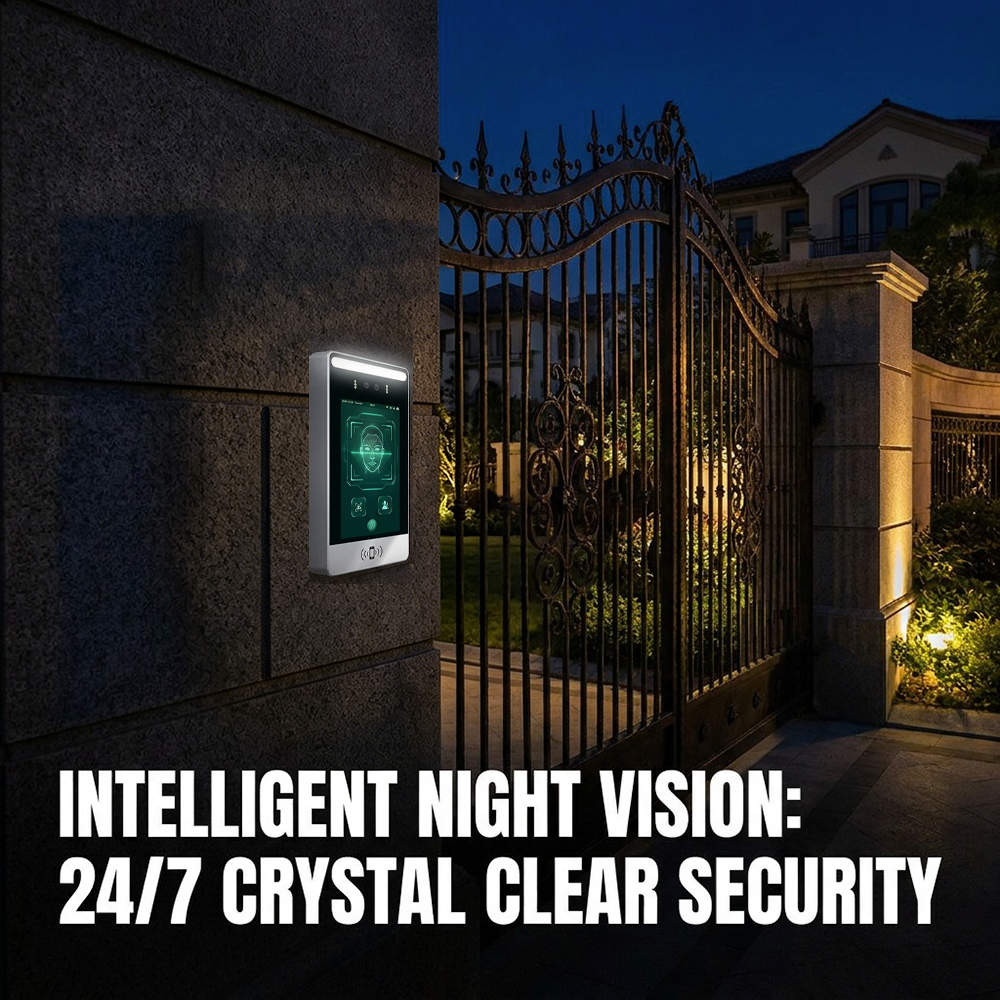

Face recognition visual intercom terminal is a high-performance, high-reliability face recognition visual intercom access control product, using high-performance CPU with NPU, deep learning algorithm, faster recognition speed and higher accuracy, support for face recognition, visual intercom, Bluetooth, IC card and other verification methods, 7-inch full HD touch screen, high screen share, compatible support wall, pillar installation. Mainly used in communities, parks, campuses, kindergartens, hospitals and other places.
