Visitor Information Registration
Access Control Automation
Face Detection and Recognition
1) Powerful Multi-Core Processors: Equipped with high-performance multi-core series processorsfrom Intel, Rockchip, and others.

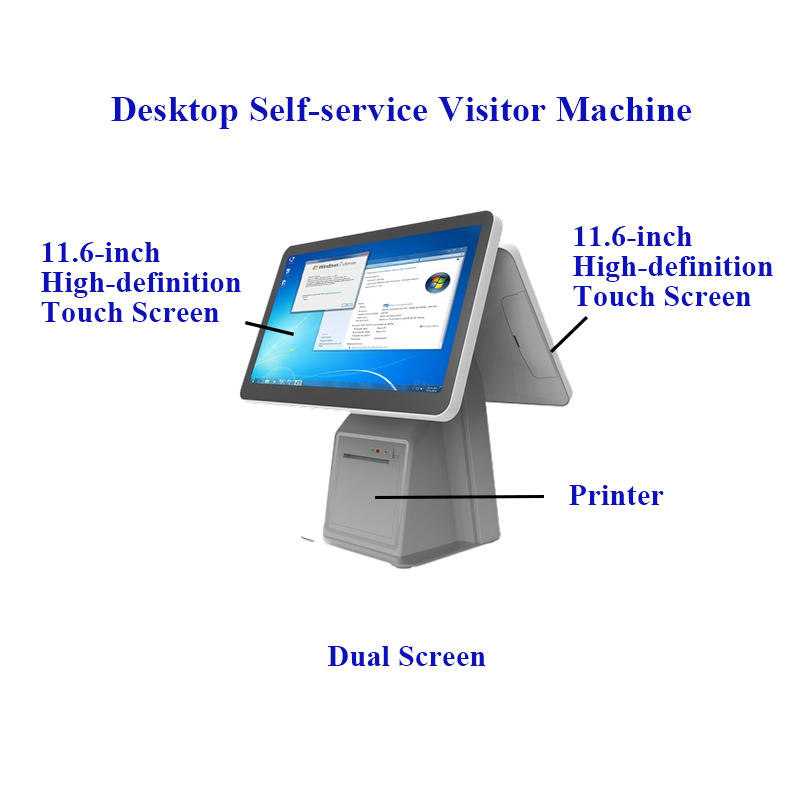

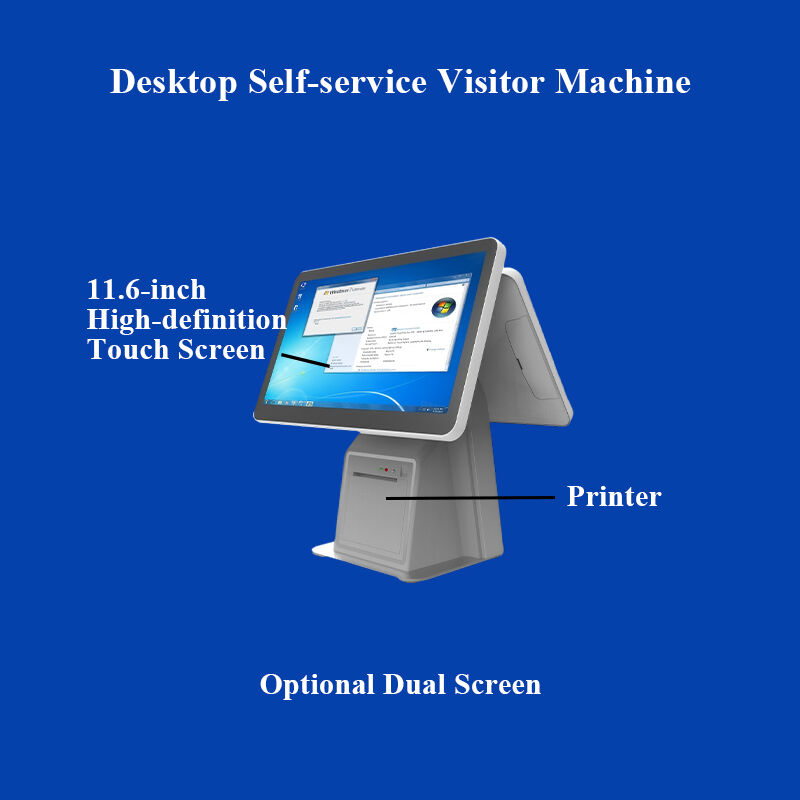

2) High-Definition Dual Screens: Features an 11.6-inch main screen (1366 x 768) and an 11.6-inchsecondary screen (1366 x 768).
3) Capacitive Multi-Touch Main Screen: The main screen supports 10-point capacitive touch, offeringa tablet-like interactive experience.
4) Versatile OS Support: Compatible with various operating systems including Win7,Win10, Win11,
Linux, and Android.
5) Optimized for Industry Applications: Ideally suited for attendance, visitor management,and otherspecialized software.
6) Flexible Configurations with High Performance: Offers multiple configuration options with
performance comparable to laptops.
7) 12V DC Power Input: Designed for convenient power integration in industrial environments.
8) 4K HDMI Display Support: Capable of driving external displays via HDMI up to 4K resolution.
9) Built-in PCI-E 4G Interface (Optional): Features a PCI-E slot compatible with 4G modules fromvendors like UG and Quectel for mobile internet connectivity
10) Dedicated Function Keys: Includes a power button and a dedicated bootloader upgrade button.
11) Extensive Touchscreen & Peripheral Compatibility: Fully supports mainstream capacitive and resistive touchscreens, along with drivers for common peripherals.
12) Comprehensive Connectivity: Integrated support for WiFi, Bluetooth, and Ethernet.
|
Optional Colors |
Black / White |
|
|
Optional Peripherals |
Printer, Scanner |
|
|
Wireless Communication |
Wi-Fi, Bluetooth (built-in on Android, optional for Windows systems), and 3G/4G (optional feature) |
|
|
Optional Built-in Devices |
ID Card Reader, Facial Recognition Camera, Scanner, Card Reader, Fingerprint Module |
|
|
CPU |
J4125 (default) / J6412 Core i3/i5/i7 (optional) |
RK3568 /RK3588 |
|
Memory Support |
DDR3/DDR4 4GB (default) / 8GB / 16GB / 32GB (optional) |
RAM 2GB (default) 4GB / 8GB (optional) |
|
Storage Support |
64GB (default) / 128GB / 256GB / 512GB (optional) High-Speed SSD |
16GB (default) / 32GB / 128GB (optional) High-Speed SSD |
|
Display Panel Size |
Dual 11.6-inch TFT LED Screens |
|
|
Resolution |
1366*768 |
|
|
Brightness |
220-250 cd/m² |
|
|
Touch |
10-Point Capacitive Touchscreen (default) |
|
|
Touch Response |
8ms |
|
|
Viewing Angle |
Horizontal: 40~45(θx+),40~45(θx-) Vertical: 15~20(θx+),30~40(θx-) |
|
|
I/O Ports |
DC Power Jack*1 |
DC Power Jack*1 |
|
Serial Port*1 |
Serial Port*1 |
|
|
VGA (15Pin D-sub)*1 HDMI*1（Core Series） |
Cash Drawer Port RJ11*1 |
|
|
Ethernet Port:RJ-45*1 |
Ethernet Port:RJ-45*1 |
|
|
USB(2.0)*4 USB(3.0)*2 (Varies depending on mainboard specifications) |
USB(2.0)*4 |
|
|
Audio Out*1 Mic In*1 |
Audio Out*1 SIM Card Slot*1 |
|
|
Operating Temperature |
0℃ to 40℃ |
|
|
Storage Temperature |
-20℃ to 60℃ |
|
|
Power |
60W(max) |
|
|
Camera |
Mono/Binocular Facial Recognition Camera |
|
|
ID Recognition |
Ministry of Public Security Certified ID Card Reader |
|
|
Operating System |
win7/8/10 linux |
Android 7.1 / 11 / 12 |
|
Adapter |
200-240V/50-60Hz AC Input, DC12V/8A Output |
|
|
Package Dimensions |
46*30*48CM(Single Unit) |
|
|
63*48*51CM(Two Units) |
||
|
Package Weight |
7.6KG(Single Unit) |
|
|
16KG(Two Units) |
||
