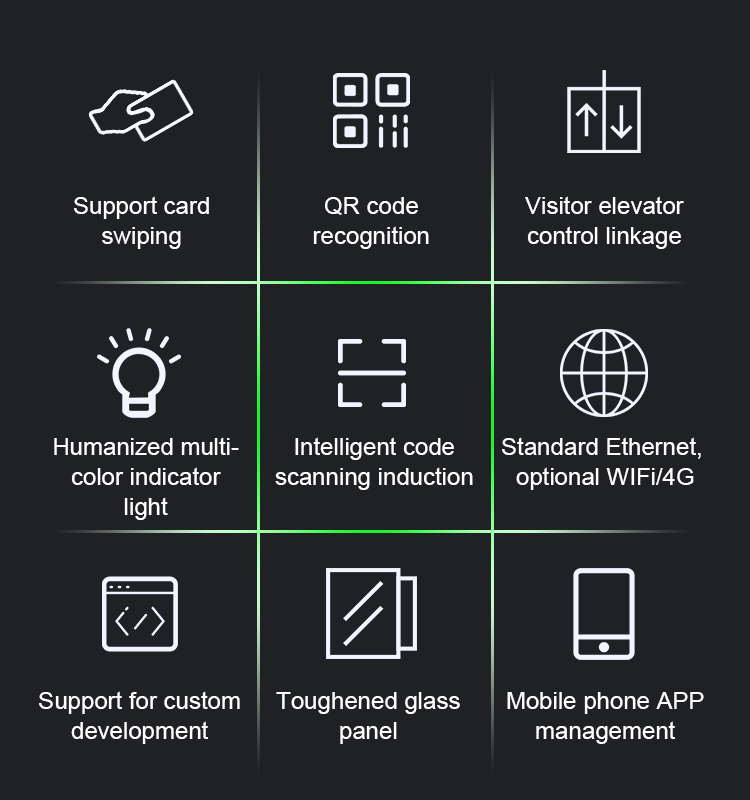

QR Code Recognition
Humanized Multi- color Indicator Light
Intelligent Code Scanning Induction
Visitor Elevator Control Linkage
Standard Ethemet, Optional WiFi
1) The device integrates the functions of QR code, Bluetooth, card swiping and password access control, and has a new technology experience.

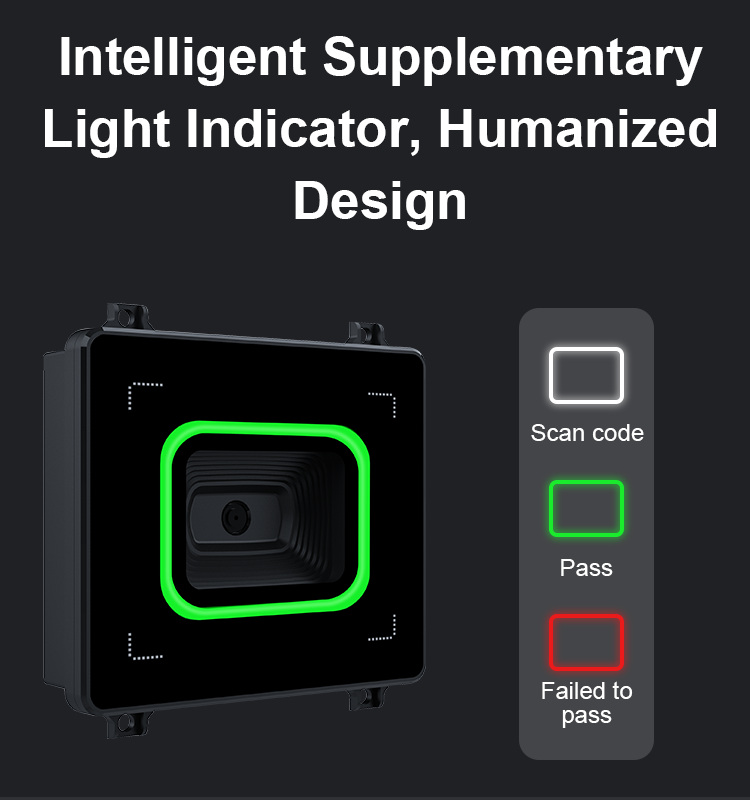

2) Intelligent supplementary light indicator, humanized design.

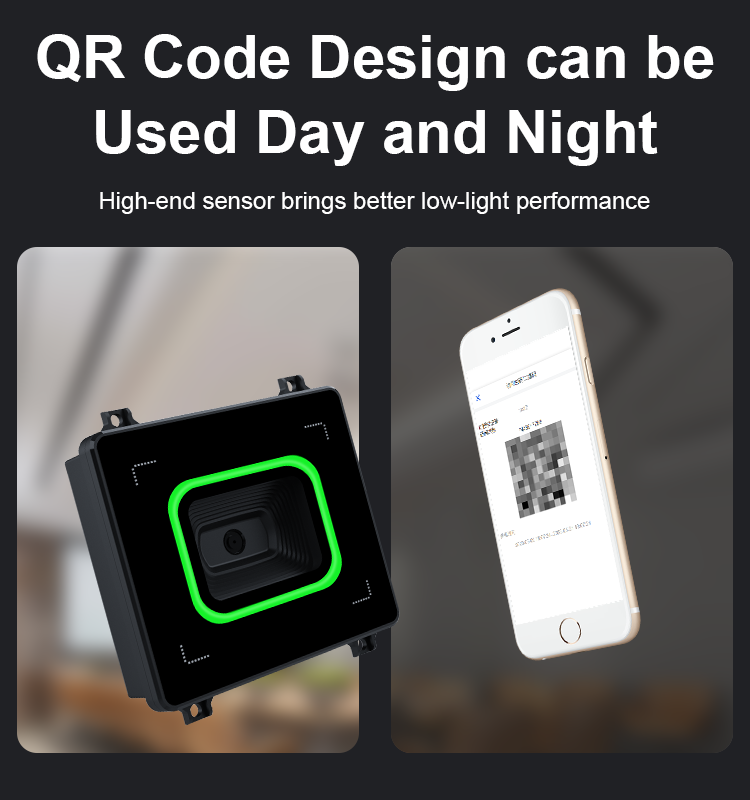

3) QR code design can be used day and night to bring better dark light performance.
4) High performance and large capacity: the main frequency ofCPU is up to 1.5G, and the card capacity is up to 100000.

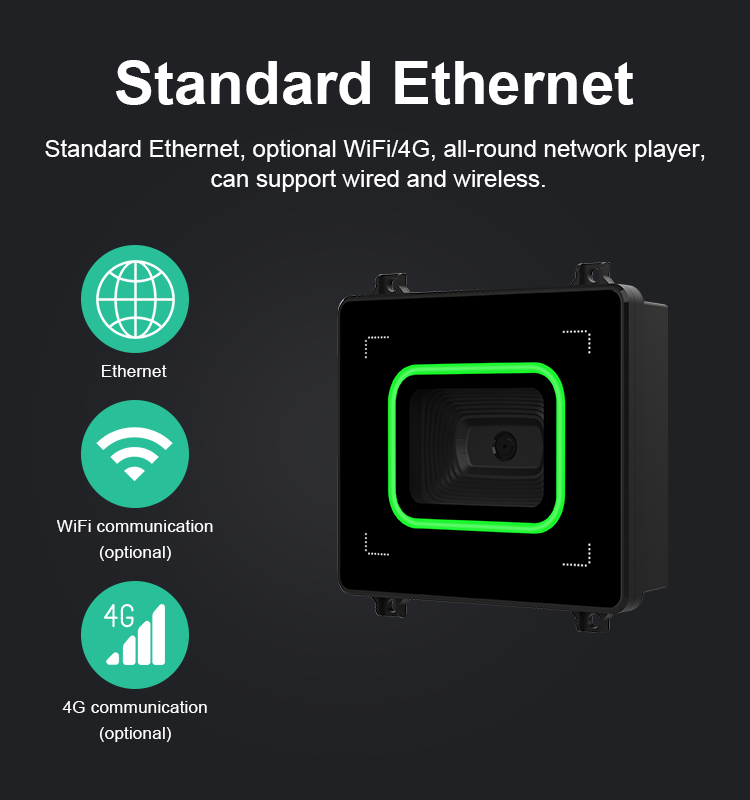

5) Ethernet is standard and can be used offline.
6) Equipment waterproof grade IP65.
7) Support the time period function of professional access control.
8) Mobile APP mobile terminal management.
1) Unified management of millions of devices in the Internet of things, fully supporting cloud audio and video solutions.
2) Integrated unified platform for visual intercom, face recognition access control, cloud gate control, parking lot, Elevator control, monitoring and charging.
3) Real-time event recording, mass storage support.
4) Mature API docking service to help the scene land.
5) Stable and scalable service capability.
6) Secure and reliable system platform.
|
Main chip |
Main frequency 1.5G |
|
Memory |
128MB |
|
Storage |
128MB |
|
Door opening verification mode |
QR Code, Card, Remote |
|
Radio frequency card type |
IC (ISO144443A/B), ID optional support |
|
Networking mode |
Ethernet |
|
Card capacity |
100000 |
|
Bluetooth door opening distance |
Barrier-free within 10 meters |
|
Camera |
200W |
|
Supplementary lamp |
White light supplementary lamp |
|
Cue lamp |
Red, green and white cue lights |
|

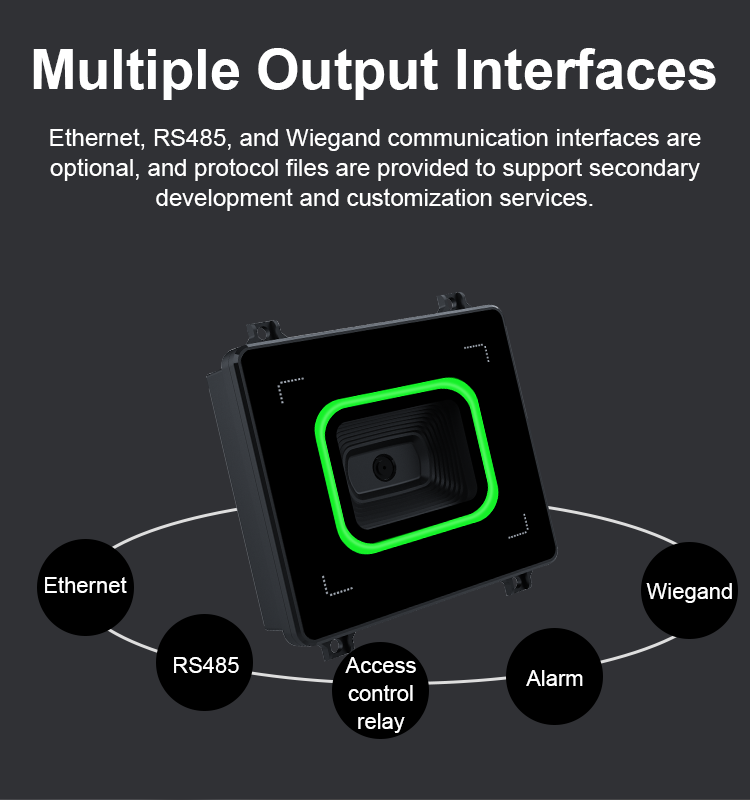

Access control input and output |
All the way out the door switch, one door magnetic input and one door output |
|
Alarm input |
1-way alarm input |
|
Weigen interface |
1-way Weigen output interface |
|
RS485 interface |
1-way RS485 interface, optional configuration for ladder control linkage |
|
Waterproof grade |
IP65 outdoor waterproofing |
|
Operating temperature |
-30℃~70℃ |
|
Working humidity |
10-90% |
|
POE standard |
International standard POE IEEE802.3 af/at, non-standard 48V POE |
|
POE power |
Conventional 20W, maximum 24W |
|
Network transmission medium |
Class 10/100/1000BASE-TX:5 and above unshielded twisted pair |
|
Network signal distance |
Receive and transmit ≤ 250m |
|
Power specification |
12V/2A |
|
Equipment size |
86*86*32mm |

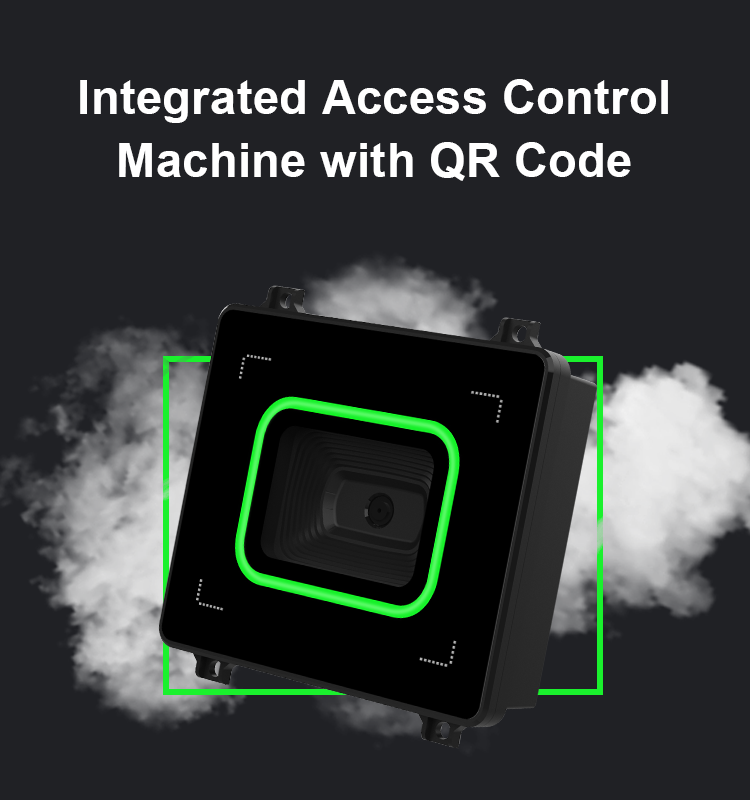

The QR code access control integrated machine is an access control device designed for office visitors, which supports QR code, card swiping and Bluetooth. It can be used in passageways, access guards and elevators, and can verify the entry and exit of employees,
owners and visitors. Through the Internet, the Internet of things advanced technology, to achieve convenient access experience; support networking, offline QR code recognition. Intelligent code scanning sensor, suitable for office, building, office building, community,
shared space, apartment, rental housing and other scenes.
