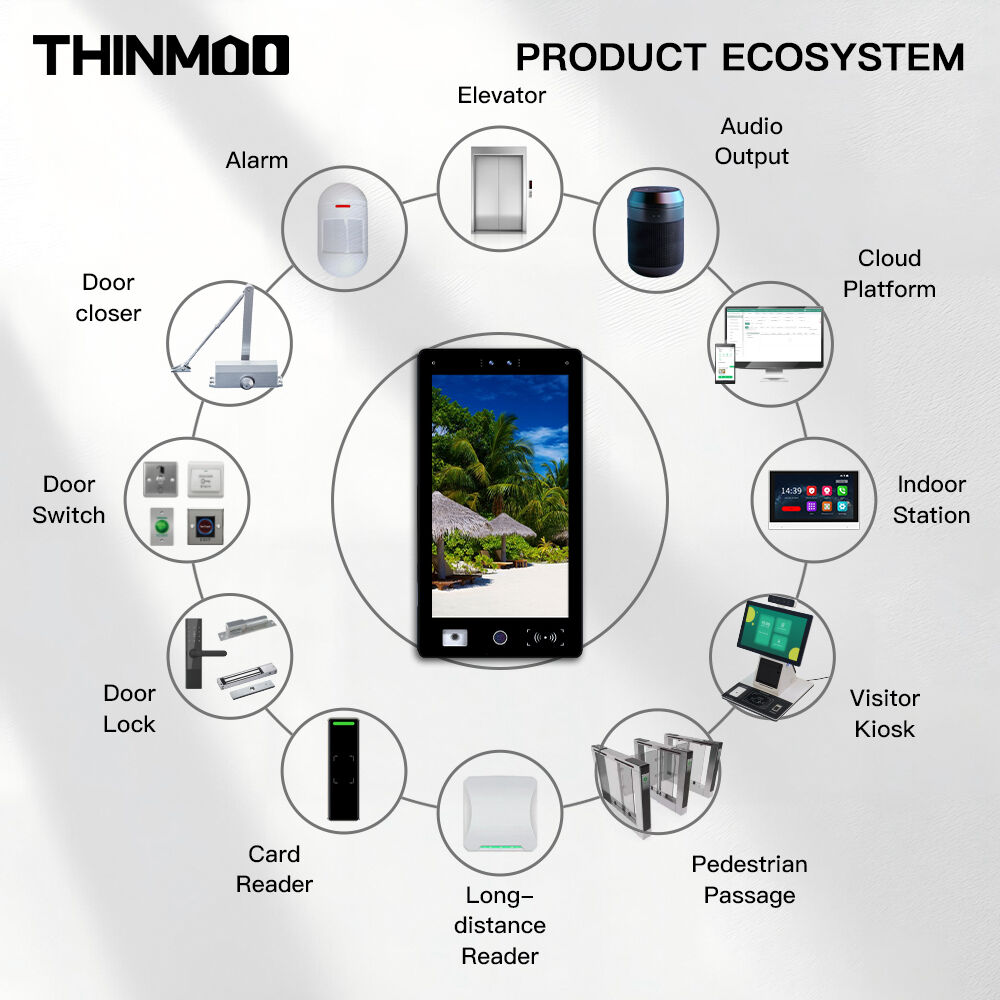

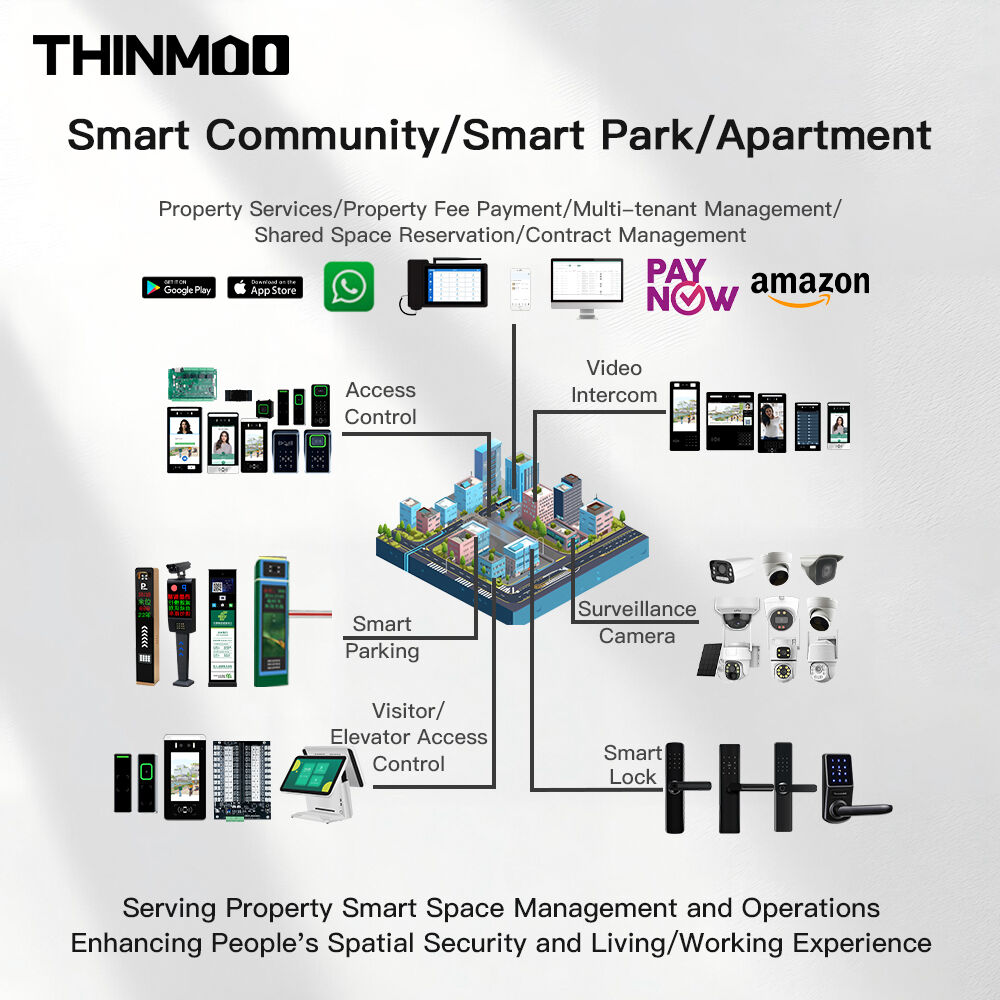

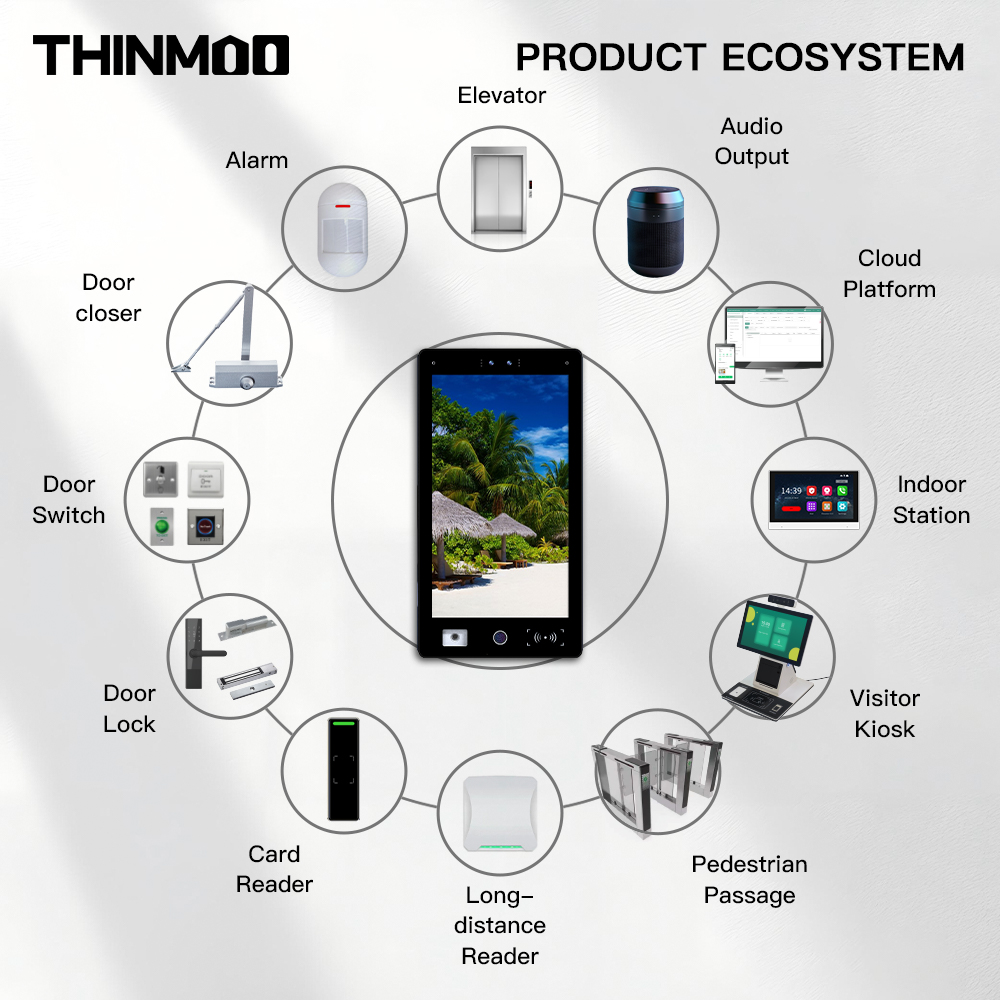

1) A unified platform integrating visual intercom, facial recognition access control, cloud access control, parking management, elevator control, and surveillance;
2) Unified management of millions of IoT devices, comprehensive cloud audio and video solutions;
3) Terminal access for tens of thousands, load balancing, ultra-fast network;
4) Fully supports property maintenance, payment functions, meeting the Internet+ transformation of property management;
5) Real-time event logging, massive storage support, photo capture;
6) Mature API integration services, providing integration services to assist smart communities;
7) Cloud advertising management, various strategies such as resuming transmission from breakpoints to ensure the secure distribution of advertising content.
|
System
|
Android
|
|
Main chip
|
Quad-core A55.2.0G
|
|
NPU
|
1T
|
|
Screen size
|
15.6 inches, 1080*1280
|
|
Touch
|
Optional full-screen capacitive touch or tactile buttons
|
|
Internal storage
|
2G
|
|
Memory
|
16G
|
|
Camera
|
Dual 2MP camera with wide dynamic range and anti-backlight
|
|
Video intercom
|
Supports digital intercom and cloud intercom
|
|
Dial mode
|
You can enter the room number, click the room list directly, or
use the one-touch intercom doorbell and phone number dialing
|
|
Protocol
|
SIP
|
|
Video frequency
|
H.264
|
|
Audio frequency
|
PCMU
|
|
Microphone
|
Digital microphone
|
|
Suona
|
8Ω2W
|
|
Face capacity
|
3 ten-thousand
|
|
Storage capacity
|
100,000
|
|
RF card type
|
IC（ISO14443A/B)，Mifare/CPU
|
|
Threshold control function
|
Support
|
|
Person identification
|
Selectable
|
|
Two-dimension code
|
Selectable
|
|
Fingerprint identification
|
Selectable
|
|
External access head
|
Support
|
|
Wiegand output
|
Support
|
|
Opening method
|
Face recognition, mobile Bluetooth, fingerprint recognition, QR code, remote door opening, and card swipe door opening are available
|
| Access control time period |
Support
|
|
Normally open
|
Support
|
|
Combination verification
|
Face + Card/Multi-person Combination Verification
|
|
Bluetooth opening distance
|
Within 10 meters of accessibility
|
|
Communication mode
|
Standard features include Ethernet and Wi-Fi, with 4G optional
|
|
Access control function
|
1 door magnetic sensor, 1 lock release relay, 1 exit switch, 1
Wegener input interface, 485 expansion interface
|
|
Incident record
|
300,000
|
|
Sheathing material
|
Alufer
|
|
Panel material
|
Armoured glass
|
|
Way to install
|
Wall-mounted, column
|
|
Protocol
|
MQTT
|
|
Rain cover
|
Selectable
|
|
Lock
|
Selectable
|
|
Source
|
Selectable
|
|
Door switch
|
Selectable
|
|
Upright column
|
Selectable
|

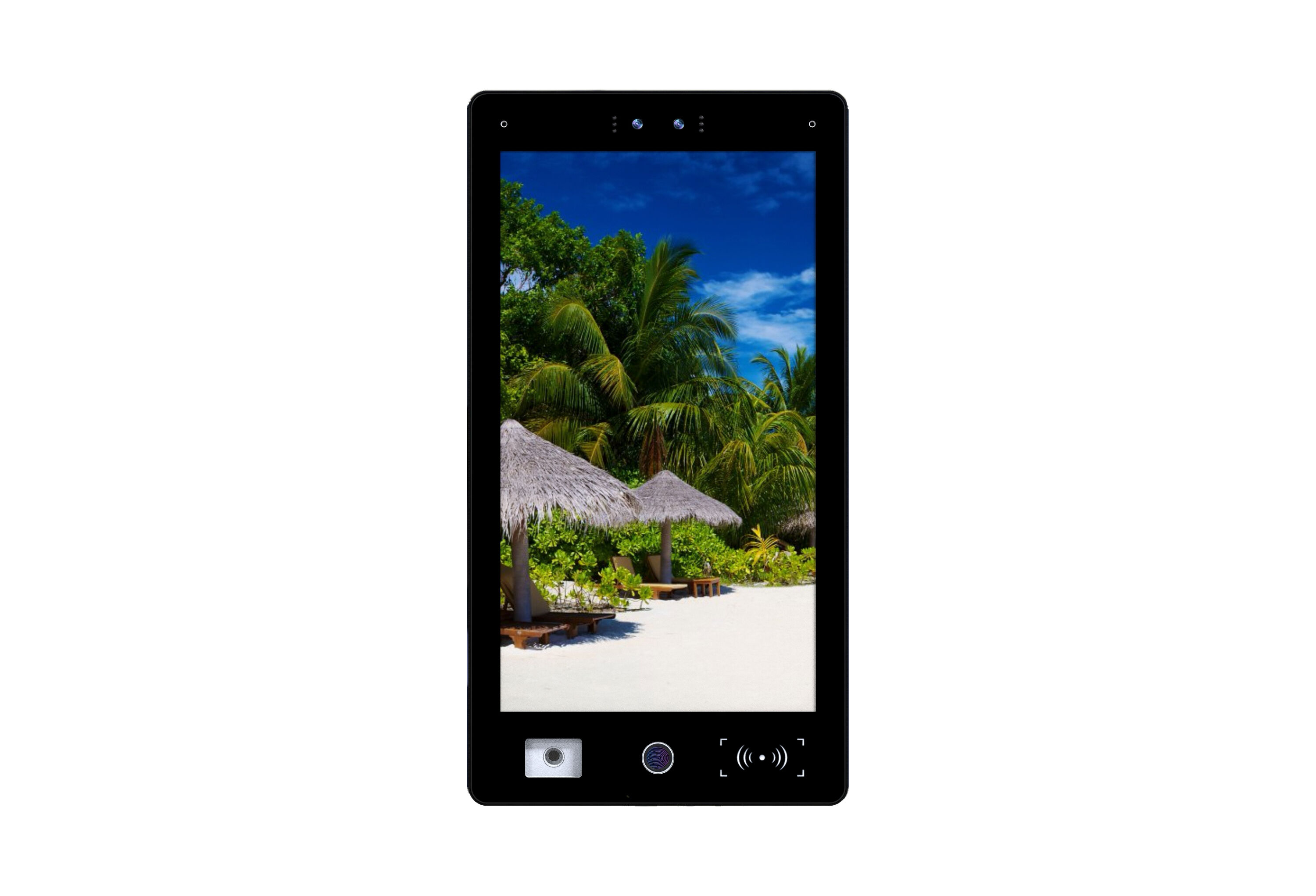

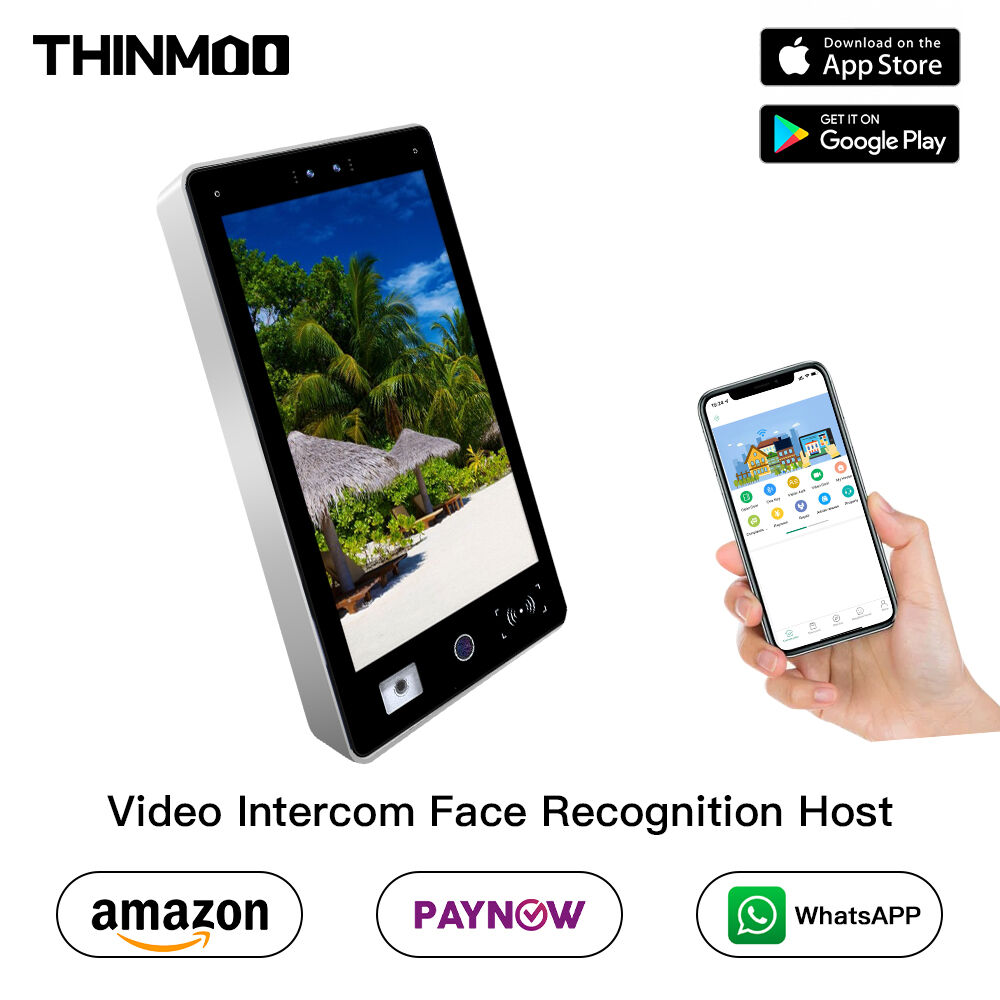

The VF736 Facial Recognition Video Intercom Terminal is a cost-effective and highly reliable facial recognition solution.Built on Android, it supports multimedia playback including video and images, featuring a 2.0GHz processor and 1TB computing power. This access control can utilize AI large language model dialogue, supports DeepSeek large language model and proprietary knowledge base functions, equipped with deep learning algorithms, it delivers rapid and accurate recognition while maintaining ultralow power consumption and zero heat generation. Supporting multiple authentication methods such as facial recognition, fingerprint, QR code, Bluetooth, and IC card, it boasts a 15.6-inch full HD display with a high screen-to-body ratio. Designed for wall-mounted or embedded installation, it is ideal for use in communities, industrial parks, campuses, kindergartens, hospitals, and other public spaces.
