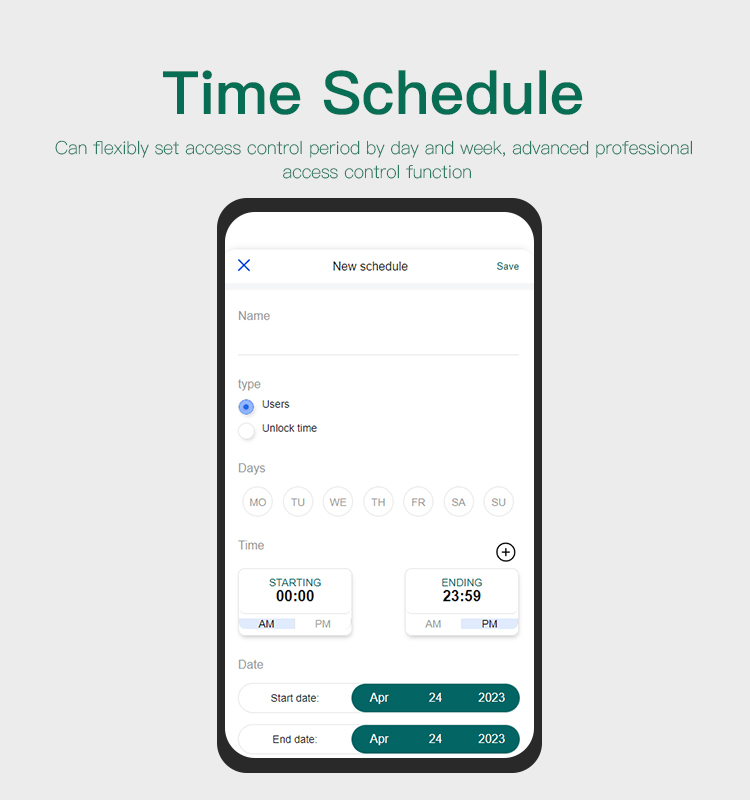

Time Schedule
High Safety Anti-magnetic Solid State Rely

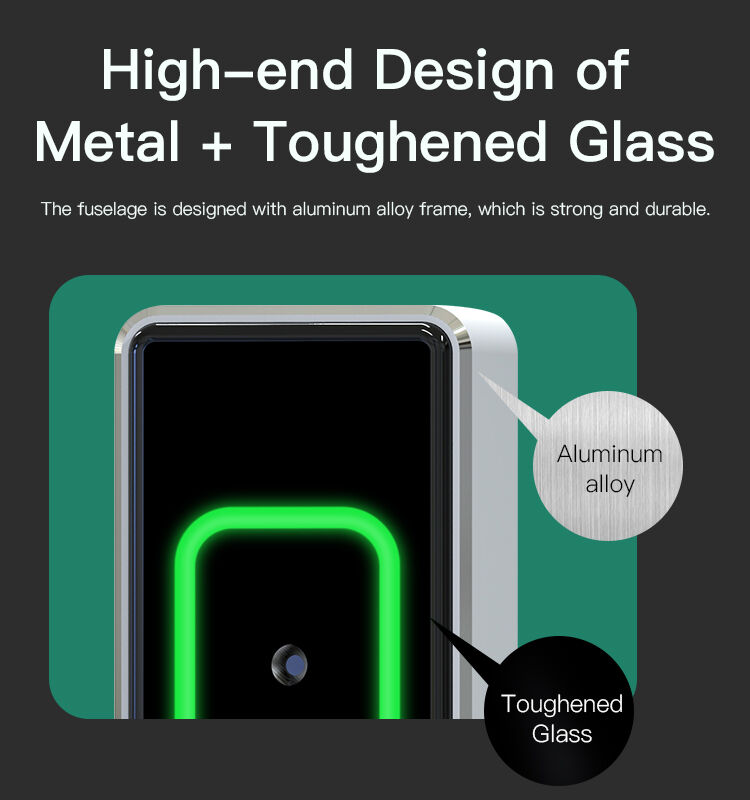

Aluminum Alloy +2.5D Tempered glass

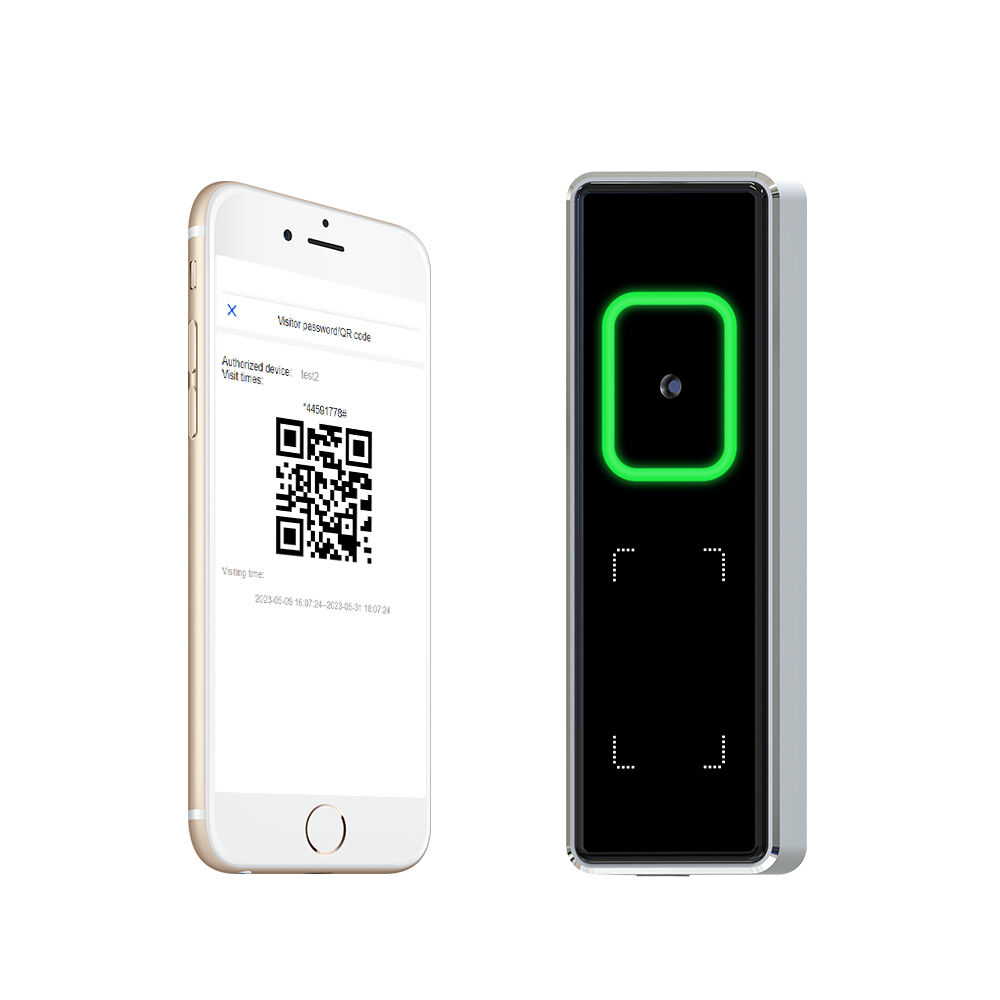

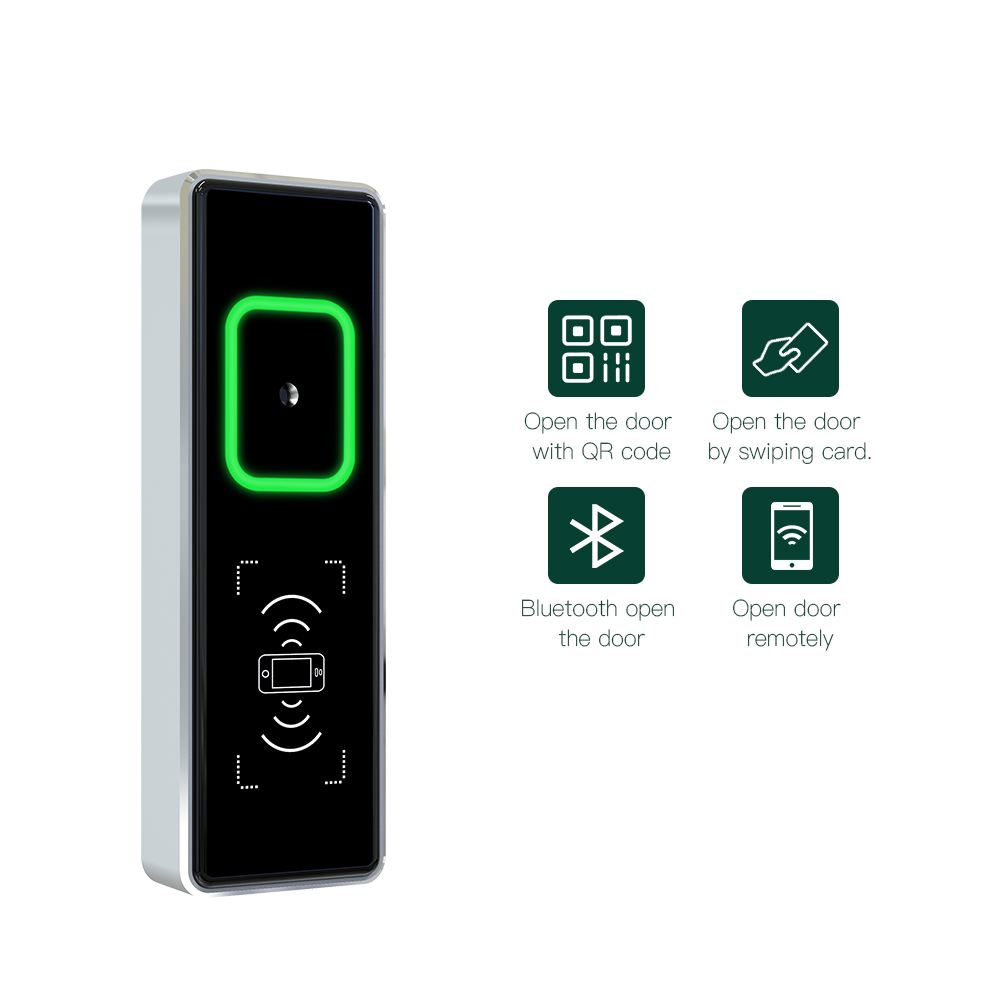

QR Code Open Door
Bluetooth Open Door
Waterproof
APP Management

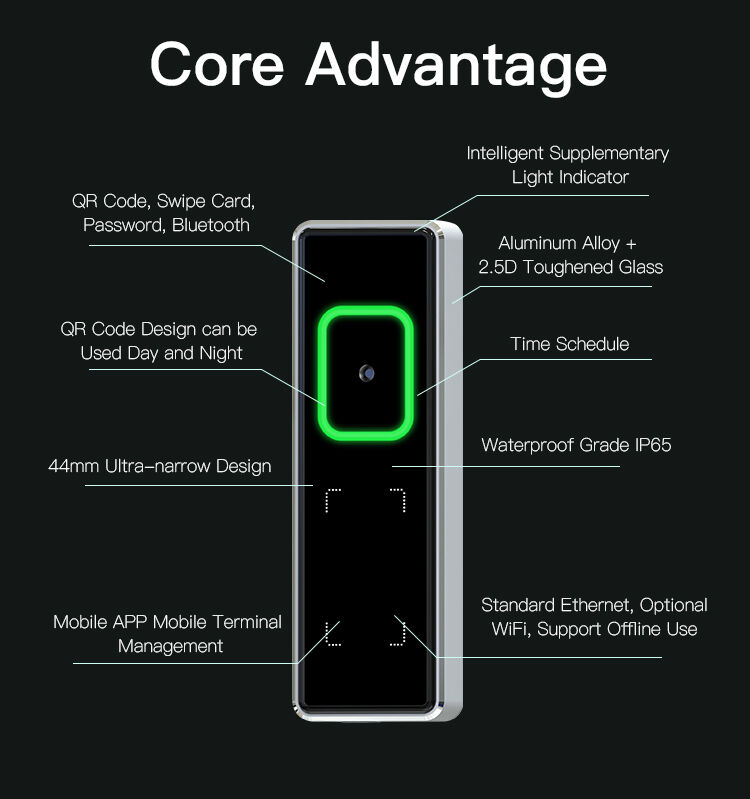

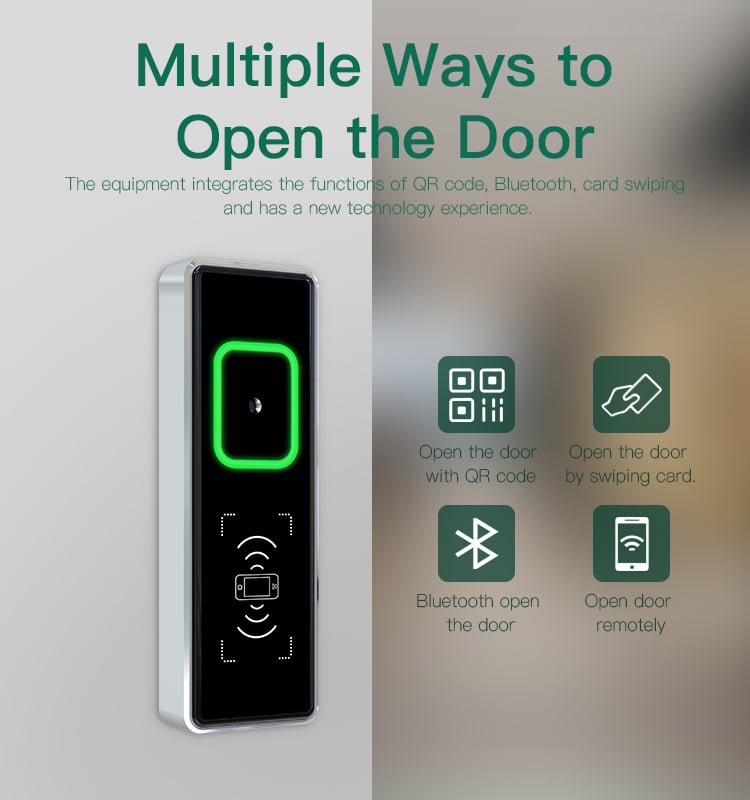

1) It integrates cloud QR code (optional), card swiping, Bluetooth, elevator control (optional) access control function..

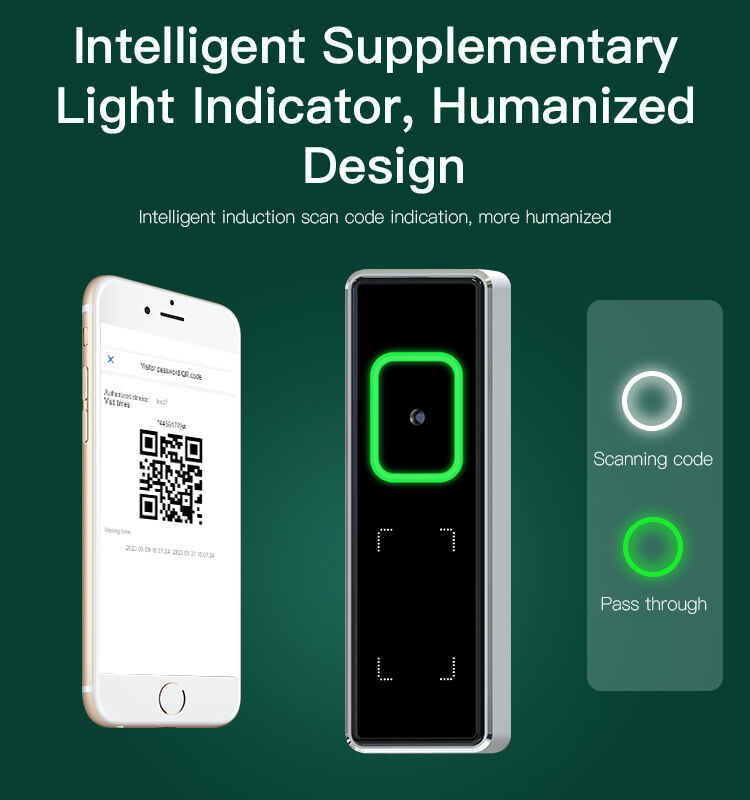

2) Intelligent supplementary light indicator, humanized design.

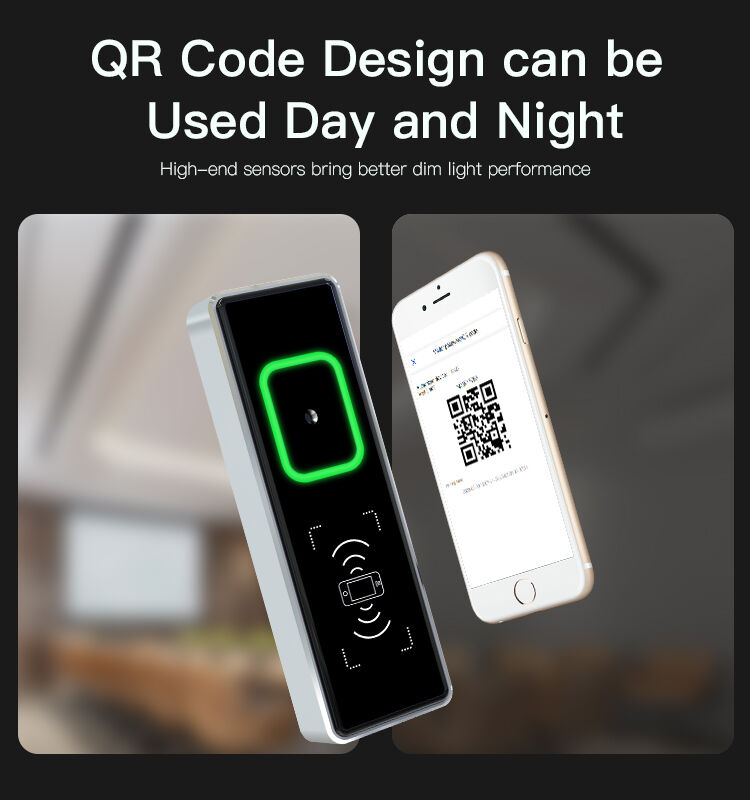

3) QR code design is available day and night: high-end CMOS, bringing better dim light performance.

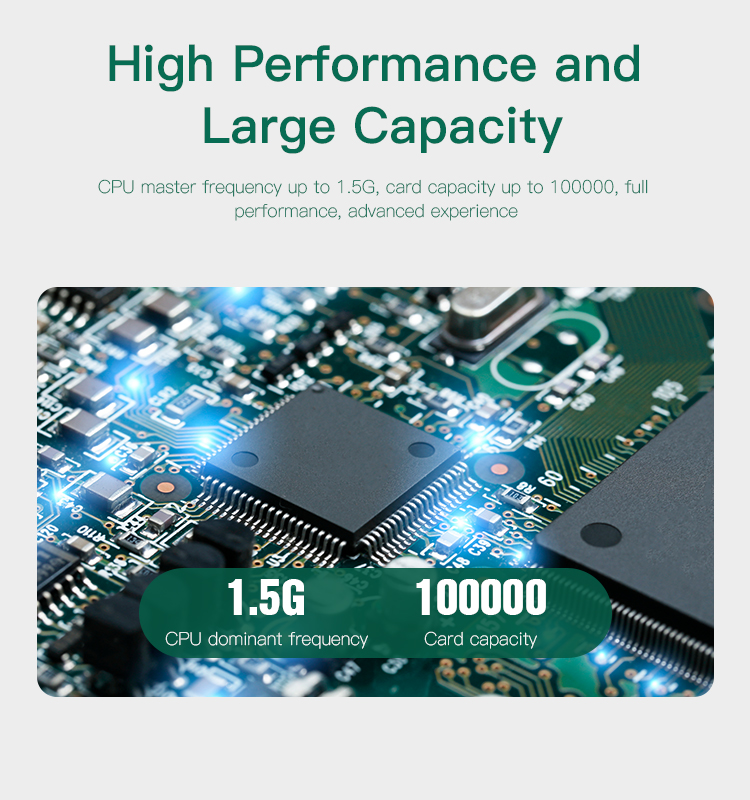

4) High performance and large capacity: the main frequency ofCPU is up to 1.5G, and the card capacity is up to 100000.

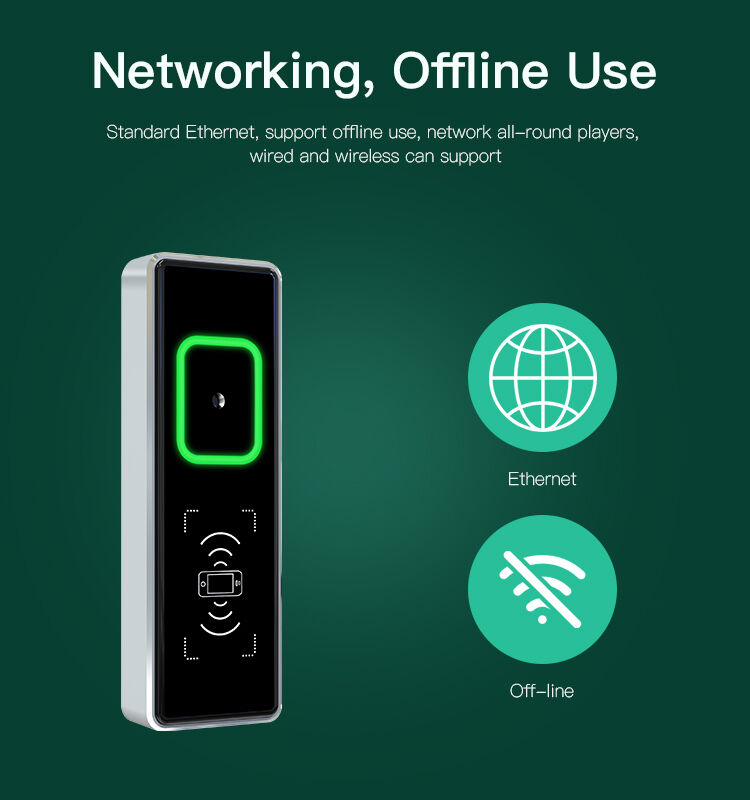

5) Ethernet and optional WiFi are standard, which can be used offline.

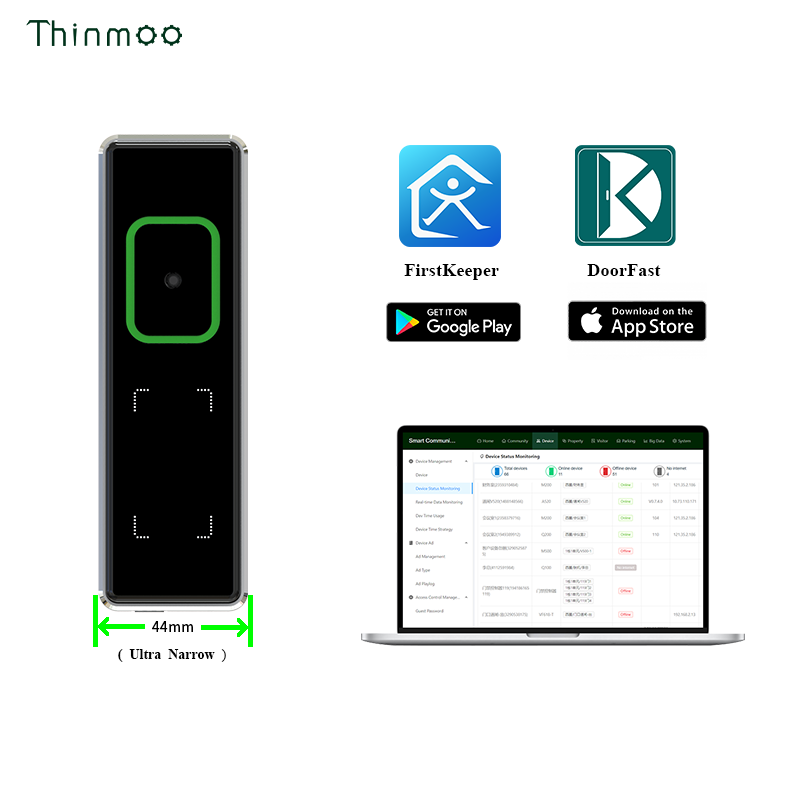

6) 44mm ultra-narrow design to meet most of the world's narrow door frame scenes.

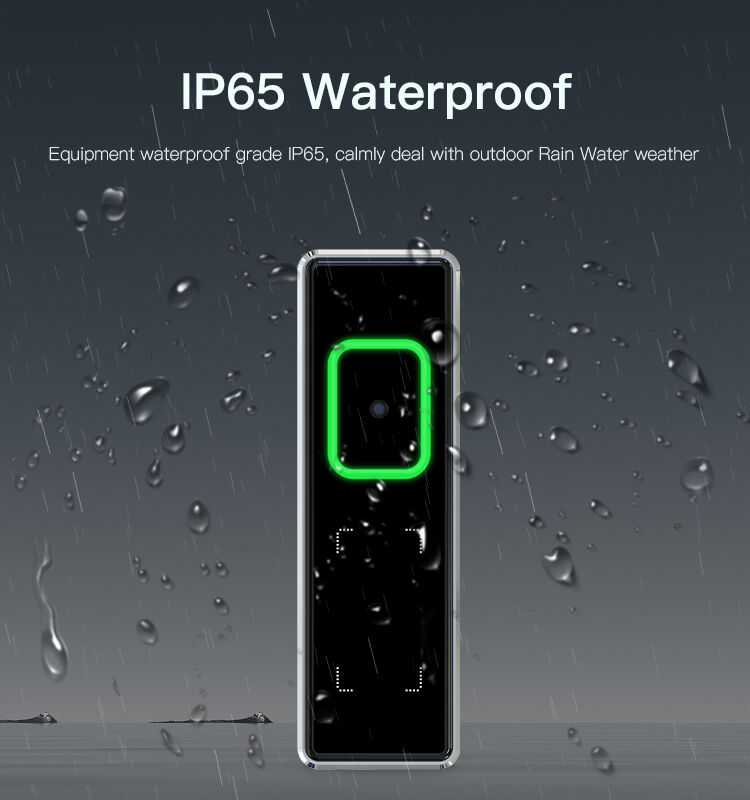

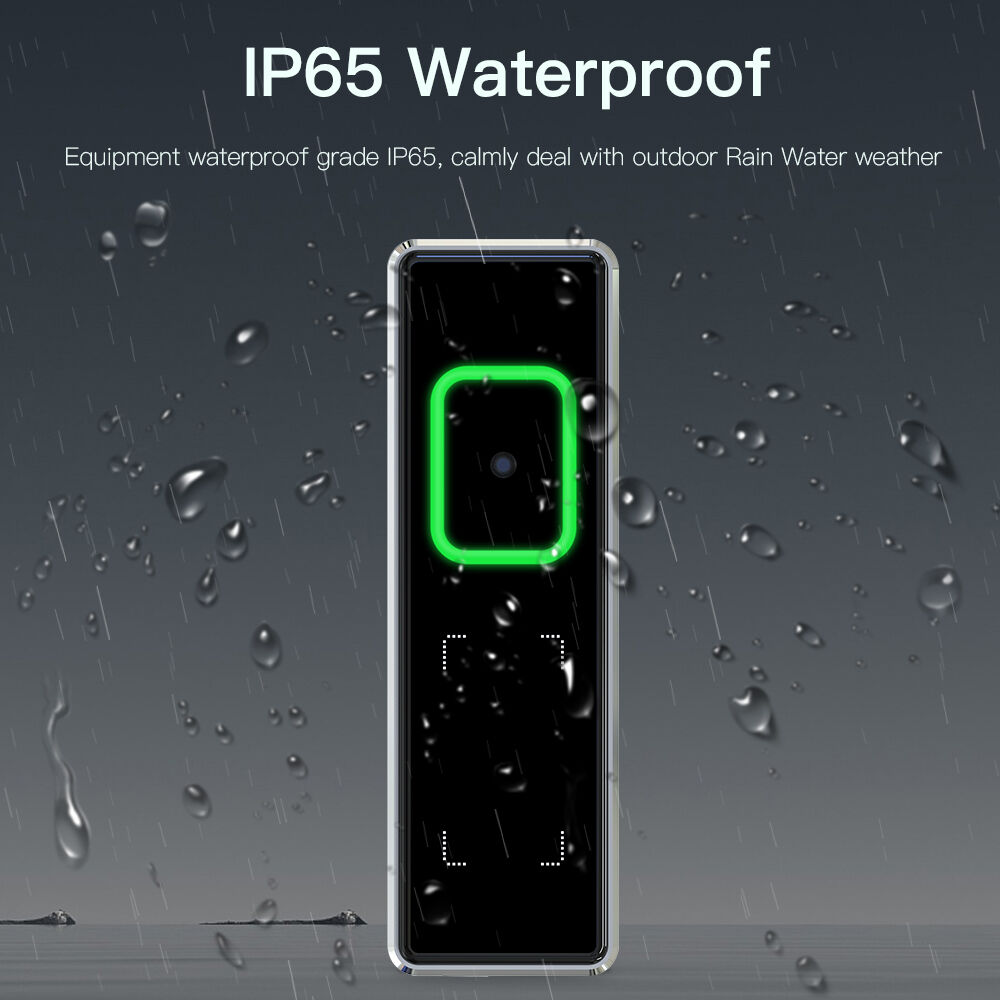

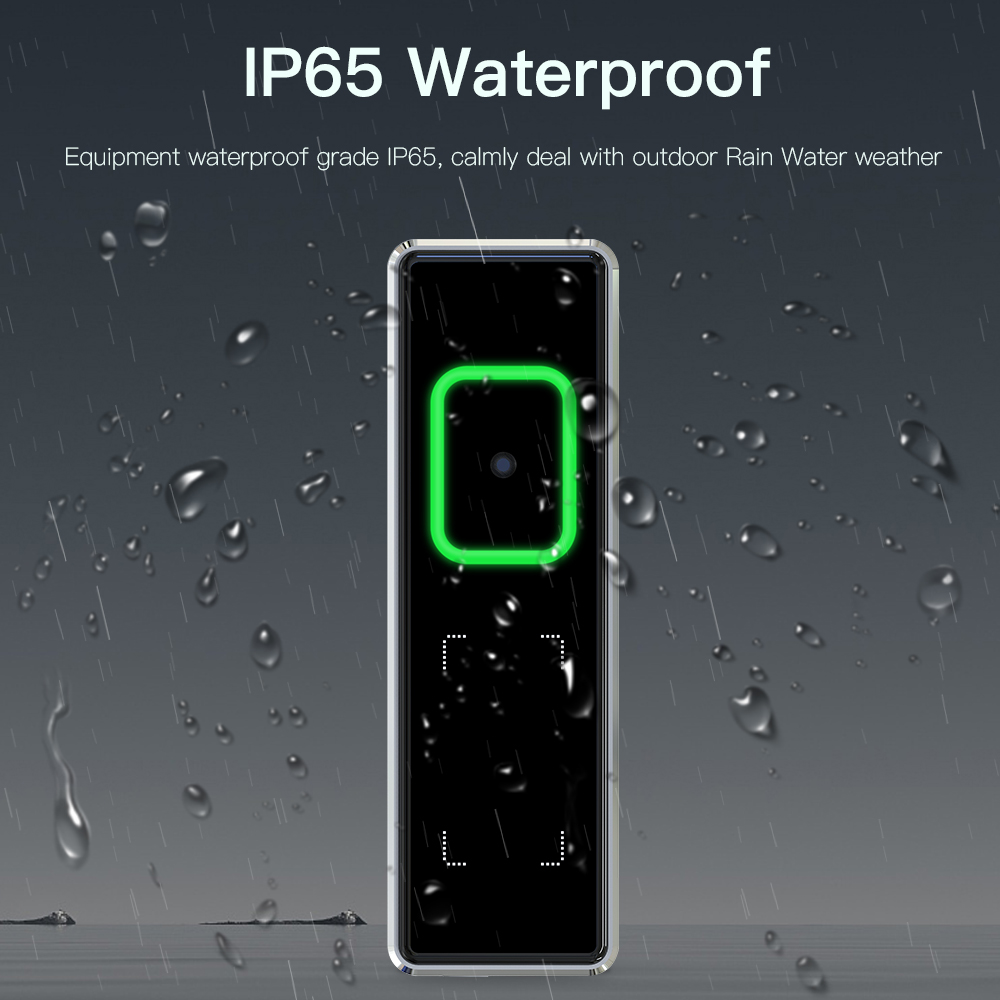

7) Equipment waterproof grade IP65.
8) Support the time period function of professional access control.

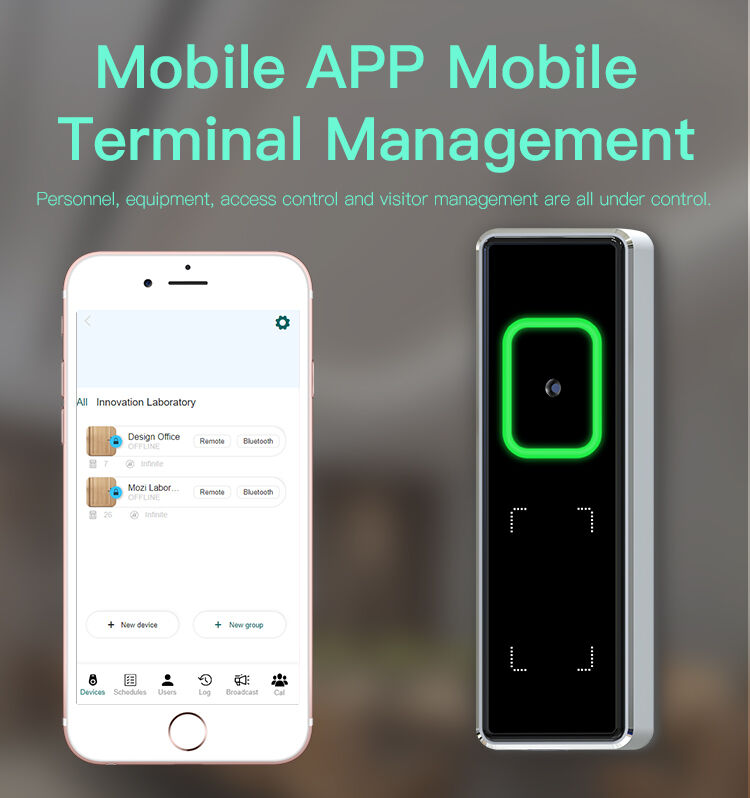

9) Mobile APP mobile terminal management.
1) Unified management of million-level equipment on the Internet of things, fully supporting cloud audio and video solutions
2) A unified platform integrating visual intercom, face recognition access control, cloud door control, parking lot, ladder control and monitoring
3) Real-time event logging, mass storage support
4) Mature API docking service to help the scene land
5) Stable and extensible service capability
6) A secure and reliable system platform.
| Main chip | 1.5G |
| Memory | 128MB |
| Storage | 128MB |
| Door opening verification mode | QR code, card, remote |
| Radio frequency card type | IC (ISO144443A/B), ID optional support |
| Time schedule | 8 groups |
| Networking mode | Ethernet |
| Card capacity | 100000 |
| Bluetooth door opening distance | Barrier-free within 10 meters |
| Camera | 200W |
| Supplementary lamp | White light supplementary lamp |
| Cue lamp | Red, green and white cue lights |
| Access control input and output | All the way out the door switch, one door magnetic input and one door output |
| Alarm input | 1-way alarm input |
| Weigen interface | 1-way Weigen output interface |
| RS485 interface | 1-way RS485 interface, optional configuration for ladder control linkage |
| Shell material | Aluminum alloy, 2.5D tempered glass |
| Waterproof grade | IP65 outdoor waterproofing |
| Operating temperature | -30℃~80℃ |
| Working humidity | 10-90% |
| Power specification | 12V/2A |
| Equipment size | 140*44*24.6mm |

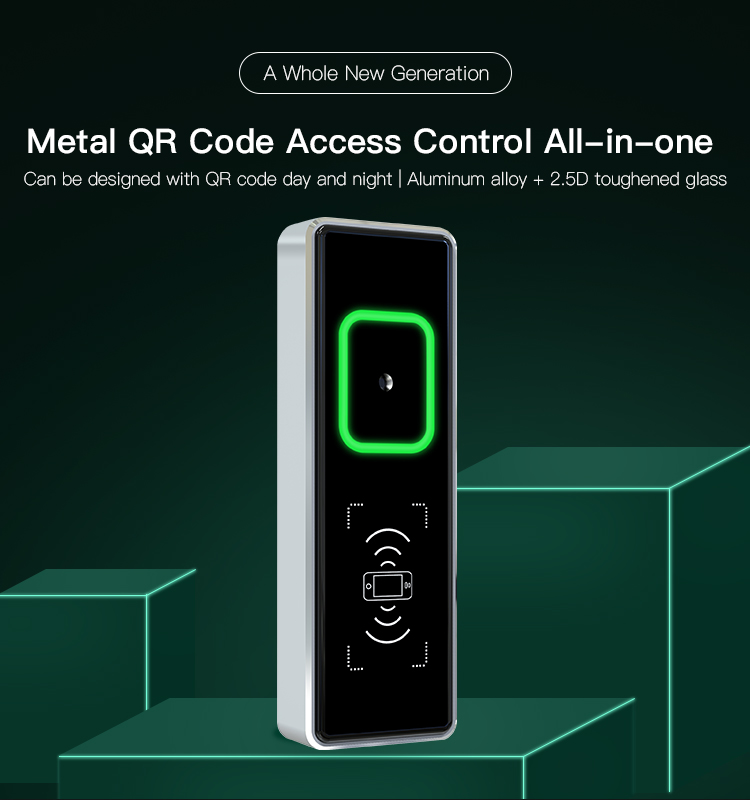

The integrated access control machine of QR code is a metal access control device which integrates the functions of QR code, card swiping, Bluetooth and other functions to scan and verify the QR code through the network. It can be used in access control and elevator. It can realize the access verification of employees, owners and visitors, and realize the convenient access experience through the advanced technology of Internet and Internet of things. It supports networking and offline QR code recognition. All aluminum alloy design, outdoor waterproof, intelligent code scanning sensing, open the door with QR code, swipe card, Bluetooth, remote door and so on.
