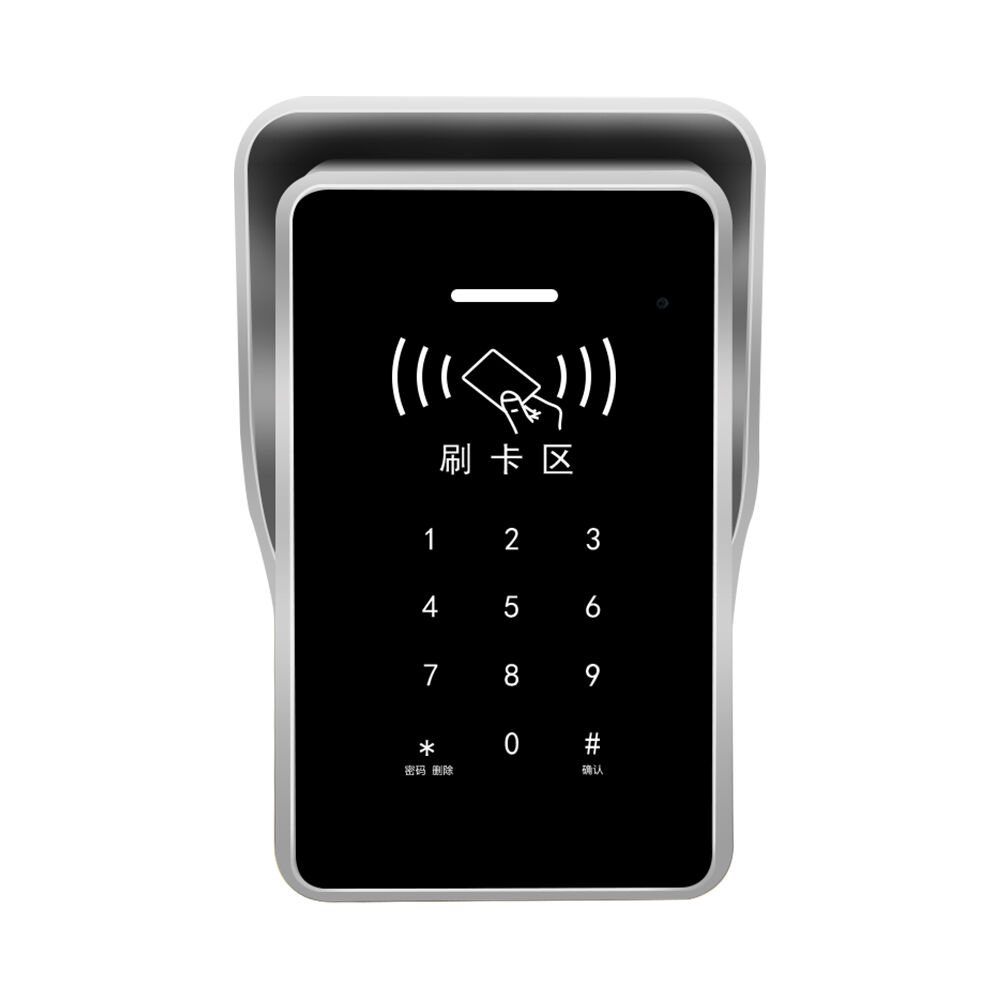

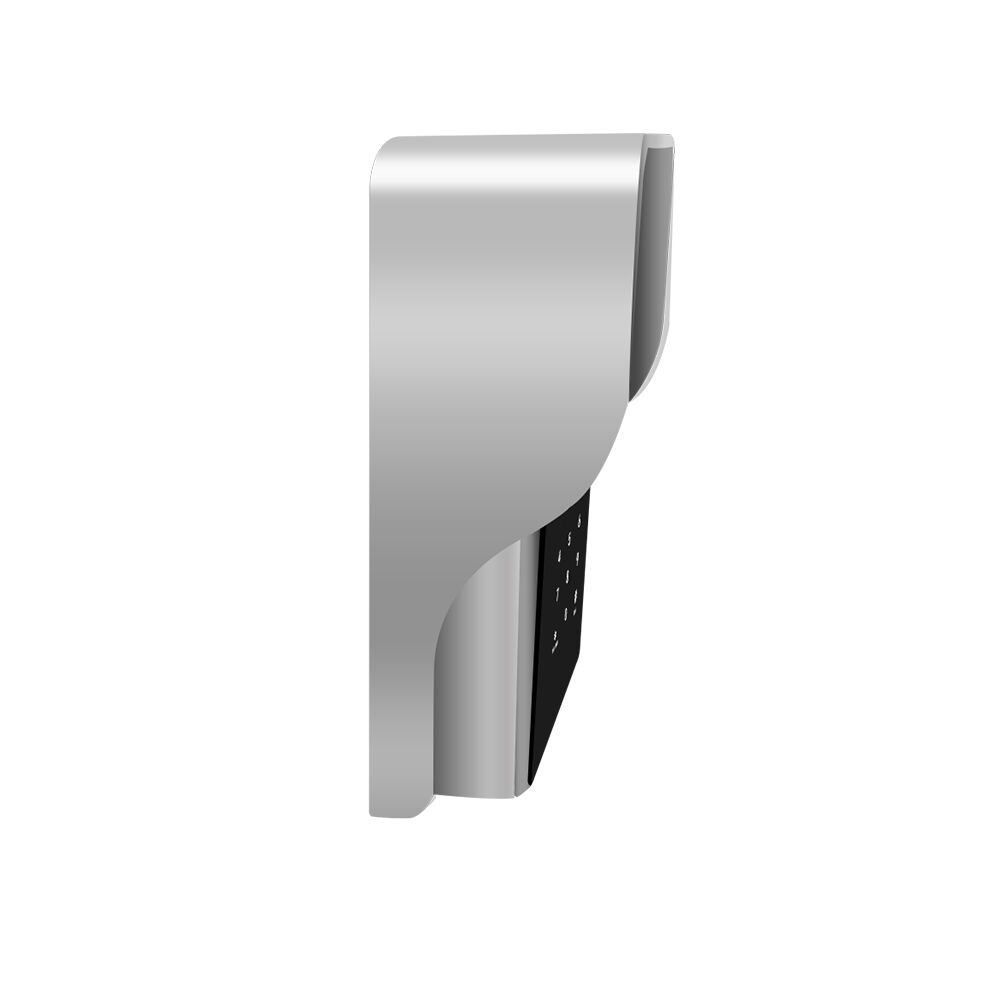

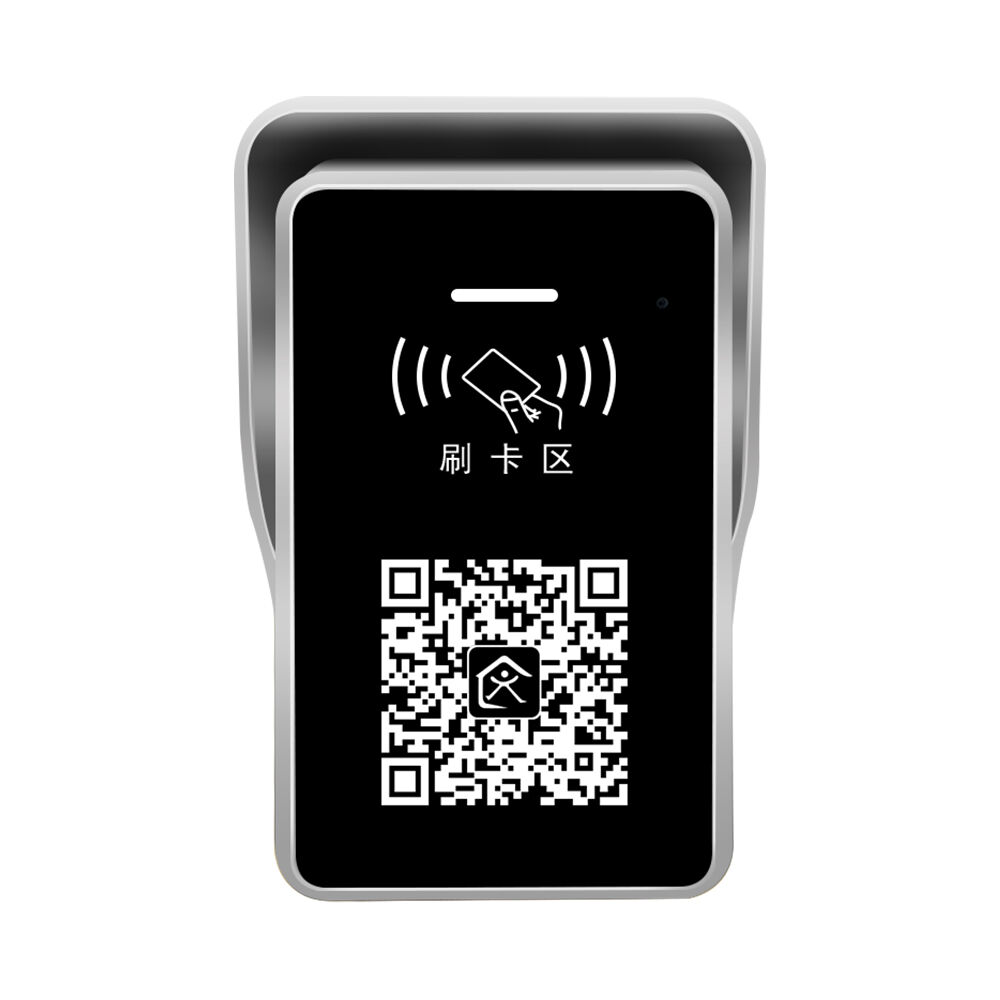

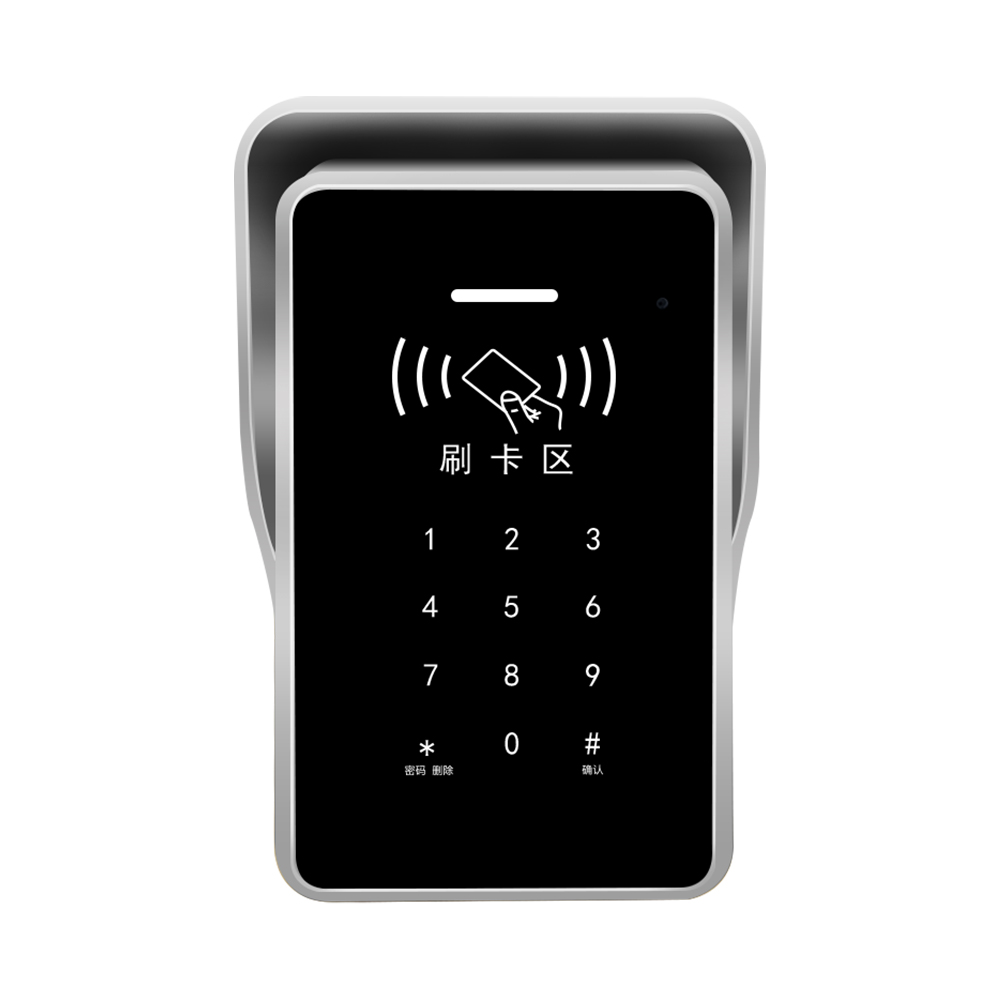

M364 4G WiFi Bluetooth Access Control

  • 5.png

    Bluetooth open the door

  • 6.png

    Open the door by swiping card.

  • 7.png

    Open door remotely

  • 8.png

    Voice prompt

  • Functional Characteristics
  • Platform Features and Functions
  • Specification Parameters
  • Description
Please contact us to serve you!

Please contact us to serve you!

Inquiry

1) Support adding user card data from the cloud and sending it to devices over the network.

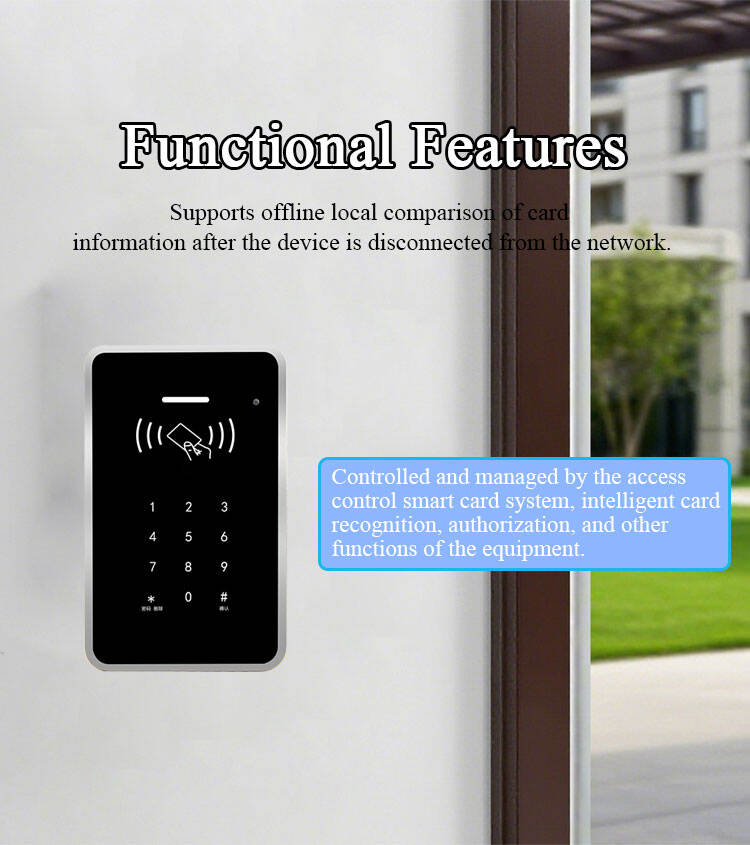

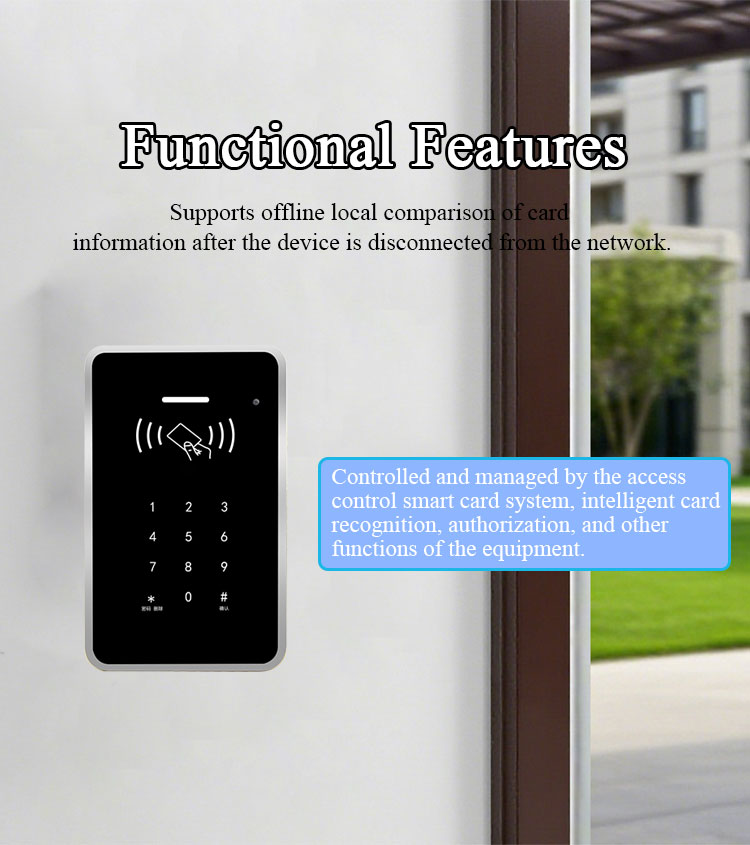

2) Support offline local comparison card information after the device is disconnected.

3) Support Bluetooth to configure the key and verify the door through the card sector.

4) Support the recording of real-time uploading equipment, such as swiping card, opening door switch, alarm trigger, door magnetic event, etc.

5) Remote door opening is supported by calling remote door opening API.

6) support backend configuration of normally open or normally closed door magnetic, support door status upload, door status abnormal alarm.

1) Support property payment, access control intercom, parking lot, charging pile, ladder control, visitors and operation management functions.

2) Unified management of millions of devices in the Internet of things and comprehensive cloud audio and video solutions.

3) A unified platform that supports visual intercom, face recognition, cloud gate ban, parking lot, elevator control and monitoring.

4) Fully support property repair, payment and other functions to meet the property Internet + upgrade.

5) Mature API docking services to provide docking services to help the smart community park.

6) Reliable computing platform.

Main chip

Dialog DA14585

Way of opening the door

Mobile phone Bluetooth / remote / swipe card / temporary visitor password door switch and other ways to open the door

Bluetooth door opening distance

Barrier-free within 10 meters

Communication mode

Standard 4G, Bluetooth

Access control function

Door magnetism, unlock, door switch, Wigan interface

Wide voltage input

Support 8V to 18V wide voltage input

Card capacity

5K

Radio frequency card type

IC (ISO14443A/B), optional ID (125K)

Memory

768KB

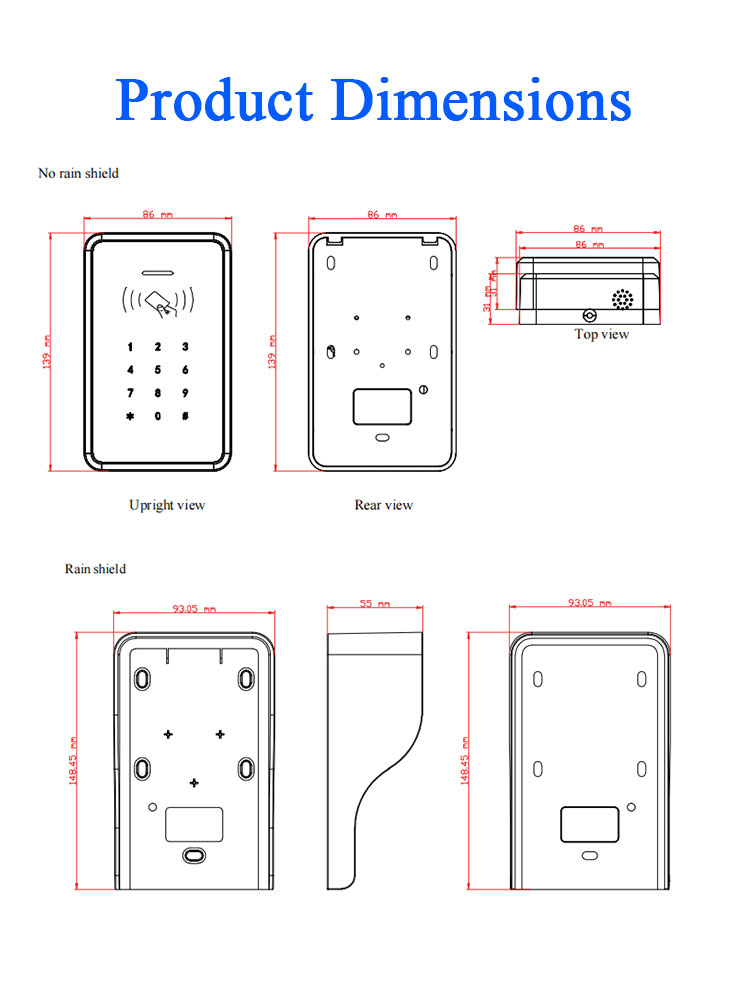

Device size

86mm * 139mm * 31mm

Dimensions of rain cover

93mm * 148mm * 55mm

The M364 4G WiFi Bluetooth access control all-in-one machine controls and manages smart card identification, authorization and other functions through the access control all-in-one card system, and opens the door in ways su ch as bluetooth door opening, remote opening door, swiping card opening, etc., which can realize real-time

uploading of backstage card issuing and door opening records.

M364详情_01.jpgM364详情_02.jpgM364详情_05.jpgM364详情_06.jpgM364详情_07.jpgM364详情_08.jpgM364详情_09.jpgM364详情_12.jpg
