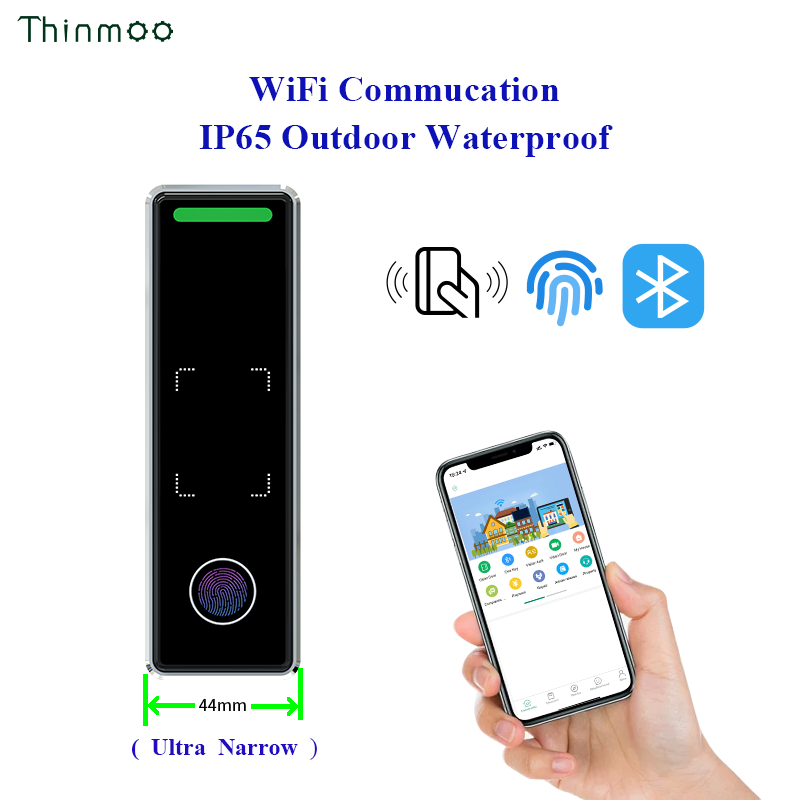

WiFi communication

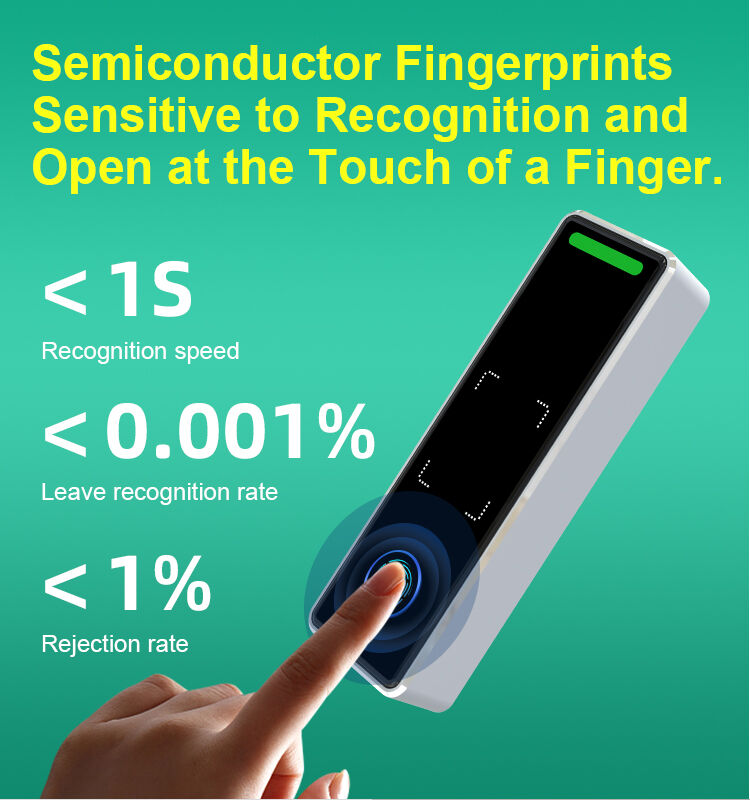

Fingerprint identification
High safety antimagneti solid state relay

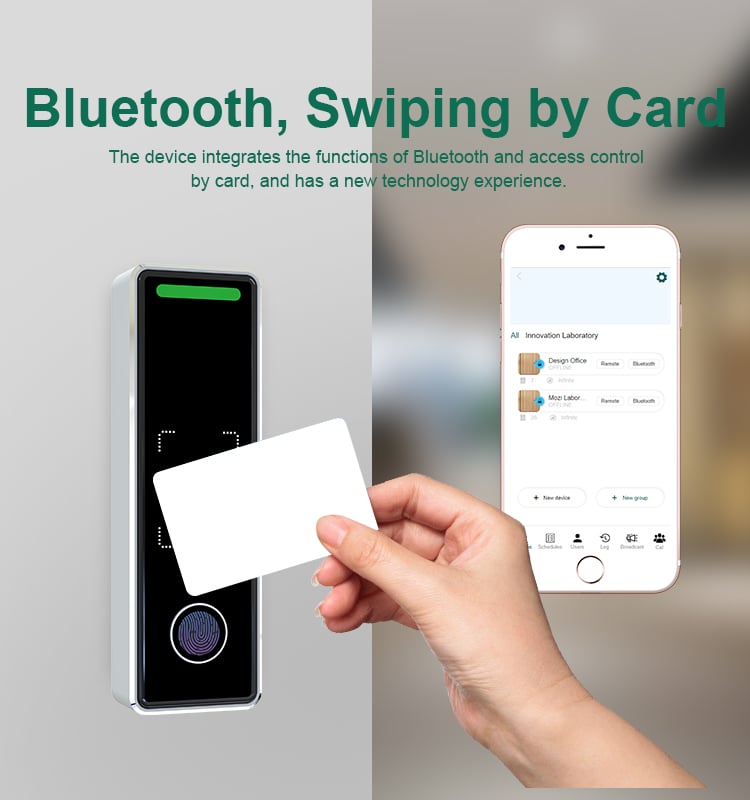

Bluetooth open the door
Waterproof access control
Ultra-narrow design
APP manages access control

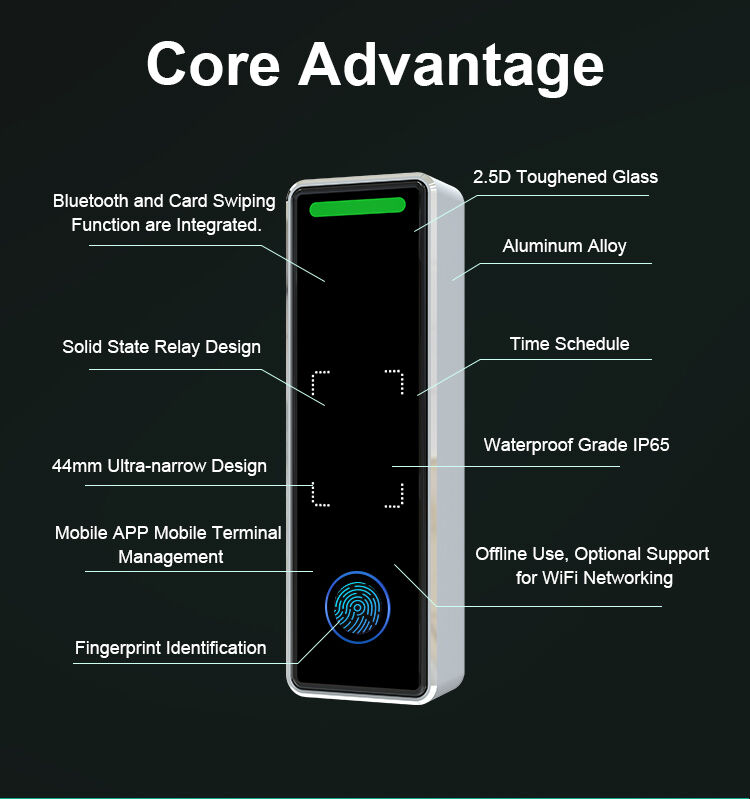

1) Integrate fingerprint, Bluetooth and access control by card.

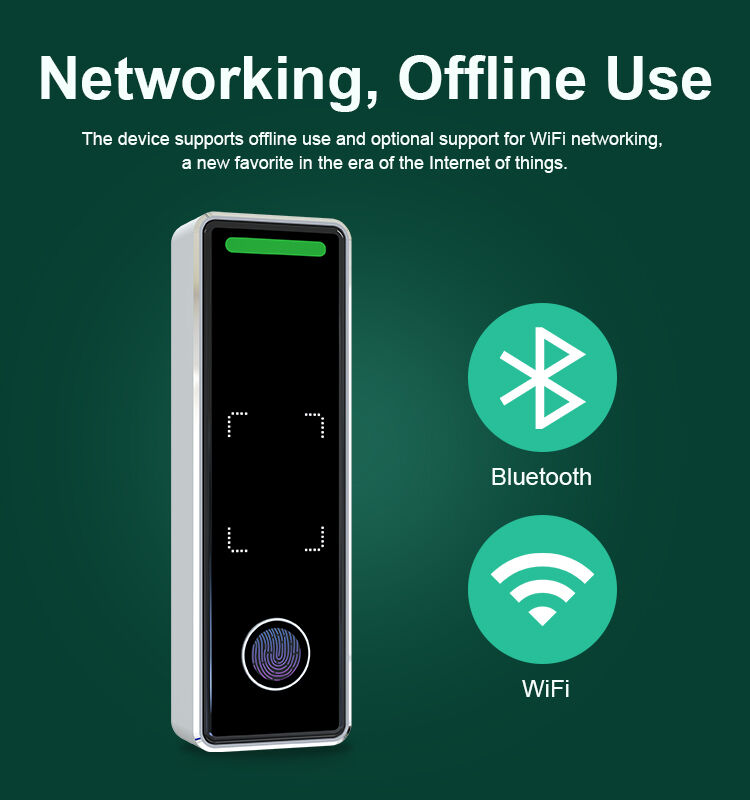

2) WiFi is connected to the Internet, and the device can be used offline.

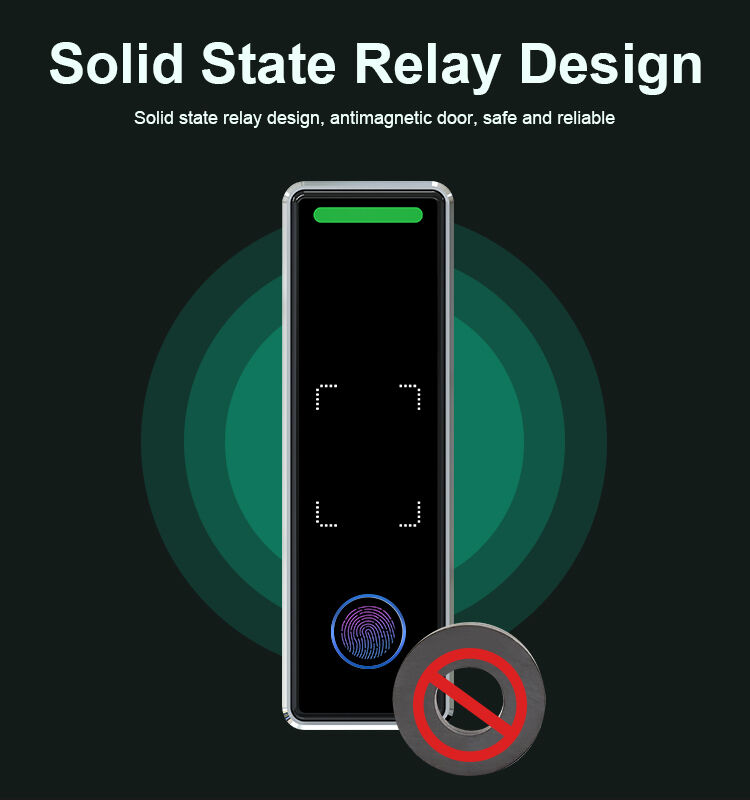

3) Solid state relay design, antimagnetic door, safe and reliable.

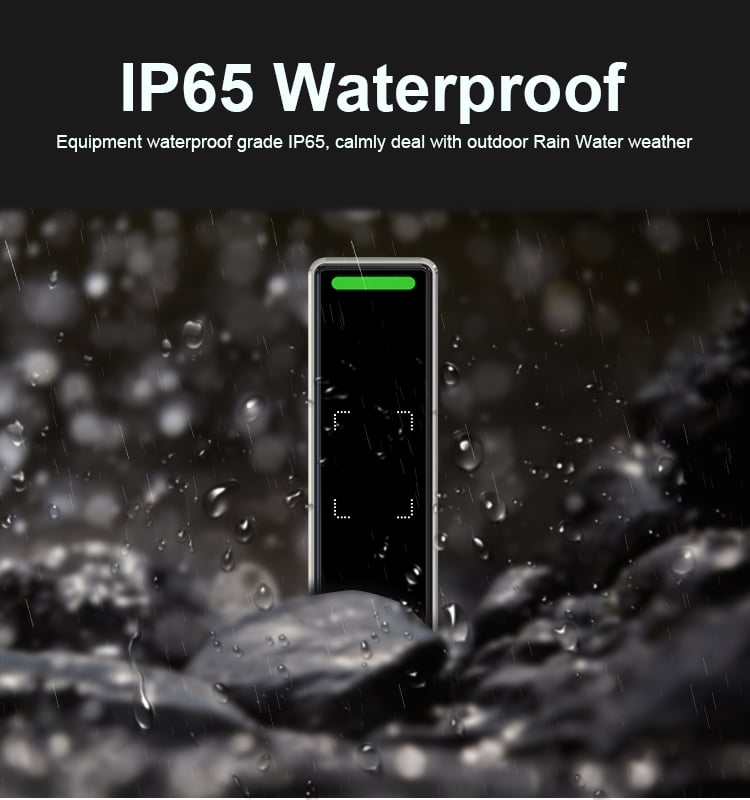

4) Device waterproof grade IP65.

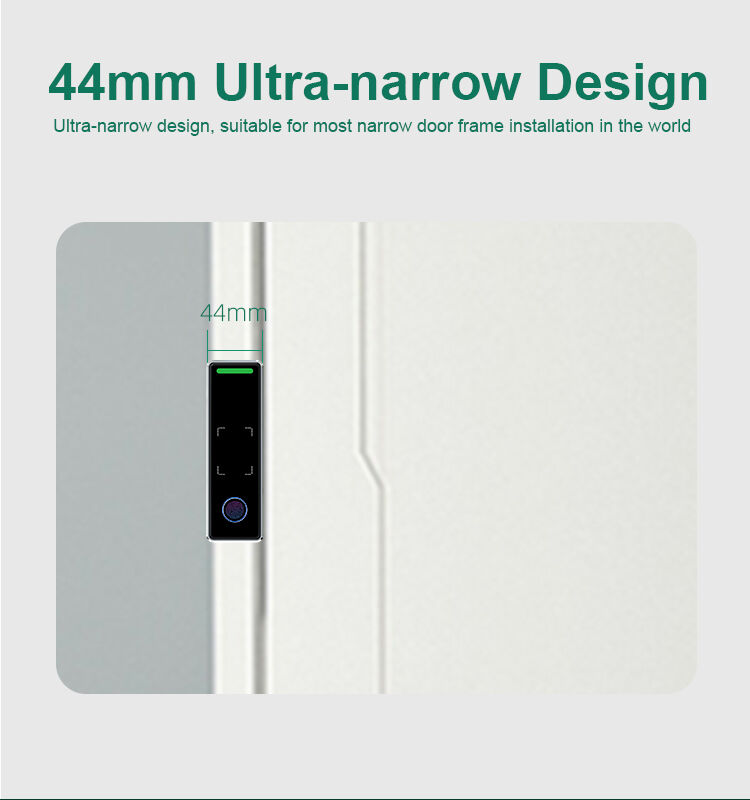

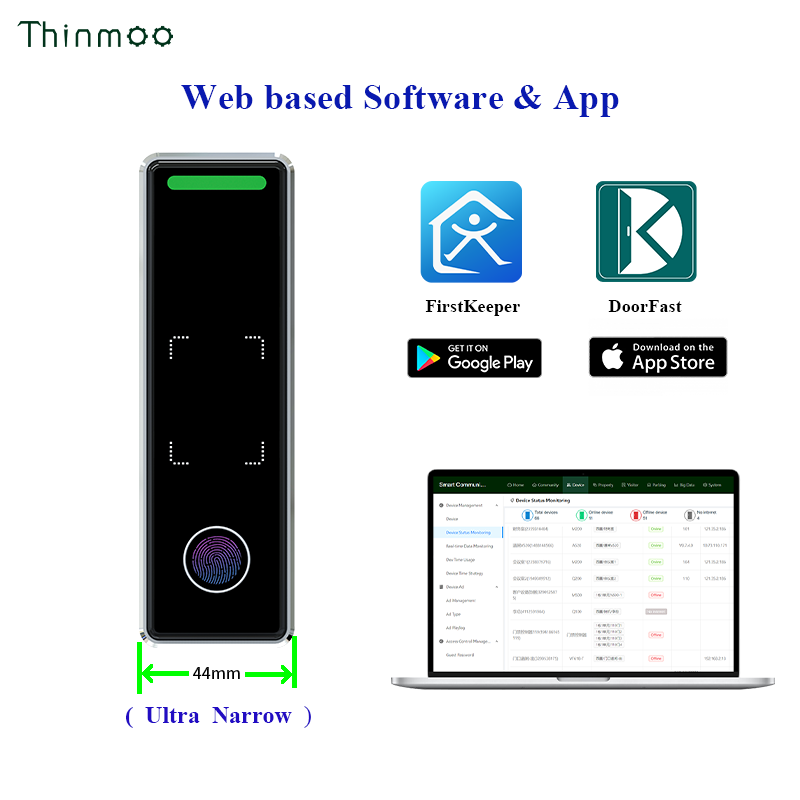

5) 44mm ultra-narrow design, suitable for most narrow door frame installation in the world.

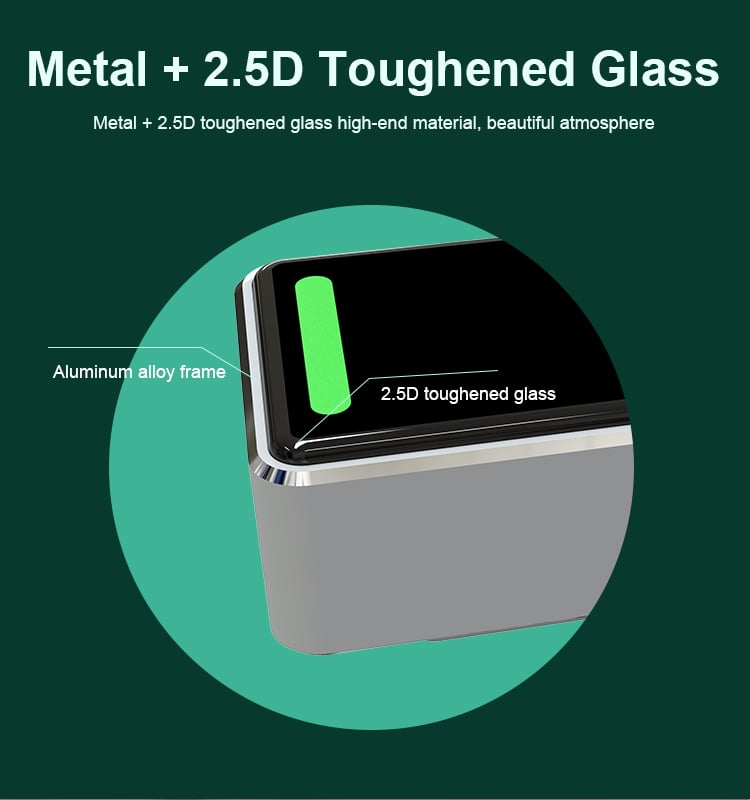

6) Metal + 2.5D toughened glass high-end material.

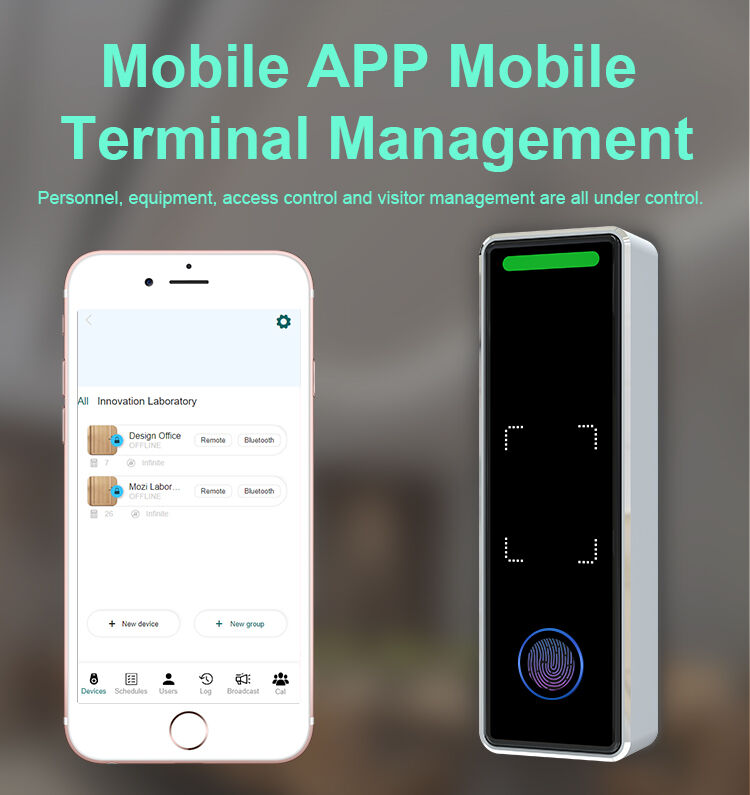

7) Mobile APP mobile terminal management
1) A large platform integrating visual intercom, face recognition, cloud gate ban, parking lot, charging post, elevator control and monitoring.
2) Support property operation functions such as property payment, online mall, property repair, venue reservation, online voting and so on.
3) Public cloud, private cloud deployment, local software to fully meet customer needs.
4) Mature API docking service, landing of assistant smart community, campus and campus scenes.
5) Unified management of millions of devices in the Internet of things, fully supporting cloud audio and video solutions.
6) Support docking of third-party hardware devices and open platform.
7) Professional brand suppliers in the property industry, stable, continuous and reliable service ability
| Main chip | 160m dominant frequency |
| Card capacity | 2000 |
| Fingerprint capacity | 100 |
| Door opening verification mode | Fingerprint, Bluetooth, card, remote |
| Radio frequency card type | Standard IC (ISO144443A/B) and optional support for ID |
| Relay type | Antimagnetic solid state relay |
| Networking mode | WiFi |
| Bluetooth door opening distance | Barrier-free within 10 meters |
| Indicator light | Red and green indicator lights |
| Access control input and output | All the way out the door switch, one door magnetic input and one door output |
| Alarm input | 1-way alarm input |
| Weigen interface | 1-way Weigen output interface |
| Shell material | Metal, tempered glass |
| Waterproof grade | IP65 outdoor waterproofing |
| Operating temperature | -30℃~80℃ |
| Working humidity | 10-90% |
| Power specification | 12-24V wide voltage |
| Device size | 140*44*24.6mm |

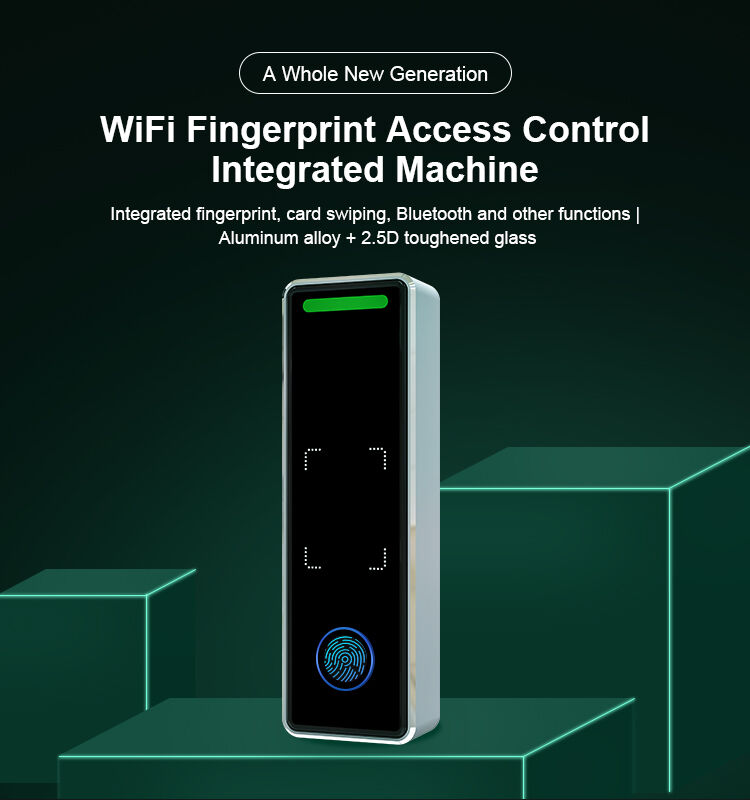

WiFi fingerprint access control machine is an entrance access control device with integrated fingerprint, card swiping, Bluetooth and other functions; it can be used in community, park and office access control, which can be used to verify the access of employees and owners, and realize convenient access experience through Internet and Internet of things advanced technology; support networking and offline use; support the use of all-in-one machine and head reading mode, such as fingerprint, swiping card to open the door, Bluetooth door opening, remote door opening, etc.
