| Model | Code | Description |
| ZUR502S | ZUR502SE | Work frequency: 865-868MHz (EU) Multiple cards reading Communication : Wiegand26/34, RS485, USB Read range: >10m Size: 308.5*308.5*67.5mm |
| ZUR502SE/T | Work frequency: 865-868MHz (EU) Multiple cards reading Communication : Wiegand26/34, RS485, USB, TCP/IP Read range: >10m Size: 308.5*308.5*67.5mm | |
| ZUR502SF | Work frequency: 902-928MHz (US) Multiple cards reading Communication : Wiegand26/34, RS485, USB Read range: >10m Size: 308.5*308.5*67.5mm | |
| ZUR502SF/T | Work frequency: 902-928MHz (US) Multiple cards reading Communication : Wiegand26/34, RS485, USB, TCP/IP Read range: >10m Size: 308.5*308.5*67.5mm | |
| ZUR502E/BT | Work frequency: 865-868MHz (EU) Communication : Wiegand26/34, RS485, USB, Bluetooth Read range: >10m Size: 308.5*308.5*67.5mm Support an App to control the reader via Bluetooth | |
| ZUR502F/BT | Work frequency: 902-928MHz (US) Communication : Wiegand26/34, RS485, USB, Bluetooth Read range: >10m Size: 308.5*308.5*67.5mm Support an App to control the reader via Bluetooth | |
| ZUR502B | ZUR502BE | Work frequency: 865-868MHz Multiple cards reading Communication : Wiegand26/34, RS485, USB Read range: >15m Size: 445*445*67.5mmmm |
| ZUR502BE/T | Work frequency: 865-868MHz Multiple cards reading Communication : Wiegand26/34, RS485, USB, TCP/IP Read range: >15m Size: 445*445*67.5mmmm | |
| ZUR502BF | Work frequency: 902-928MHz Multiple cards reading Communication : Wiegand26/34, RS485, USB Read range: >15m Size: 445*445*67.5mmmm | |
| ZUR502BF/T | Work frequency: 902-928MHz Multiple cards reading Communication : Wiegand26/34, RS485, USB, TCP/IP Read range: >15m Size: 445*445*67.5mmmm | |
| ZUR502BE/BT | Work frequency: 865-868MHz (EU) Multiple cards reading Communication : Wiegand26/34, RS485, USB, Bluetooth Read range: >15m Size: 445*445*67.5mmmm | |
| ZUR502BF/BT | Work frequency: 902-928MHz (US) Multiple cards reading Communication : Wiegand26/34, RS485, USB, Bluetooth Read range: >15m Size: 445*445*67.5mmmm Support an App to control the reader via Bluetooth |
1. IP66 waterproof grade, strong and durable.
2. Support to set the standby state and card state of the LED lamp of the reading head through the DEMO software.
3. Long distance automatic reading without parking, long distance swipe card, convenient operation and time saving.
4. It adopts integrated structure, with read-write module and antenna.

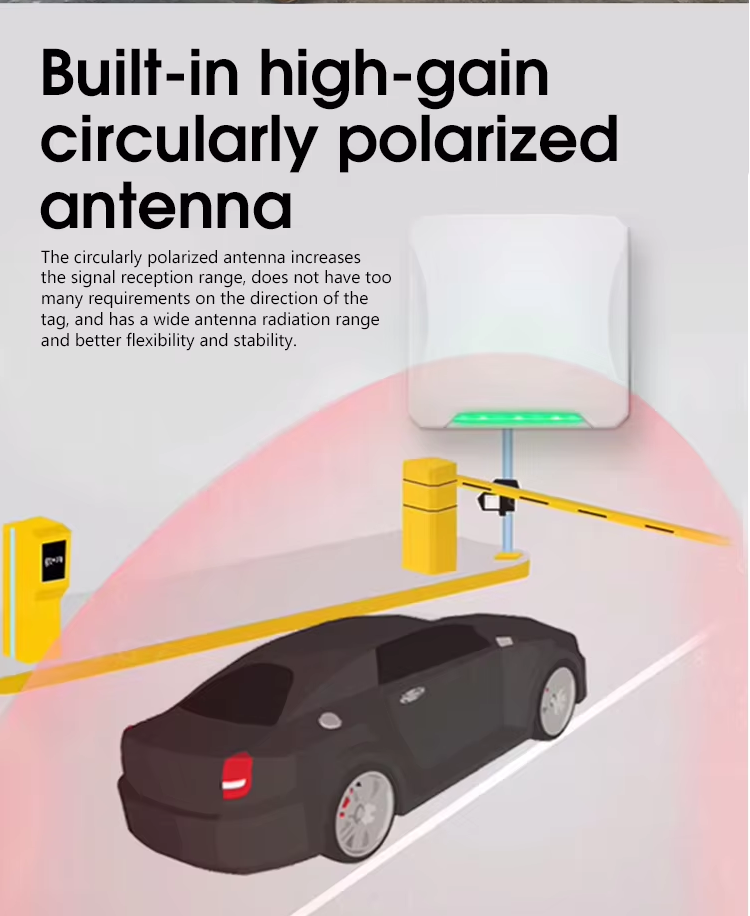

5. Built-in high-gain antenna, long range identification, 9DB antenna reading distance is less than 12 meters, 12DB antenna reading distance is less than 20 meters.
6. Can read more than one card at the same time, anti conflict ability is very strong.

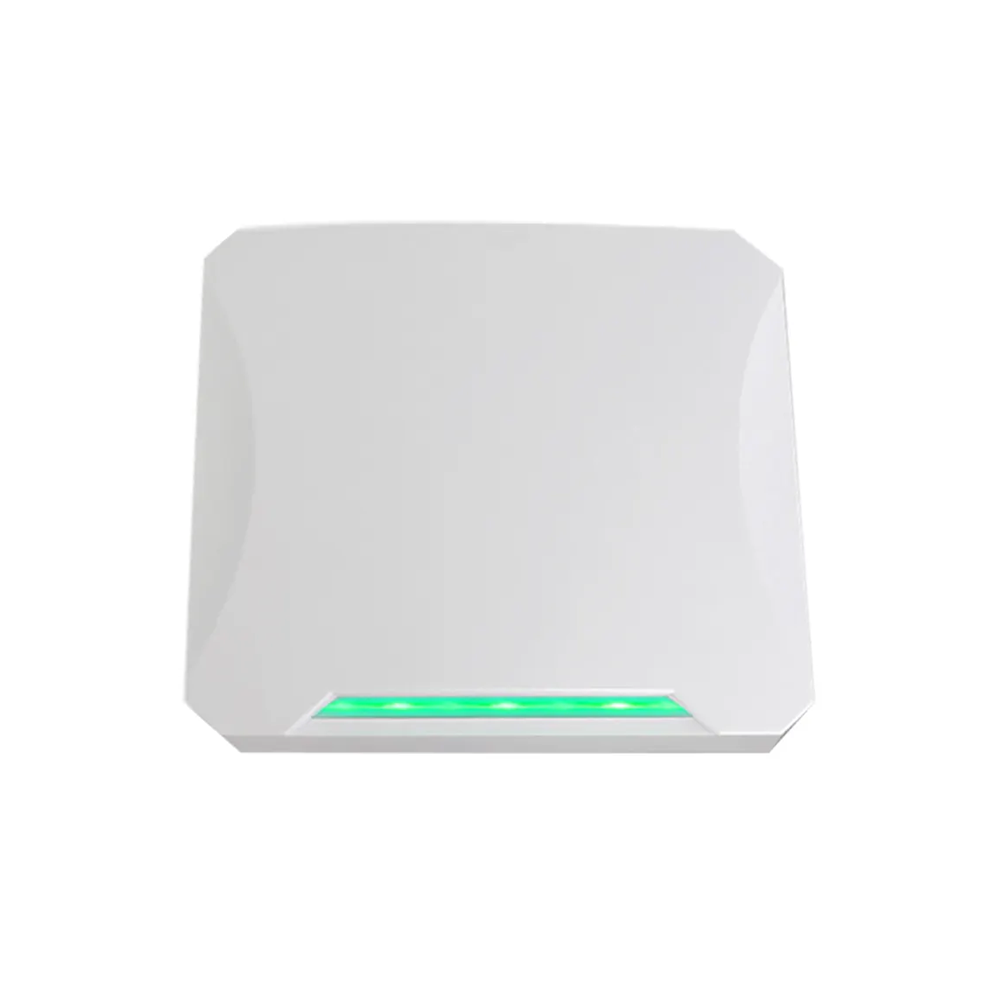

7. LED display multi-color configurable, customers can choose: red, green, white, blue and other seven colors.
8. Support Bluetooth communication, control the reader via an mobile APP
| Parameters. | Description |
| Protocol | EPC global UHF Class Gen 2/ISO 18000-6C |
| Work frequency | 865-868MHz / 902-928MHz |
| Power output | 8dBm~33dBm |
| Power supply | DC 9V~15V |
| Working current | 120~500mA |
| Operating temperature | -20℃~65℃，<85%(+ 25℃) |
| Storage Temp. and Humidity | 20℃~65℃，<85%(+ 25℃) |
| Communication interface | Wiegand, RS485, USB, Bluetooth(Optional), TCP/IP(Optional), |
| Read range | UR502S＜12m，UR502B＜20m |
| Antenna gain | ZUR502S-9dBI / ZUR502B--12dBI |
| IP level | IP66 waterproof |

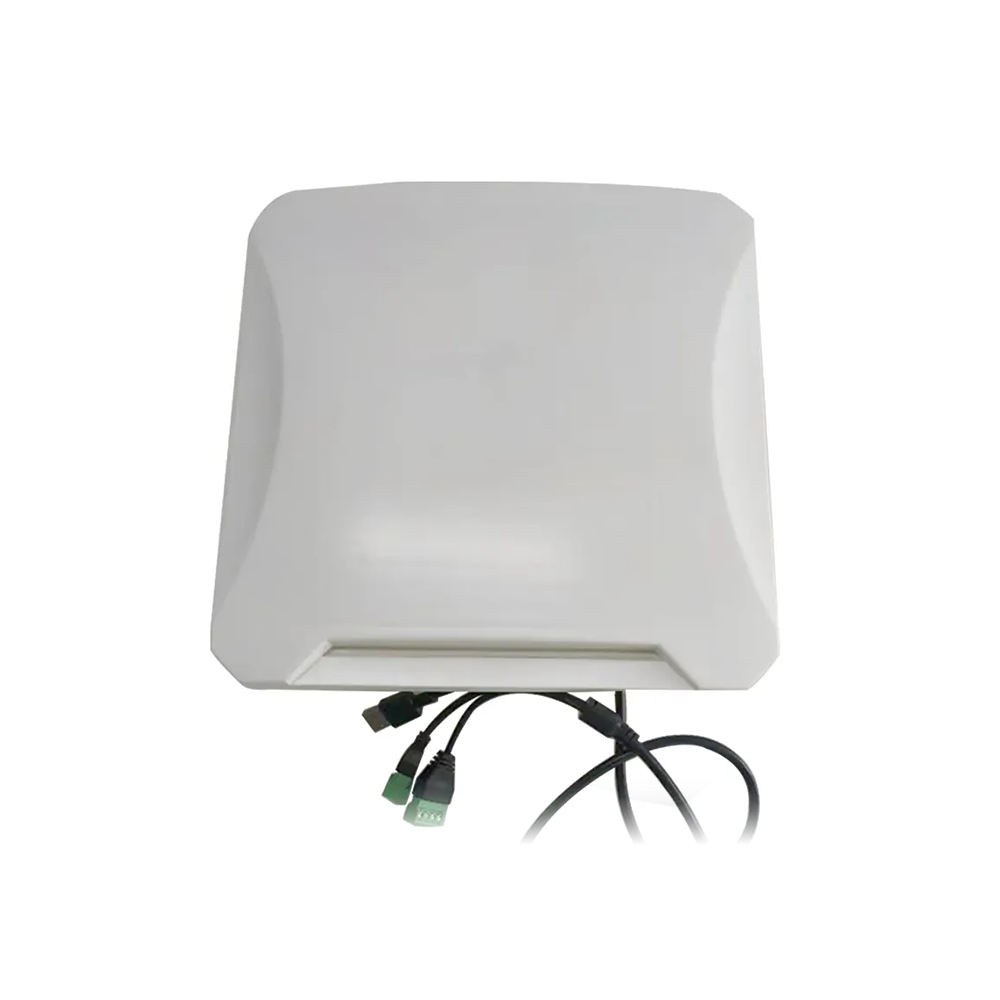

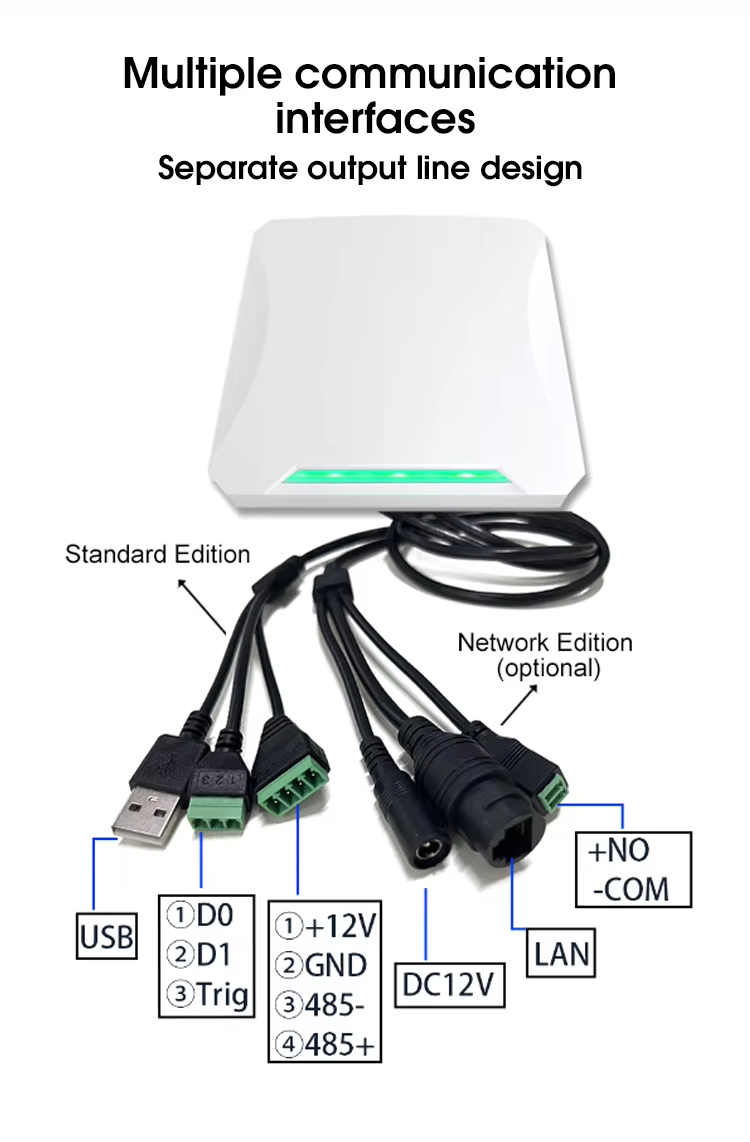

| Wiring definition | Red (+12V), Black(GND), Green(D0), White(D1), Purple(Trigger, low level INT)， Gray(GND), Blue(USB), Yellow(USB), Gray(USB), Brown(RS485+)，Orange(RS485-), Gray(GND) |

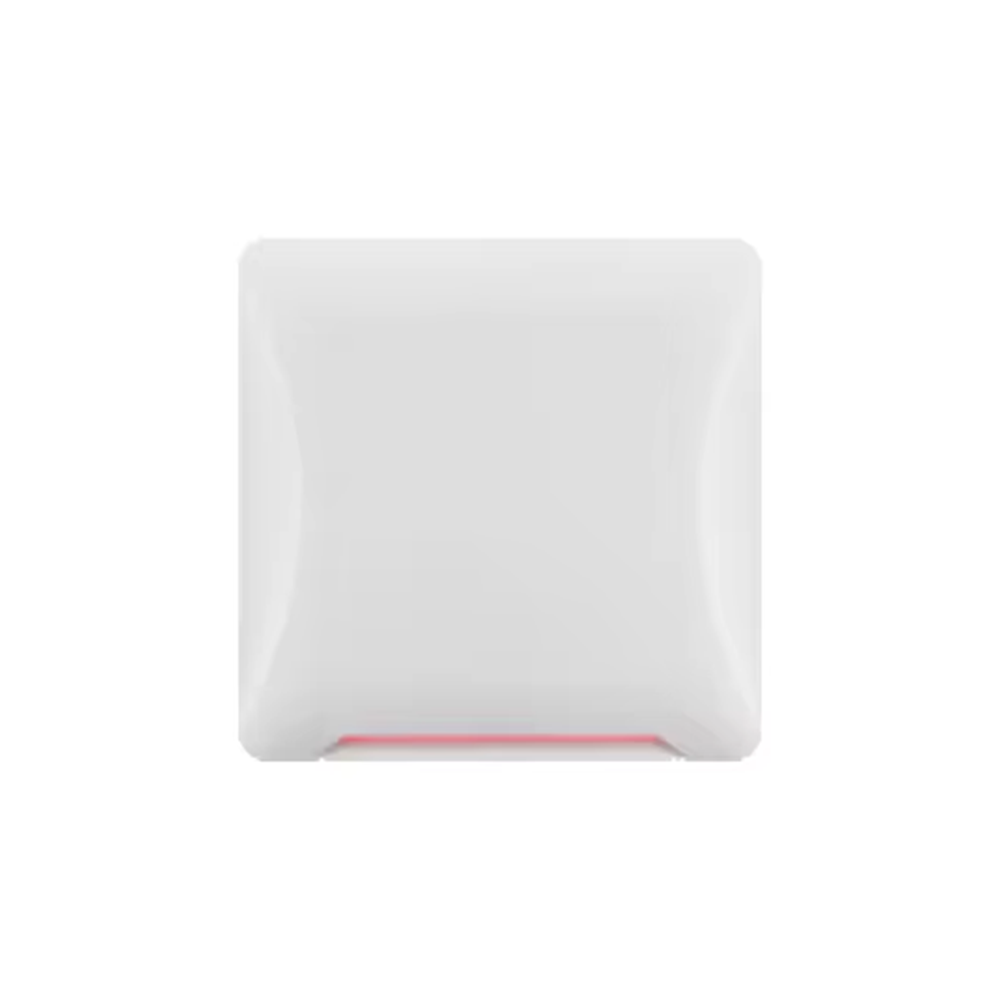

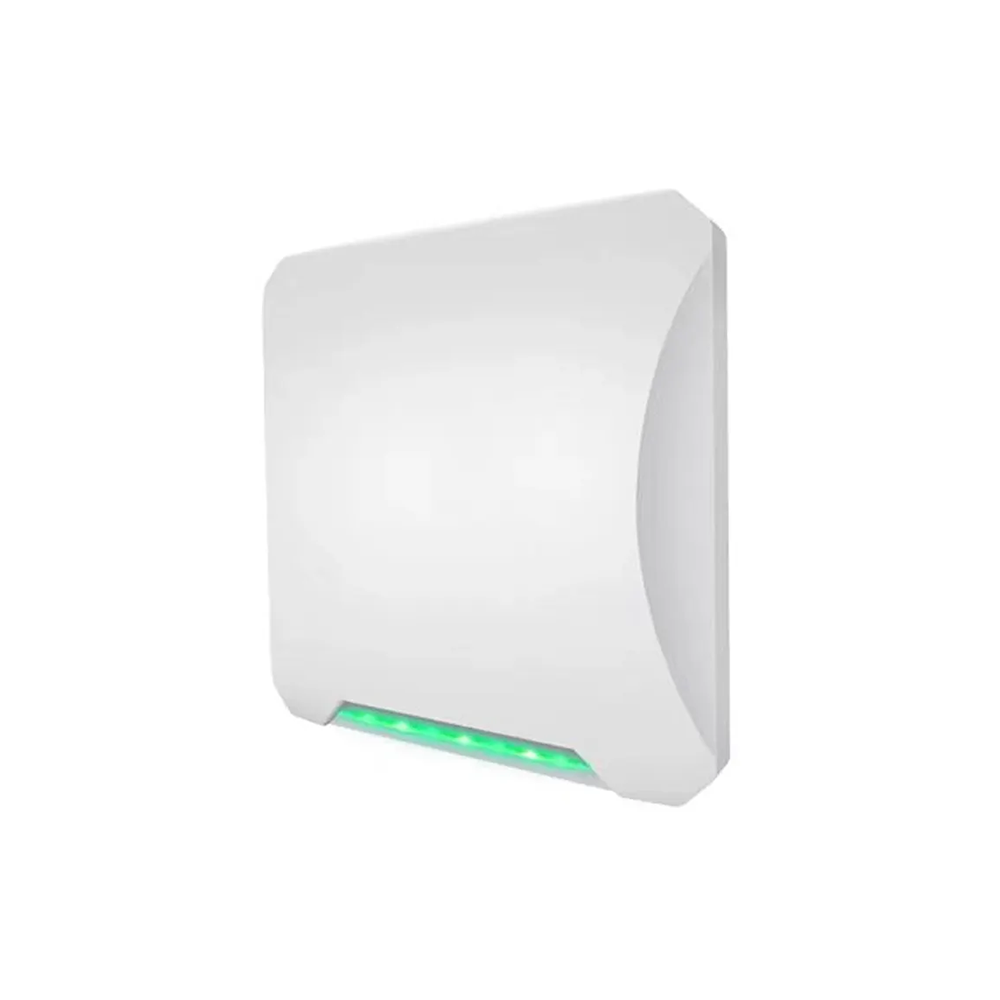

ZUR502 series is a third generation UHF RFID product developed by our company for fixed car parking lot management and remote access control. The product uses the most powerful Impinj R2000 reader chip in the industry,, and part of the integrated design of module, card reader to make the product technical requirements to meet in the parking lot at the same time, has the card read performance is stable, card read performance good consistency and working current and temperature is low, service life is long, card read performance is affected by the outside world is small, and can reach the grade IP66 waterproof, The product is also a product that fully meets the CE/FCC technical requirements, and has obtained CE/FCC and other safety certification certificates.
