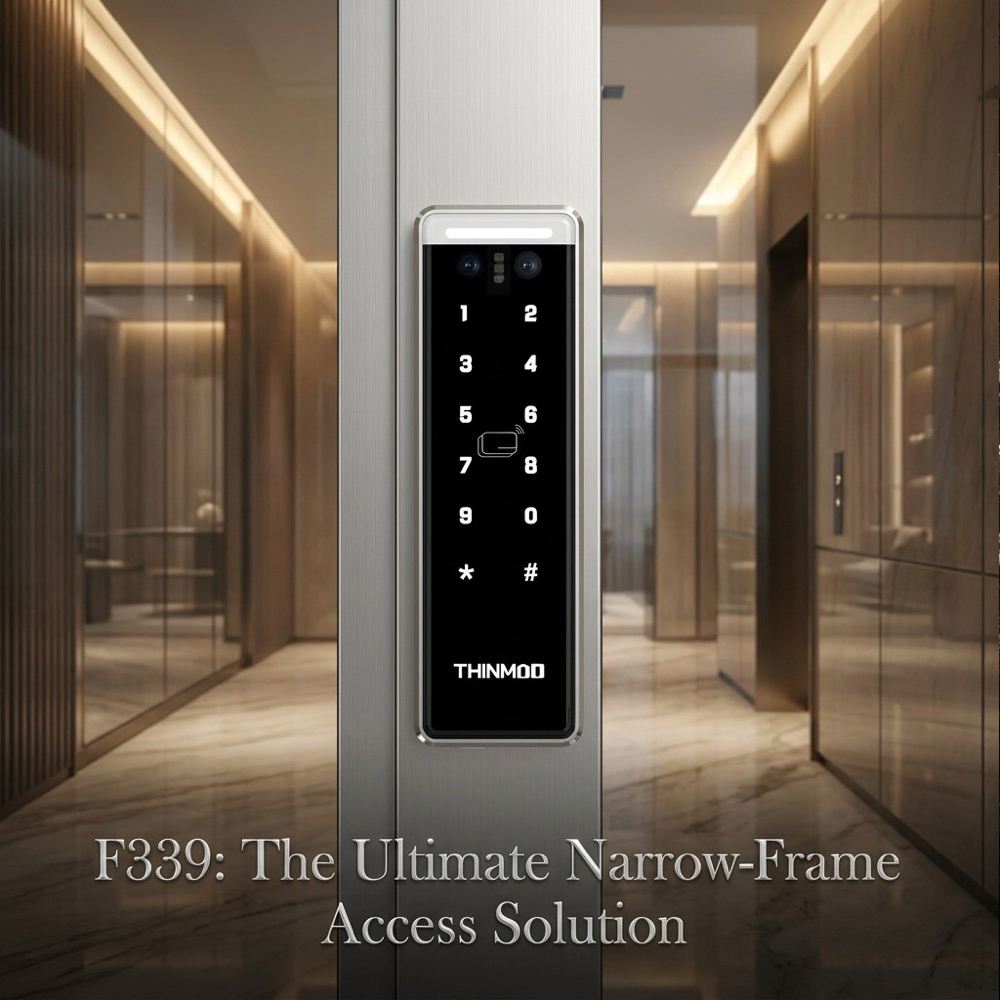

F339 Metal Facial Recognition QR Code Access Control Integrated Machine

  • Functional Characteristics
  • Platform Features and Functions
  • Specification Parameters
  • Description
Please contact us to serve you!

Please contact us to serve you!

Inquiry

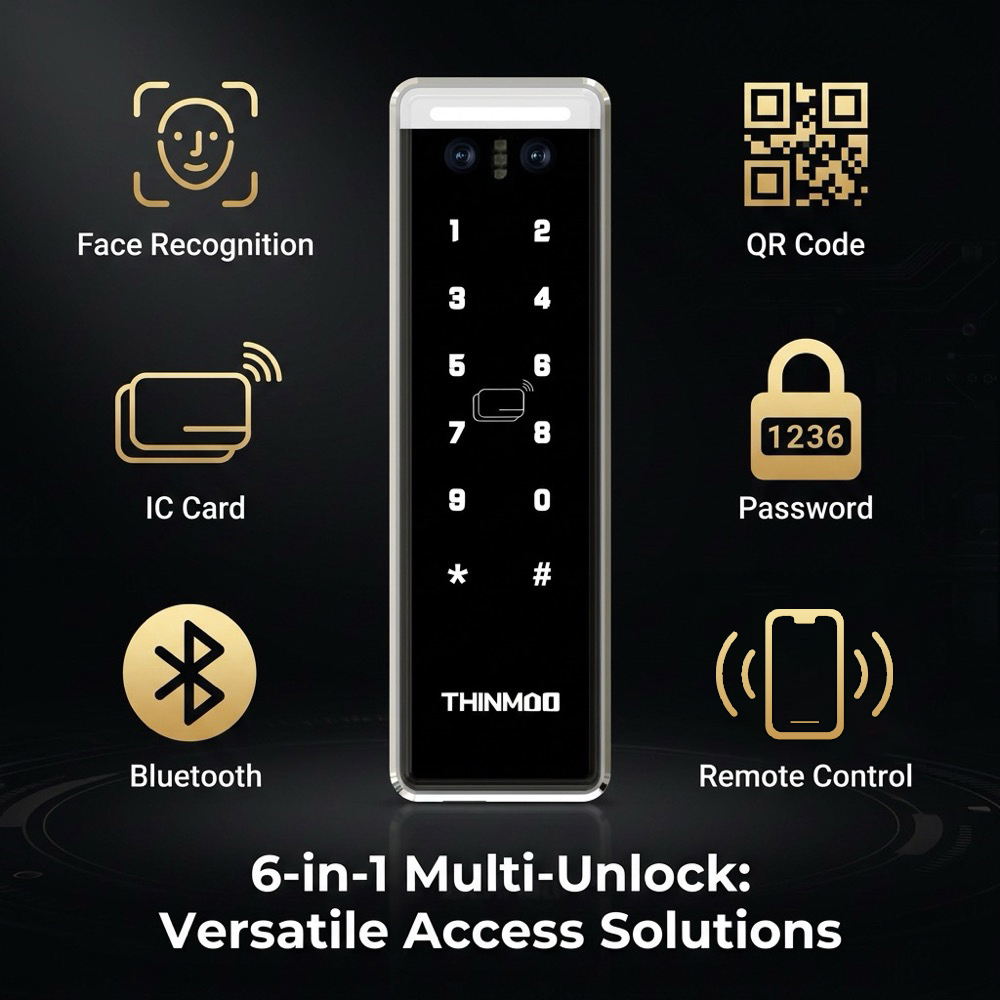

1.Integrates optional cloud QR code, card swiping, face recognition, password, Bluetooth and key access control functions.
2.Intelligent fill light indicator with humanized design.

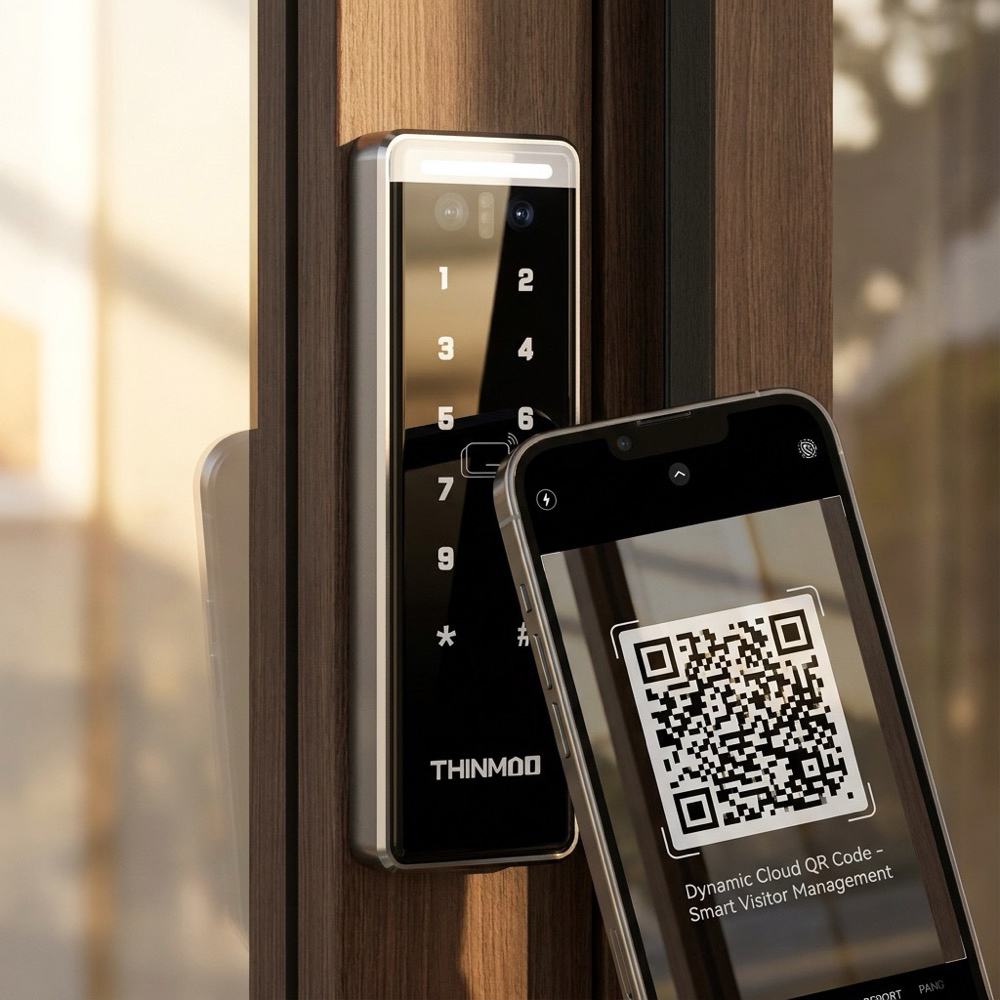

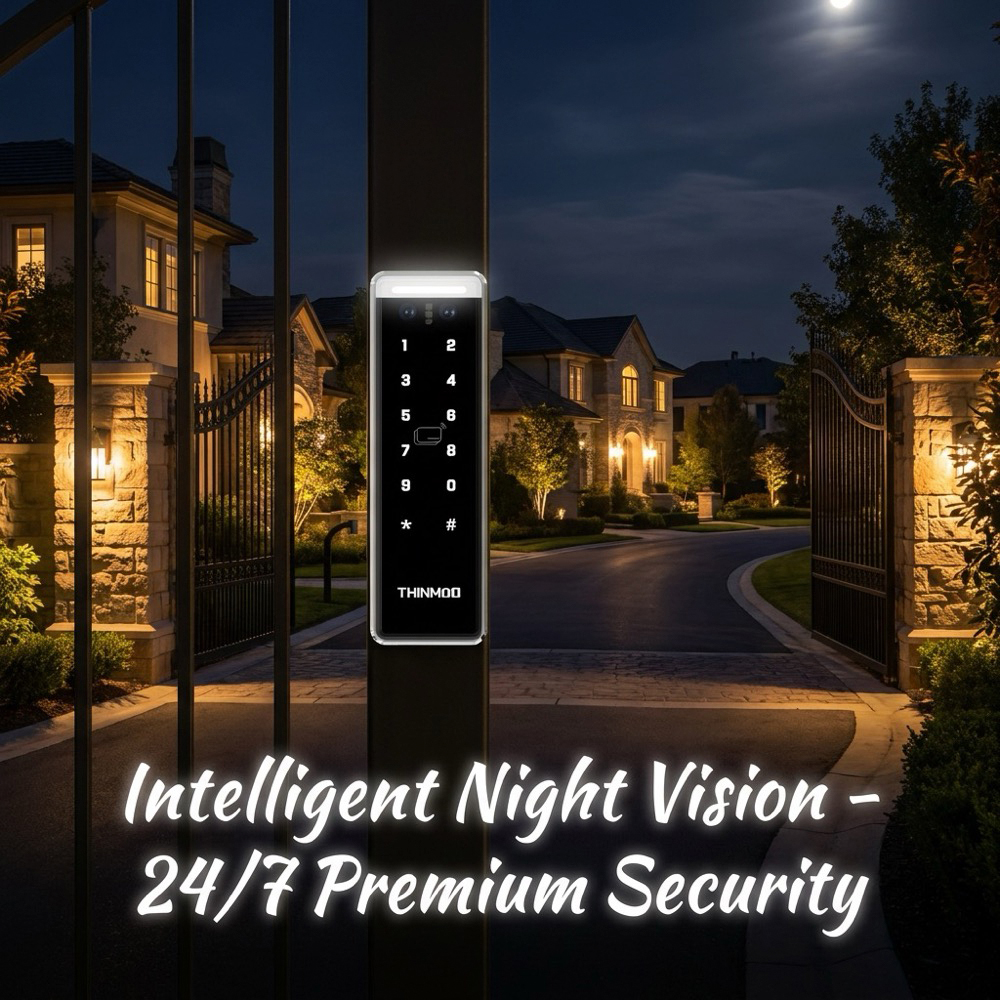

3.Day and night applicable QR code scanning. High-end CMOS sensor ensures excellent low-light performance.
4.High performance and large capacity. CPU main frequency up to 1.5GHz, card storage capacity up to 100,000 users.
5.Standard Ethernet port, optional WiFi module, supports offline operation.

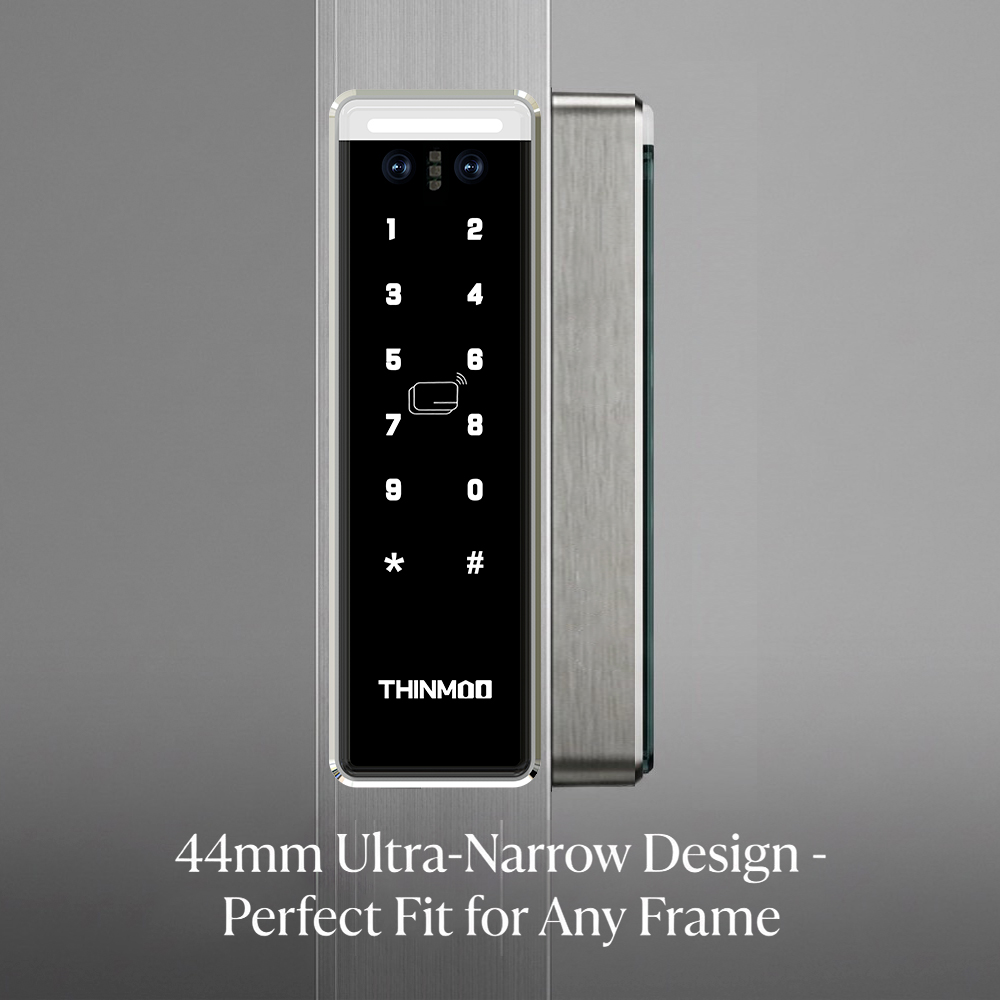

6.44mm ultra-narrow body, suitable for most narrow door frames worldwide.

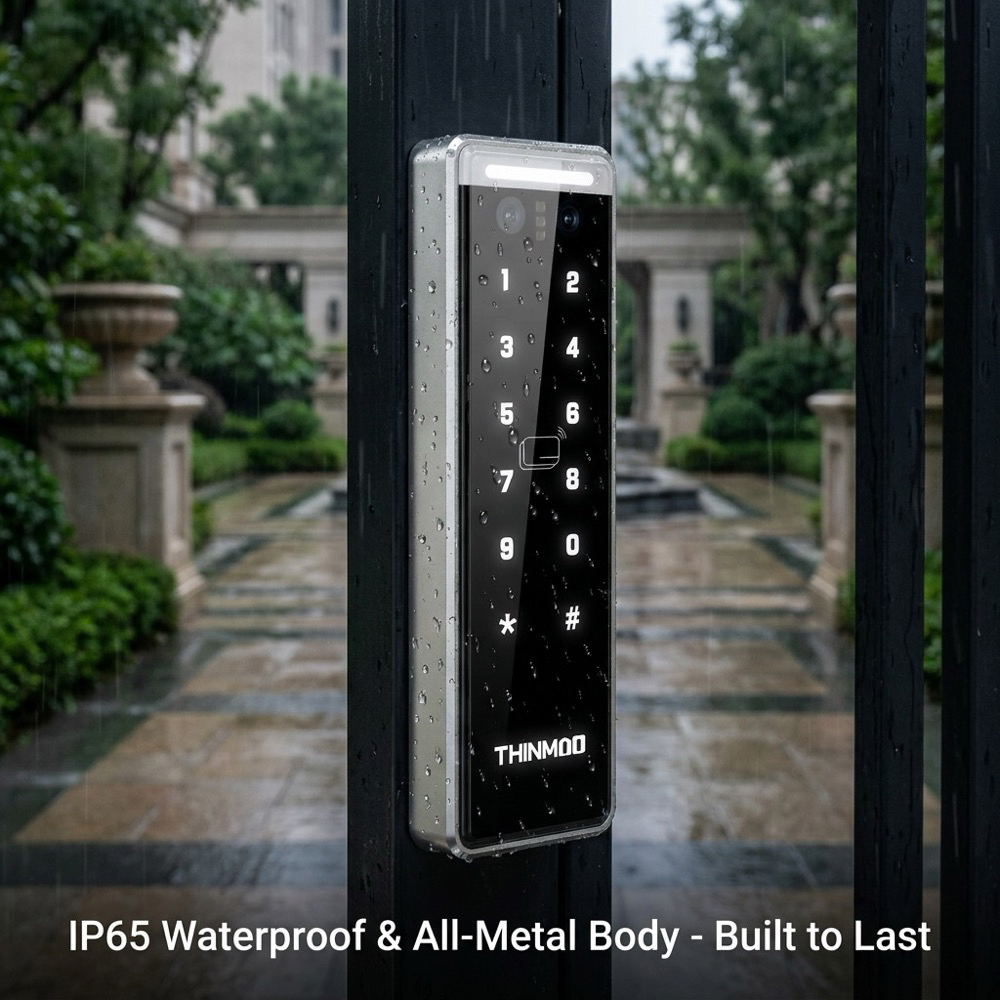

7.IP65 waterproof rating.
8.Professional access time period management supported.

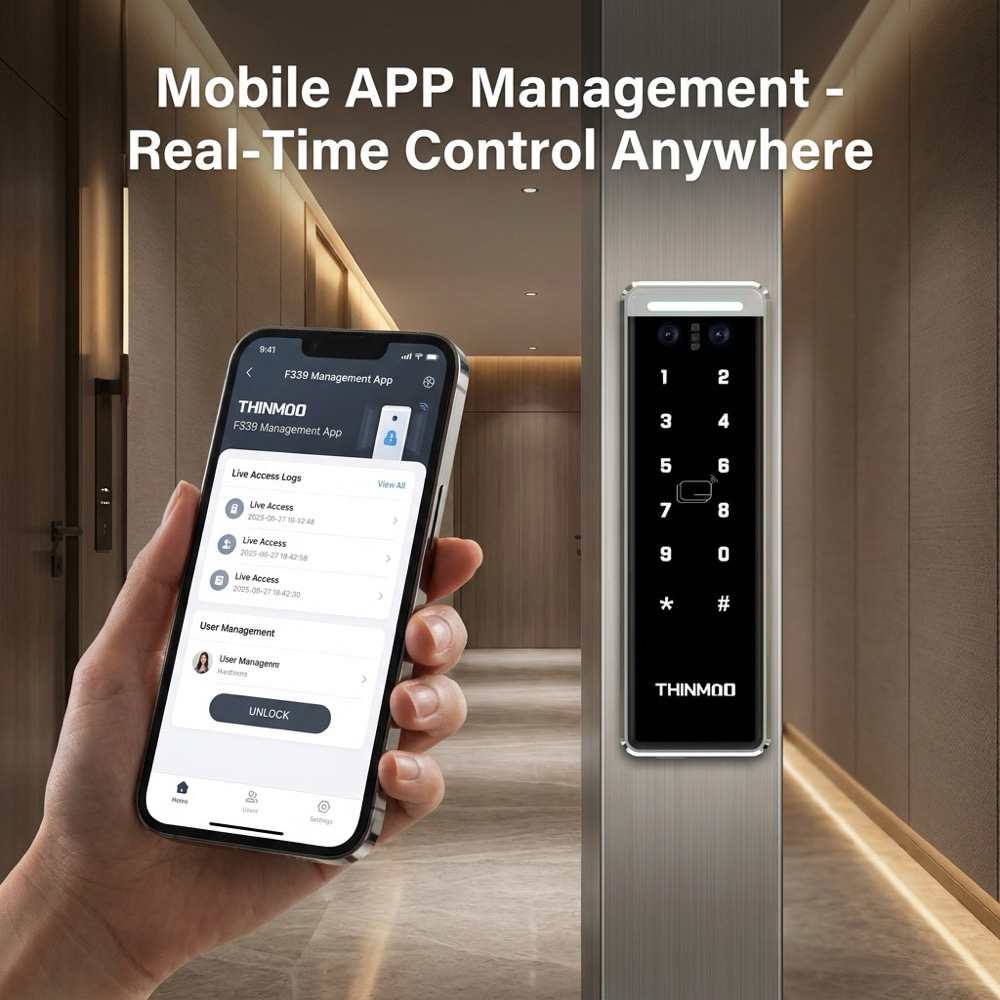

9.Mobile APP remote management.
10.Compatible with PLC controller.
1. Supports unified management of millions of IoT devices and fully adapts to cloud-based audio and video solutions.
2. A unified platform integrating video intercom, face recognition access control, cloud access control, parking management elevator control and monitoring systems.
3. Equipped with real-time event recording and supports massive data storage.
4. Provides mature API docking services to facilitate rapid project implementation and scenario deployment.
5. Delivers stable and highly scalable service capabilities.
6. Builds a secure and reliable system platform.
Main Chip
1.5GHz Main Frequency
Memory
128MB
Storage 128MB
Access Verification Methods
Face Recognition, QR Code, IC/ID Card, Password, Remote Unlock
RF Card Type
Standard: IC card (ISO 14443A/B), optional support for ID card
Access Time Period
8 groups
Network Mode
Ethernet
Card capacity
100000
Bluetooth unlocking range
within 10 meters without obstacles
Camera
200W Binocular Camera
Fill light
White light fill lamp
Indicator light
Red, green and white three-color indicator
Access I/O
1 exit switch, 1 door sensor input, 1 unlock output
Alarm input
1 channel
Wiegand interface
1-channel Wiegand output
PLC Controller
Supported
Face capacity
30000
RS485 Interface
1 channel, optional elevator control linkage
Shell material
Aluminum alloy, 2.5D tempered glass
Waterproof grade
IP65 outdoor waterproof
Operating temperature
-30℃~80℃
Operating humidity
10~90%
Power specification
12V/2A
Device dimension
140*44*24.6mm

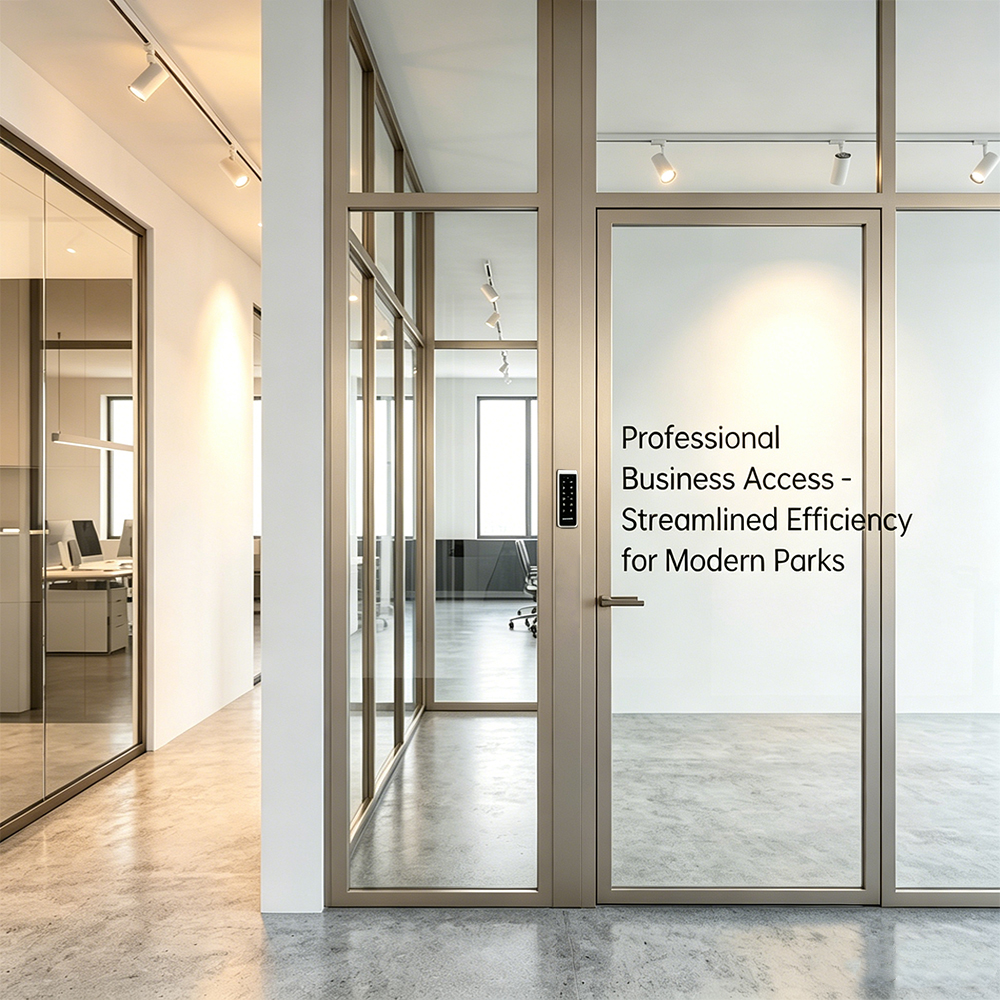

Metal Face Recognition QR Code Access Control All-in-One Device integrates face recognition, QR code, card swiping, Bluetooth and key access functions, and controls access verification via network. This metal access terminal applies to gates and elevators, verifying access of staff, residents and visitors. Adopting internet and IoT technology, it delivers convenient access experience. It supports online and offline QR code identification.
Made of full aluminum alloy, it features outdoor waterproof performance, physical metal keys and intelligent scanning induction. Multiple unlocking modes are available: QR code, card swiping, Bluetooth, remote control and key unlocking.
