Time Schedule
QR Code Open Door
Bluetooth Open Door
Swipe Card Open Door

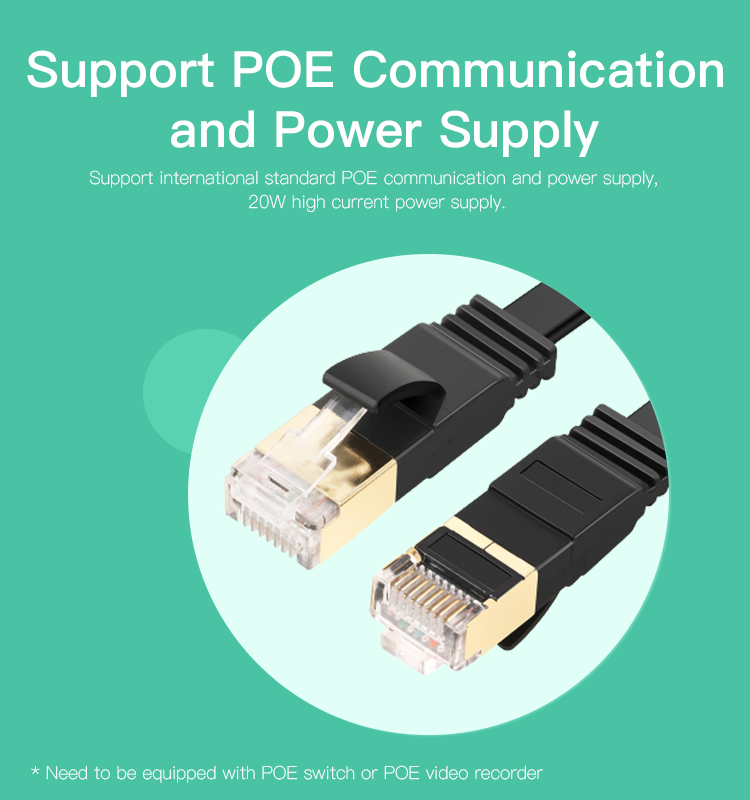

Support for POE

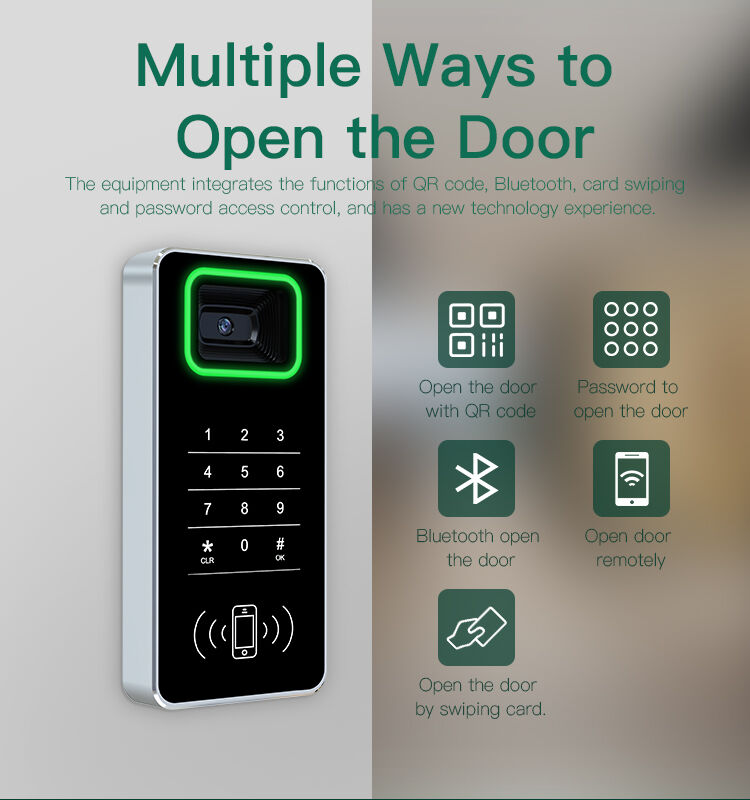

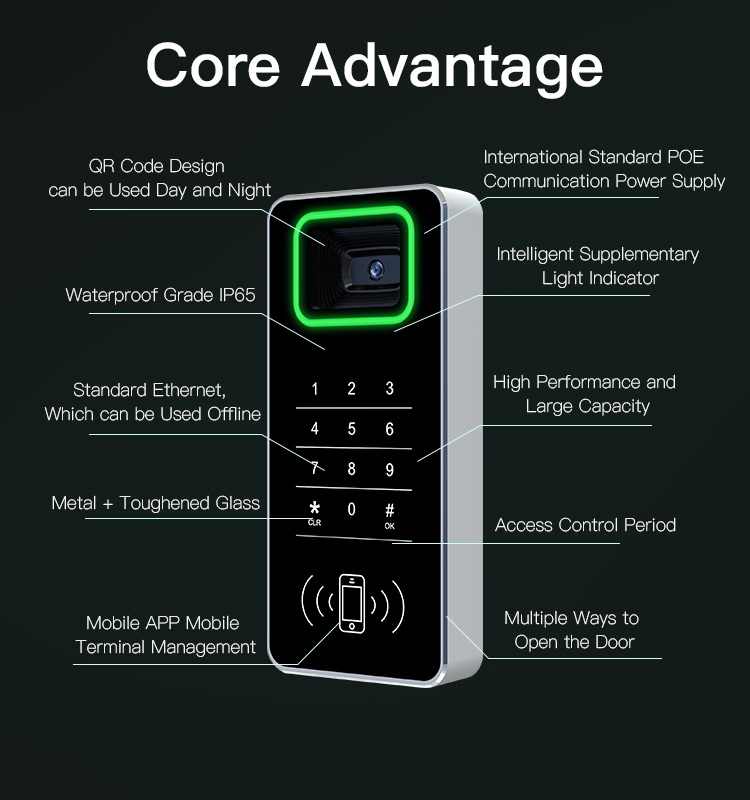

1) Integrate cloud QR code, card swiping, password and Bluetooth access control functions: the device integrates QR code, Bluetooth, card swiping and password access control functions, new technology experience.

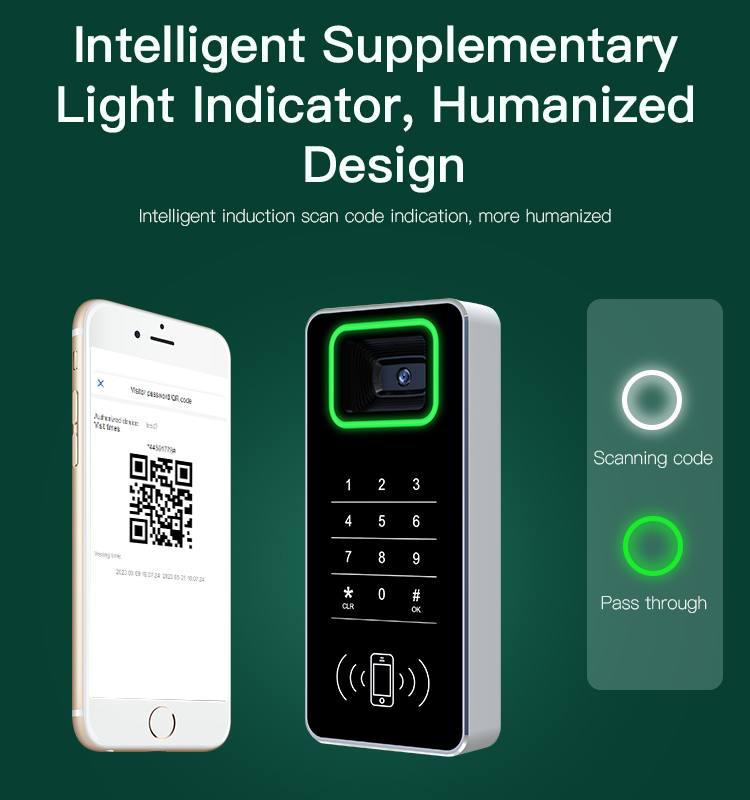

2) Intelligent supplementary light indicator, humanized design: intelligent induction scanning code indication, more humanized.

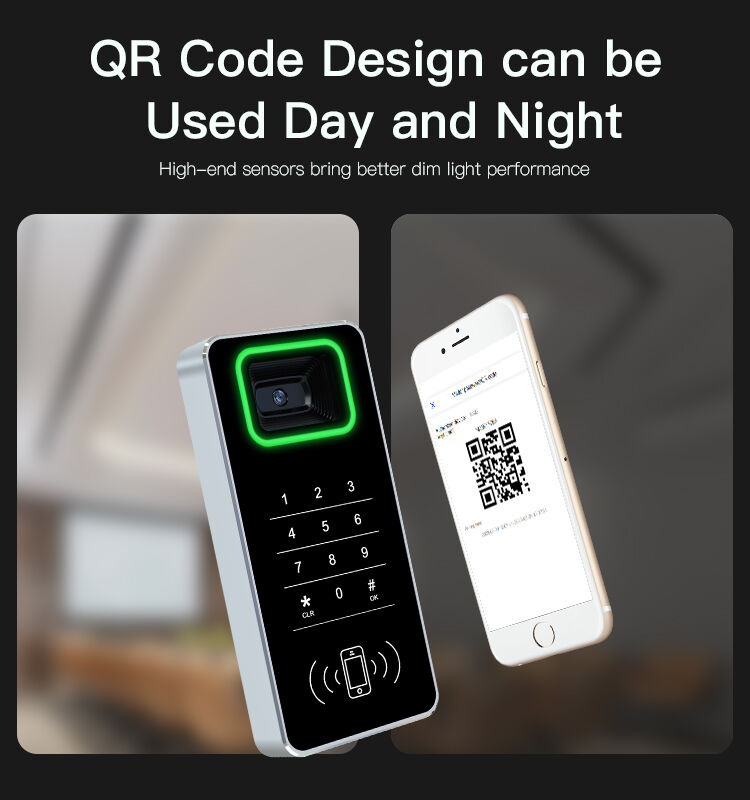

3) QR code design is available day and night: high-end CMOS, bringing better dim light performance.

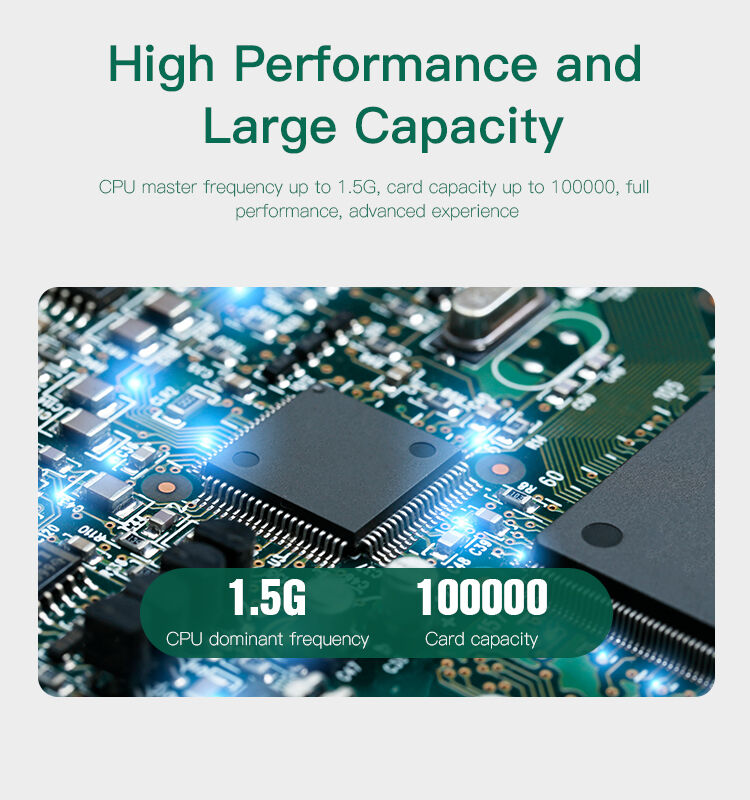

4) High performance and large capacity: the main frequency ofCPU is up to 1.5G, and the card capacity is up to 100000.

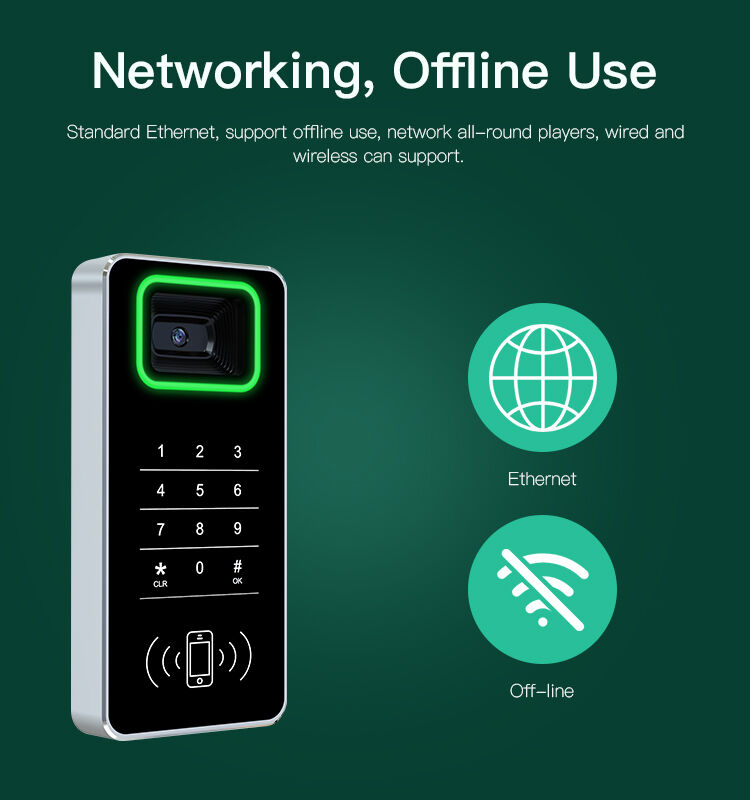

5) Ethernet and optional WiFi are standard, which can be used offline.

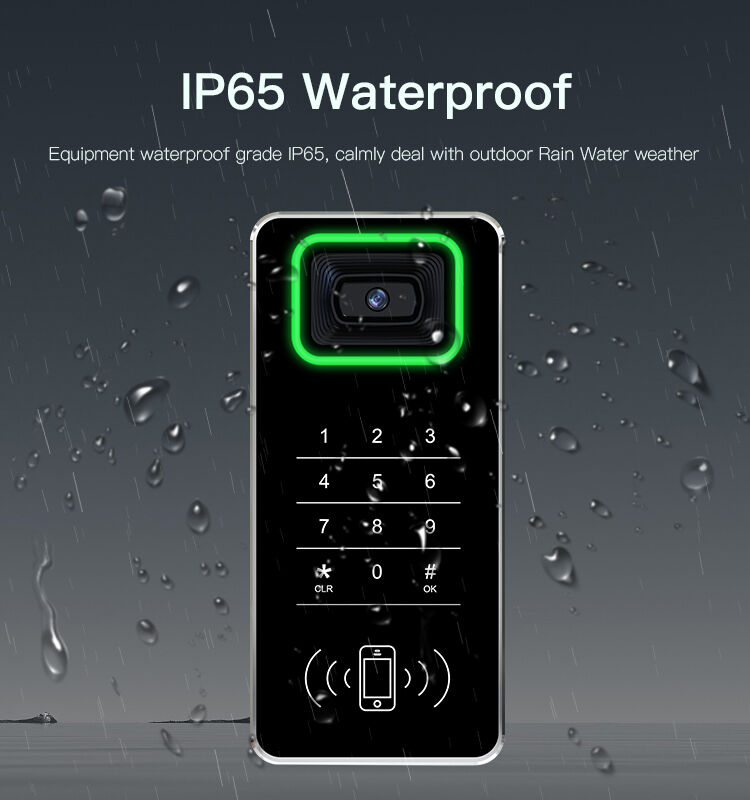

6) Equipment waterproof grade IP65: no fear of wind and rain, outdoor use.

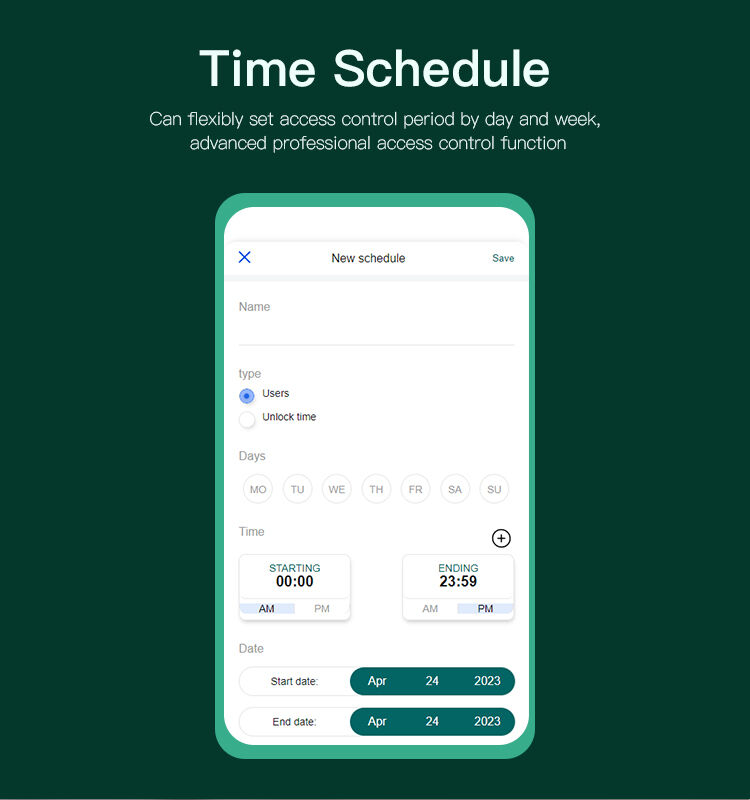

7) Support professional access control time period function: can flexibly set access control time period by day and week, advanced professional access control function.

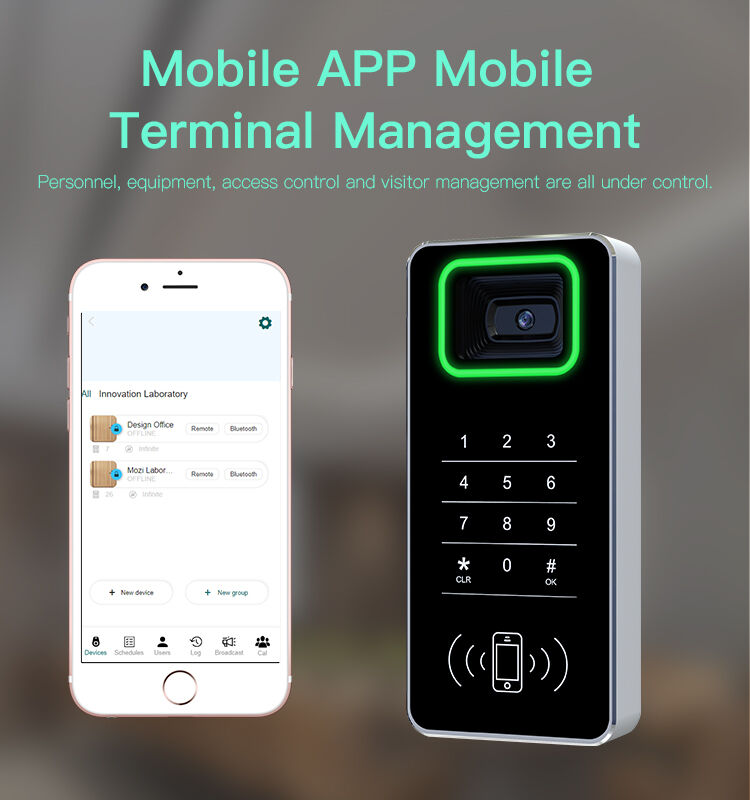

8) Mobile APP mobile management: personnel, equipment, access control, visitor management, all under control.
1) Unified management of million-level equipment on the Internet of things, fully supporting cloud audio and video solutions
2) A unified platform integrating visual intercom, face recognition access control, cloud door control, parking lot, ladder control and monitoring
3) Real-time event logging, mass storage support
4) Mature API docking service to help the scene land
5) Stable and extensible service capability
6) A secure and reliable system platform.
|
Main chip |
1.5G |
|
Memory |
128MB |
|
Storage |
128MB |
|
Door opening verification mode |
QR Code, Card, Password, Temporary Password,Remote,Bluetooth |
|
Radio frequency card type |
IC (ISO144443A/B), ID optional support |
|
Press the key |
12 key |
|
Networking mode |
Ethernet |
|
Card capacity |
100000 |
|
Bluetooth door opening distance |
Barrier-free within 10 meters |
|
Time shcedule |
Support |
|
Supplementary lamp |
White light supplementary lamp |
|
Cue lamp |
Red, green and white cue lights |
|
Access control input and output |
All the way out the door switch, one door magnetic input and one door output |
|
Alarm input |
1-way alarm input |
|
Weigen interface |
1-way Weigen output interface |
|
RS485 interface |
1-way RS485 interface, optional configuration for ladder control linkage |
|

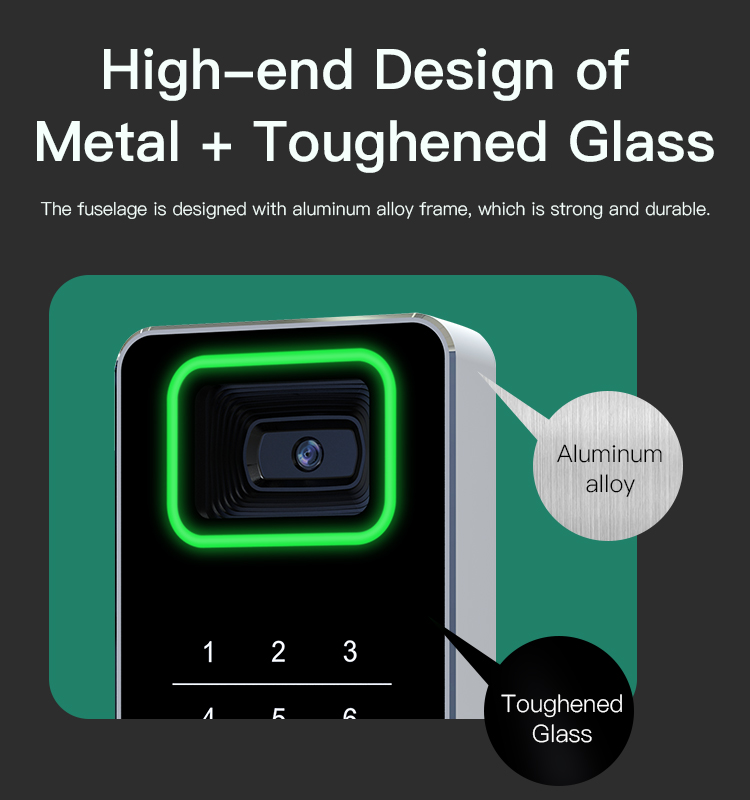

Shell material |
Metal, tempered glass |
|
Waterproof grade |
IP65 outdoor waterproofing |
|
Operating temperature |
-30℃~80℃ |
|
Working humidity |
10-90% |
|
Power specification |
12V/2A |
|
Equipment size |
78*23.5*169mm |

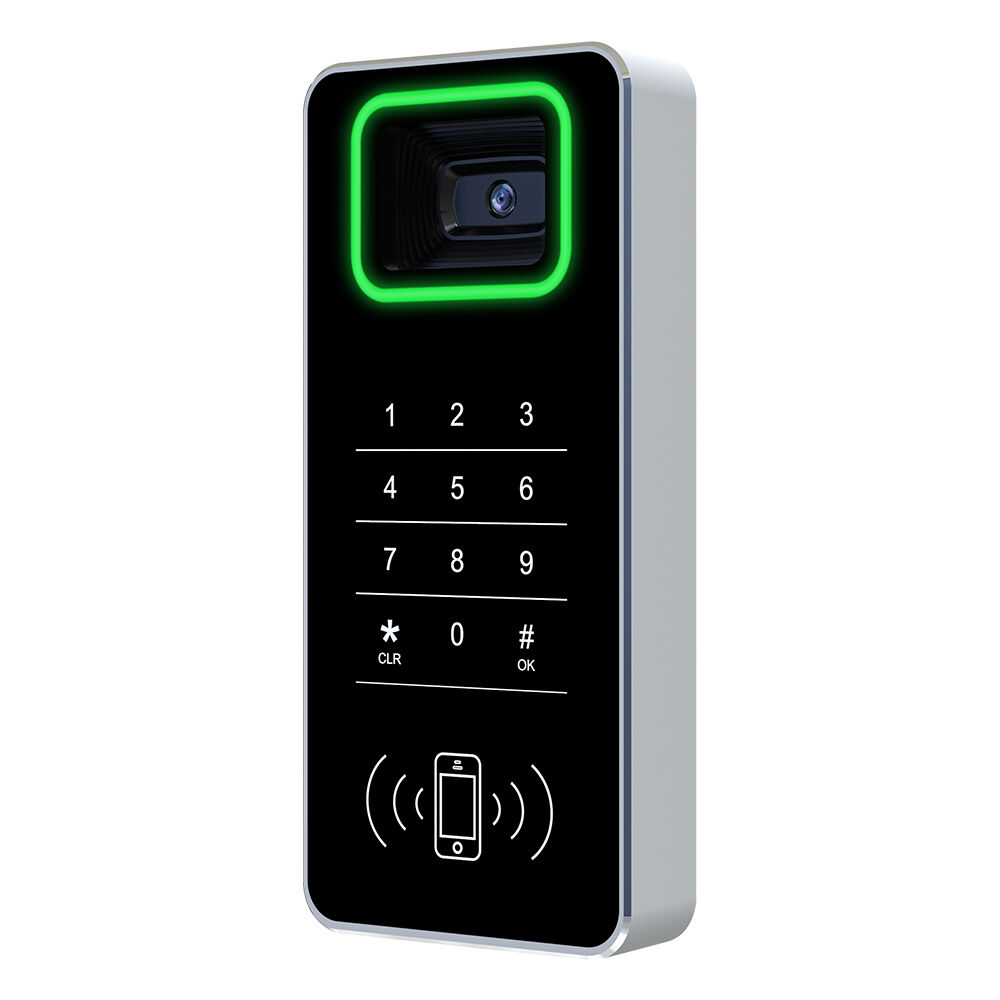

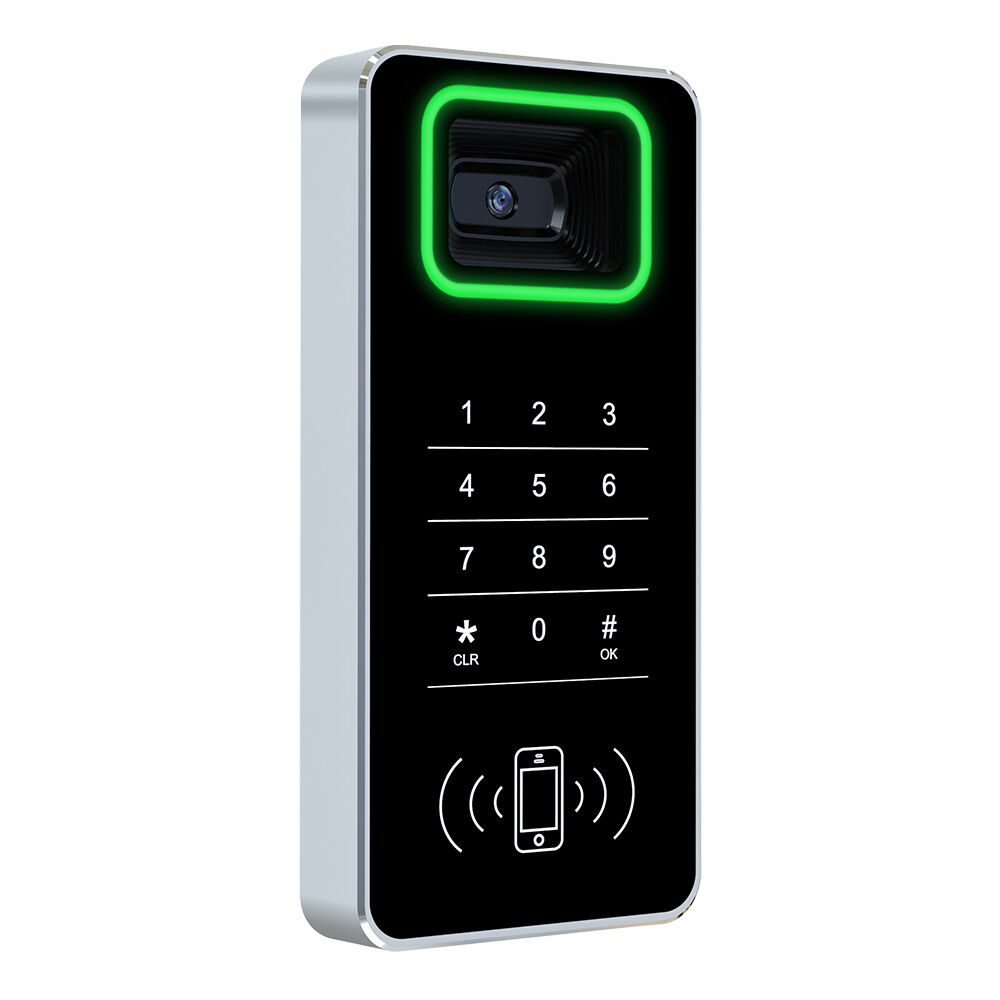

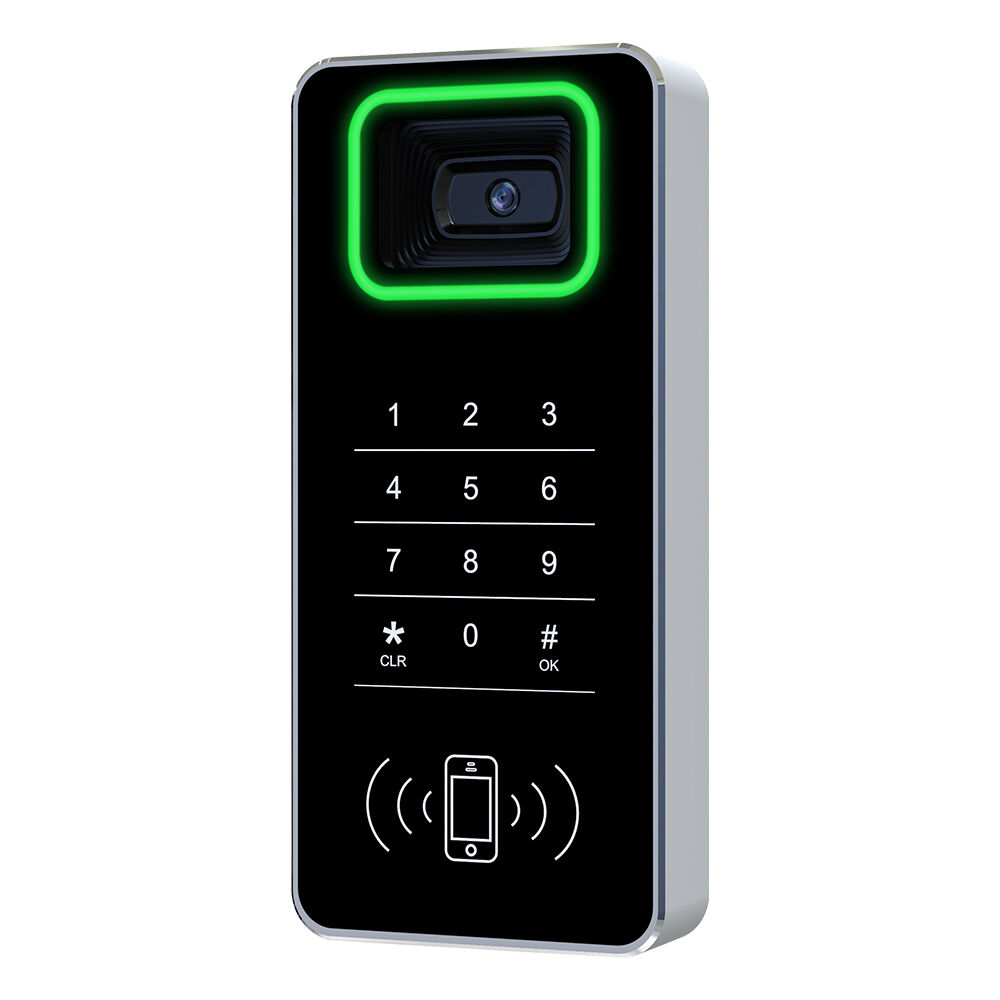

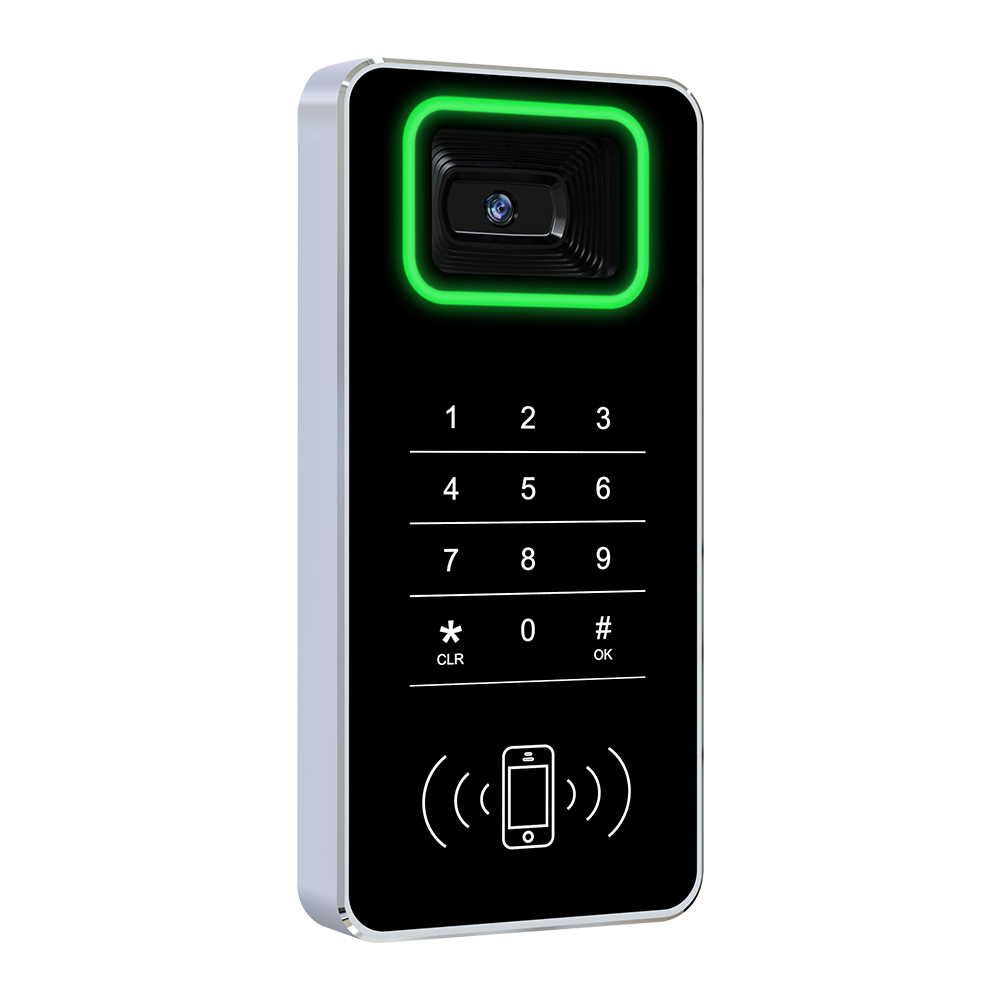

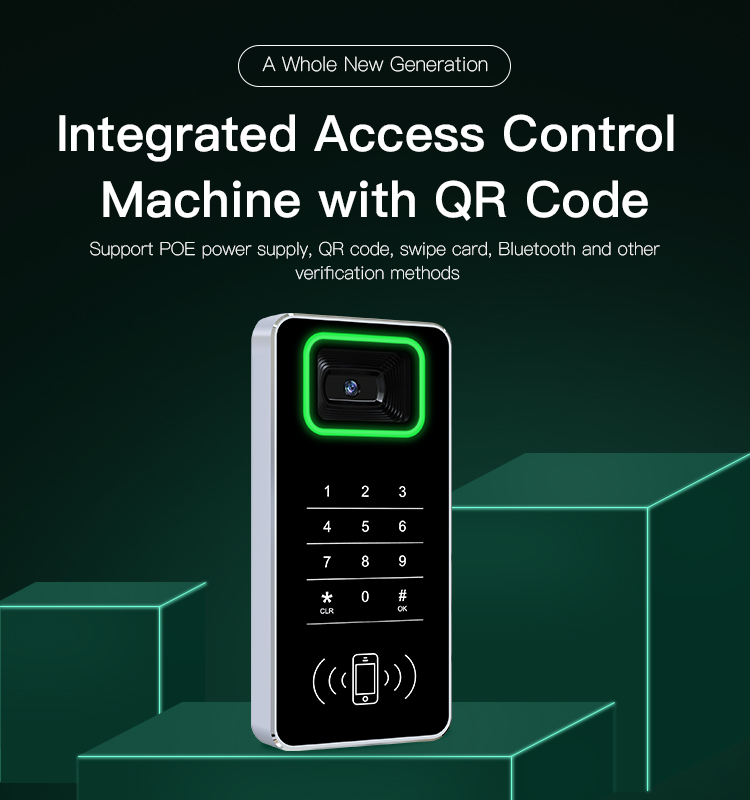

Metal waterproof QR code access control machine is a metal entrance access control device with integrated QR code, card swiping,
Bluetooth and other functions to control QR code scanning and verification through the network. It can be used in access control and elevators. It can achieve access verification for employees, owners and visitors, and achieve convenient access experience through the Internet and Internet of things advanced technology. Support networking and offline QR code recognition. Aluminum alloy frame
design, outdoor waterproof, intelligent code scanning sensor, open the door by QR code, swipe card, Bluetooth door, remote door and so on.
