Cloud video intercom
Facial recognition
AI algorithm
NPU smart chip
Intelligent voice
1.7-inch high-definition full touchscreen design;
2.Integrates face recognition, video intercom, and access control functions;
3.High-speed CPU with built-in NPU, embedded Linux system;

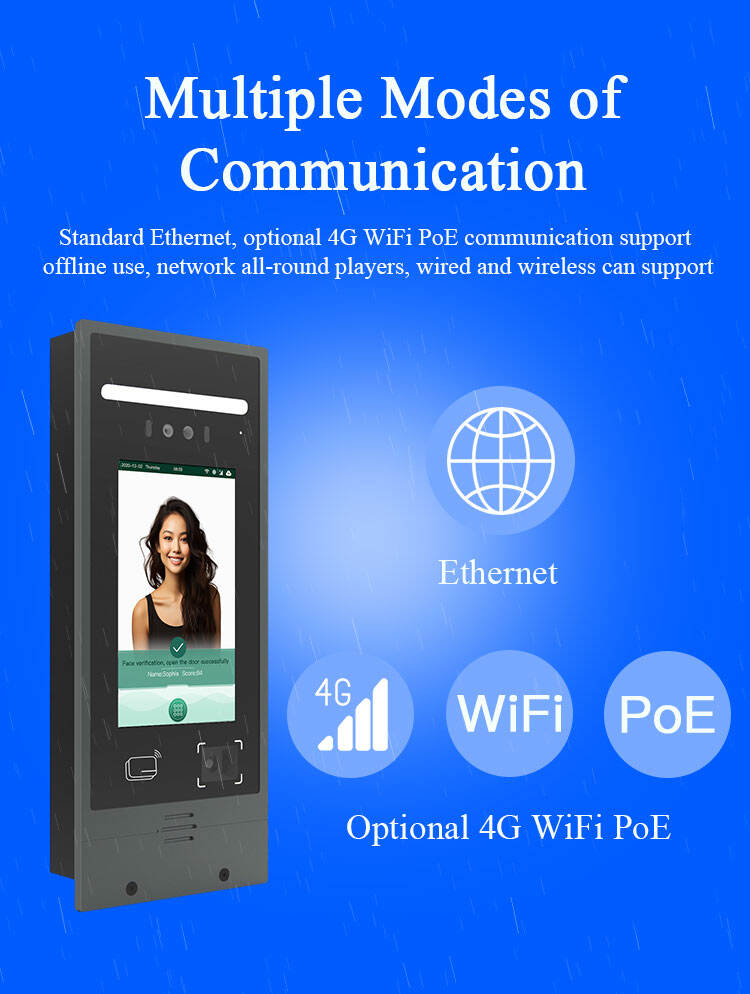

4.Standard Ethernet support, optional 4G/WiFi/PoE;

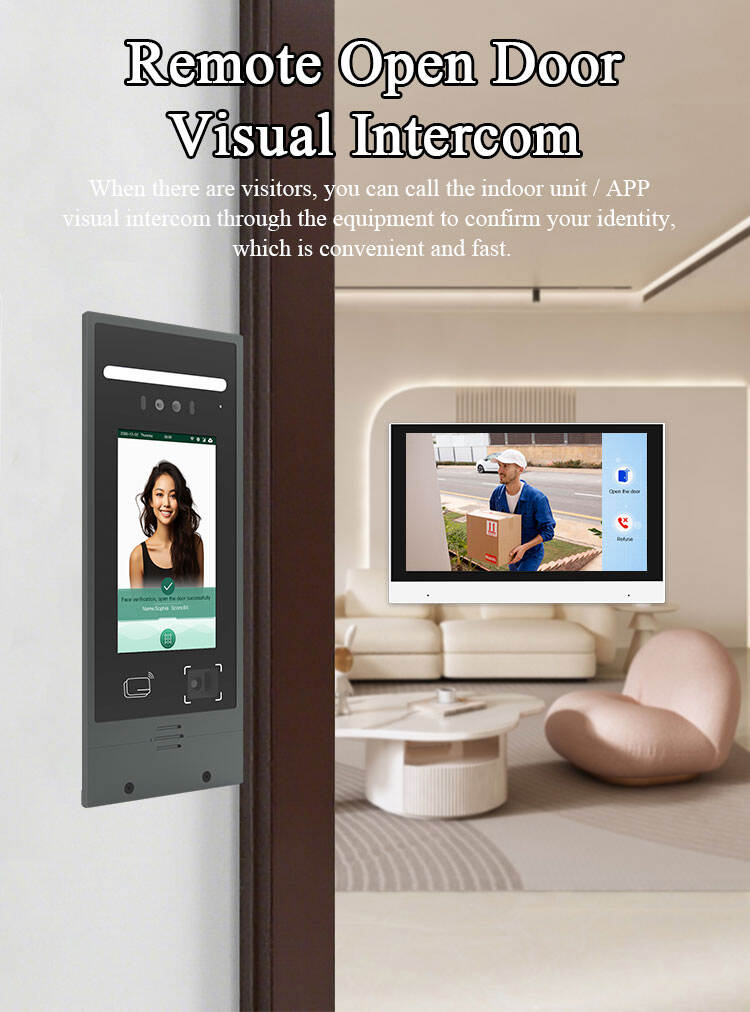

5.Multiple unlocking methods: mobile Bluetooth, remote mobile unlocking, face
recognition, video intercom, optional QR code, card swiping, PIN code, call transfer unlocking, indoor unit unlocking, and more;
6.2MP HDR dual-lens liveness detection for anti-spoofing;

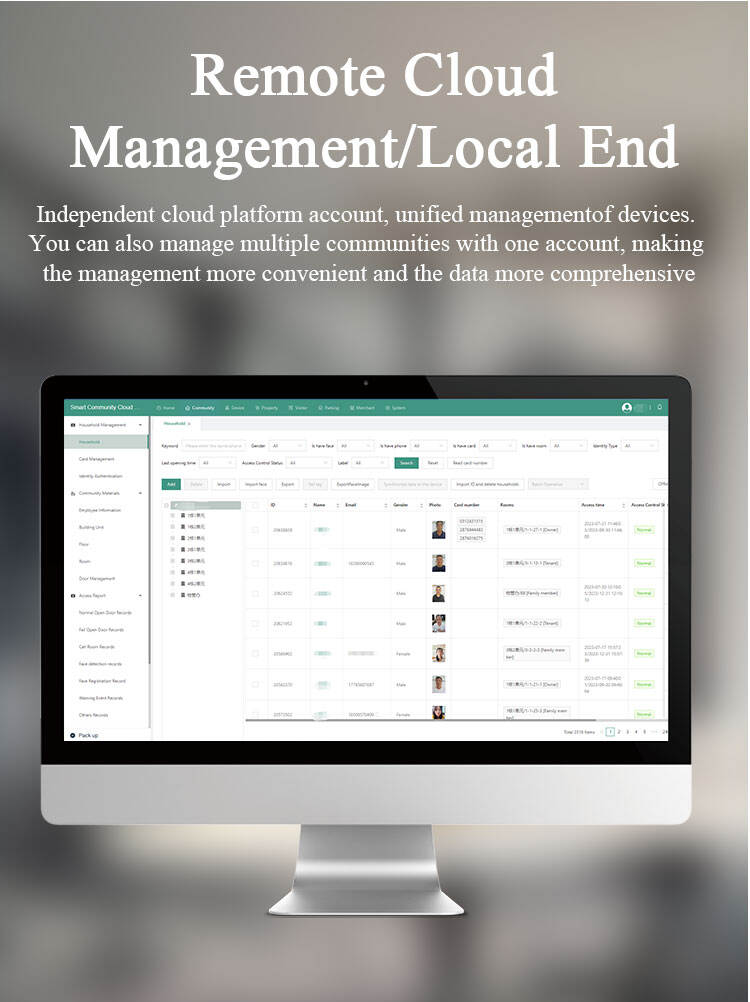

7.Supports local or remote cloud management to minimize on-site maintenance;
8.Supports helmet-wearing recognition;

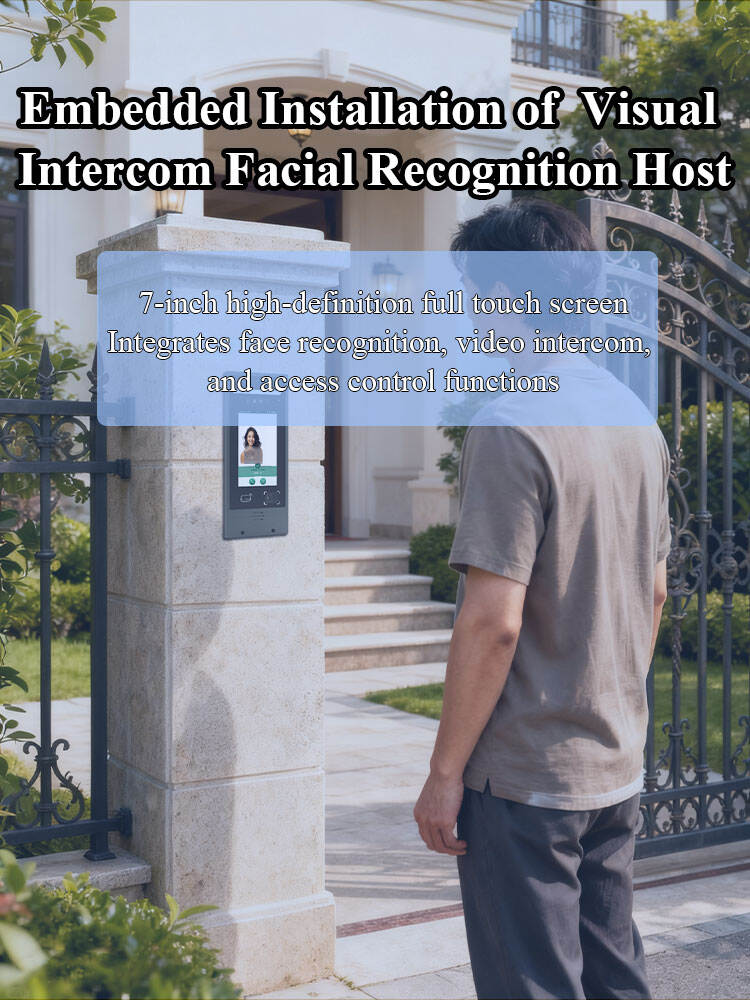

9.Embedded front-installation design, concealed rear wiring, built-in antenna, and PoE support for easy installation;
10.Full-metal housing with aluminum alloy and tempered glass design.
1.Unified IoT platform integrating face recognition, access control, video intercom, parking, charging, elevator control, surveillance, and more;
2.Comprehensive operational platform for property fee collection, parking payments,
EV charging pile management, contract management, tenant management, shared space management, utilities, and equipment maintenance;
3.Supports integration with proprietary and third-party hardware;
4.Mature API services for seamless system integration;
5.Leading smart space management solutions;
6.Proven success with 10,000+ smart campus and smart community deployments.
|
System |
Linux |
|
Main chip |

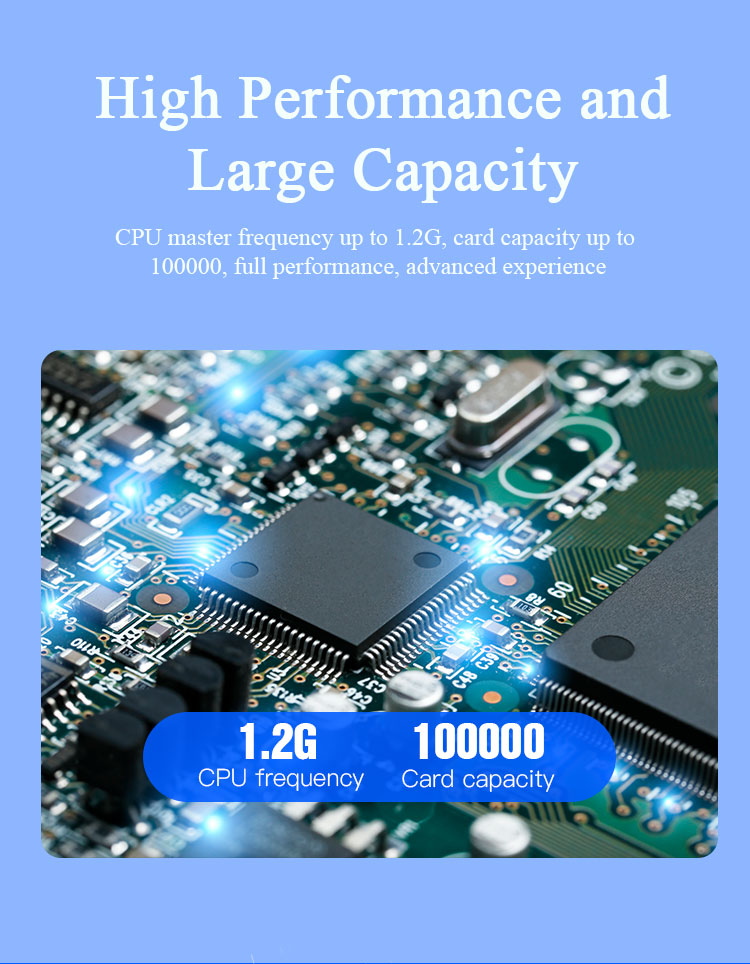

Dual-core 1.2GHz |
|
NPU |
1T |
|
Screen size |
7 inch 600*1024 |
|
Touch |
Full screen capacitive touch |
|
Memory |
512MB |
|
Storage |
4GB |
|
Camera |
2MP dual-lens, anti-backlight wide dynamic camera |
|
Dialing mode |
Optional room number input, one-touch intercom doorbell, mobile number dialing* |
|
Agreement |
SIP* |
|
AI Recognition |
Face recognition, helmet-wearing detection, automatic face detection wake-up |
|
Audio frequency |
PCMU |
|
Microphone |
Omnidirectional |
|
Speaker |
8Ω2W |
|
Face capacity |
30000 |
|
Card capacity |
100000 |
|
Event Log |
300000 |
|
Radio frequency card type |
IC（ISO14443A/B)，Mifare/CPU |
|
Elevator control function |
Support |
|
Face recognition |
Optional |
|

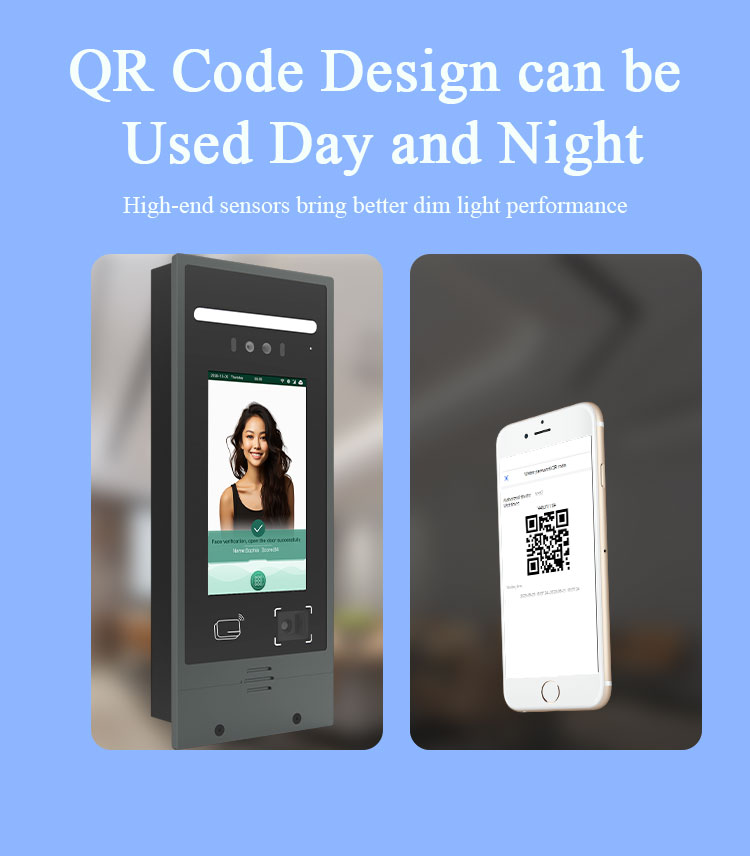

QR code |
Optional |
|
External Access Reader |
Support |
|
Wiegand output |
Support |
|
Way of opening the door |
Face recognition, mobile Bluetooth, remote unlocking, card swiping, optional palmprint recognition |
|
Access Time Control |
Support |
|
Always Open |
Support |
|
Bluetooth Unlocking Range |
Up to 10m (unobstructed) |
|
Communication |
Standard Ethernet, optional 4G, WiFi, PoE |
|
Access Control |

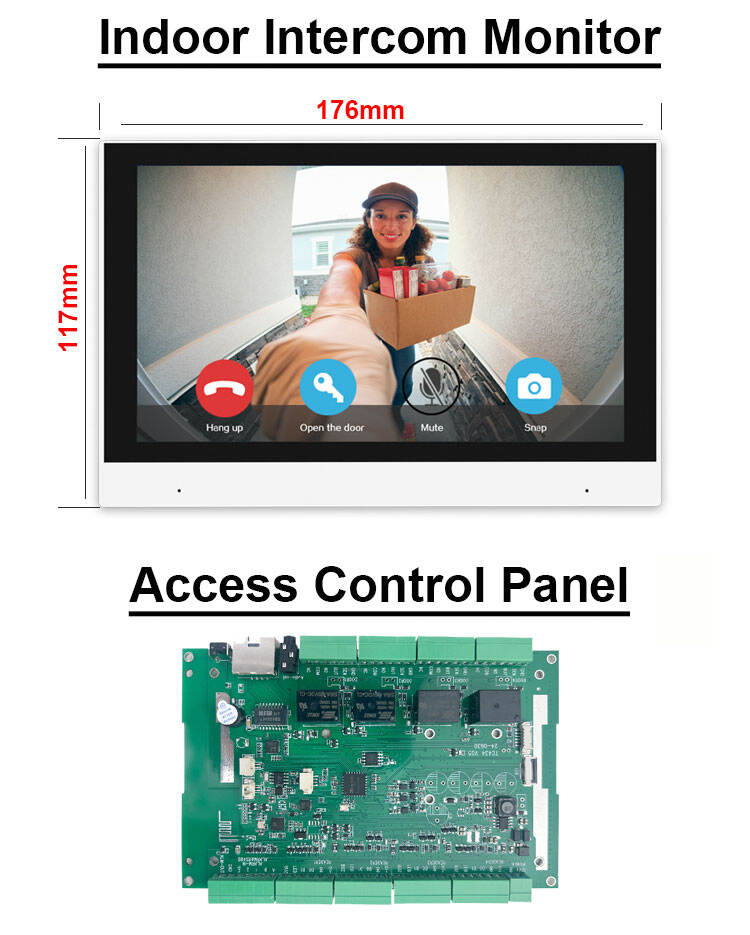

1 door sensor, 1 unlock relay, 1 exit button, 1 Wiegand input, 485 expansion interface |
|
Housing Material |
Aluminum alloy+sheet metal |
|
Panel material |
Toughened glass |
|
Installation mode |
Wall-mounted, gate pillar |
|
Device size |
336*140*45.5mm |

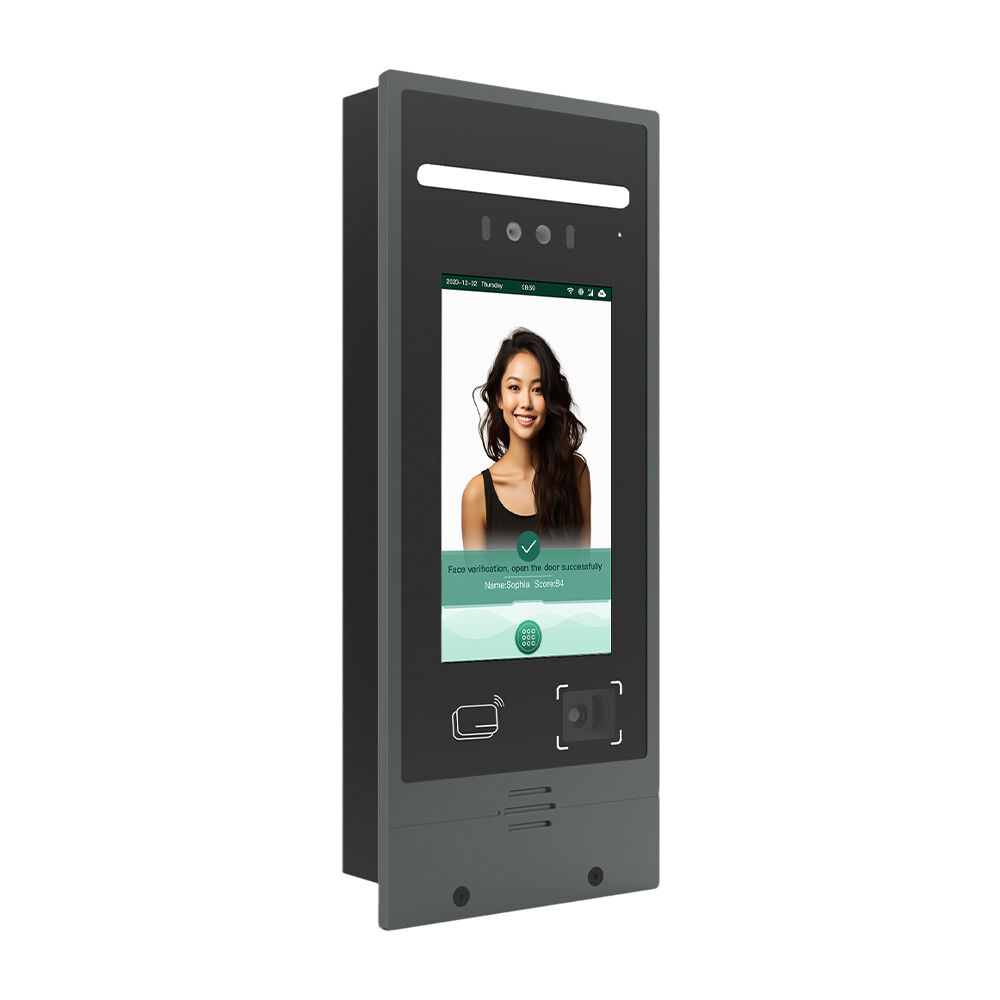

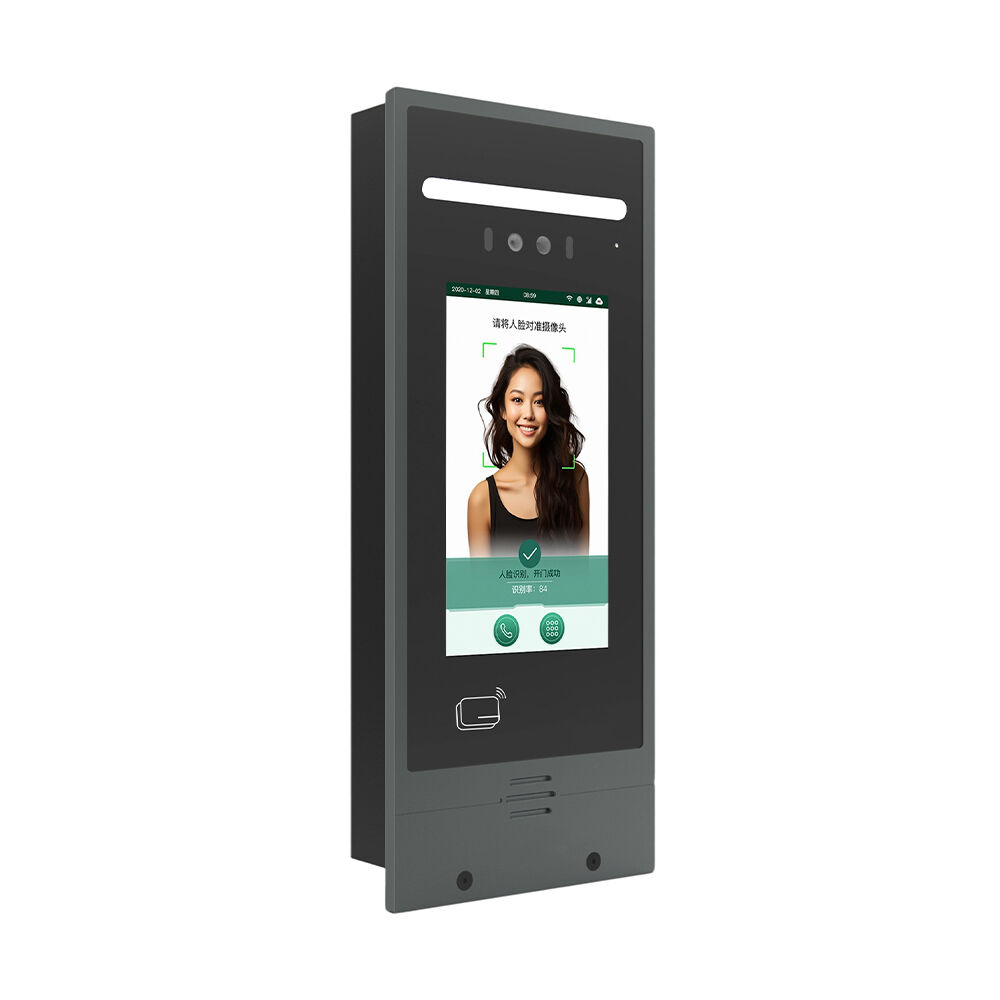

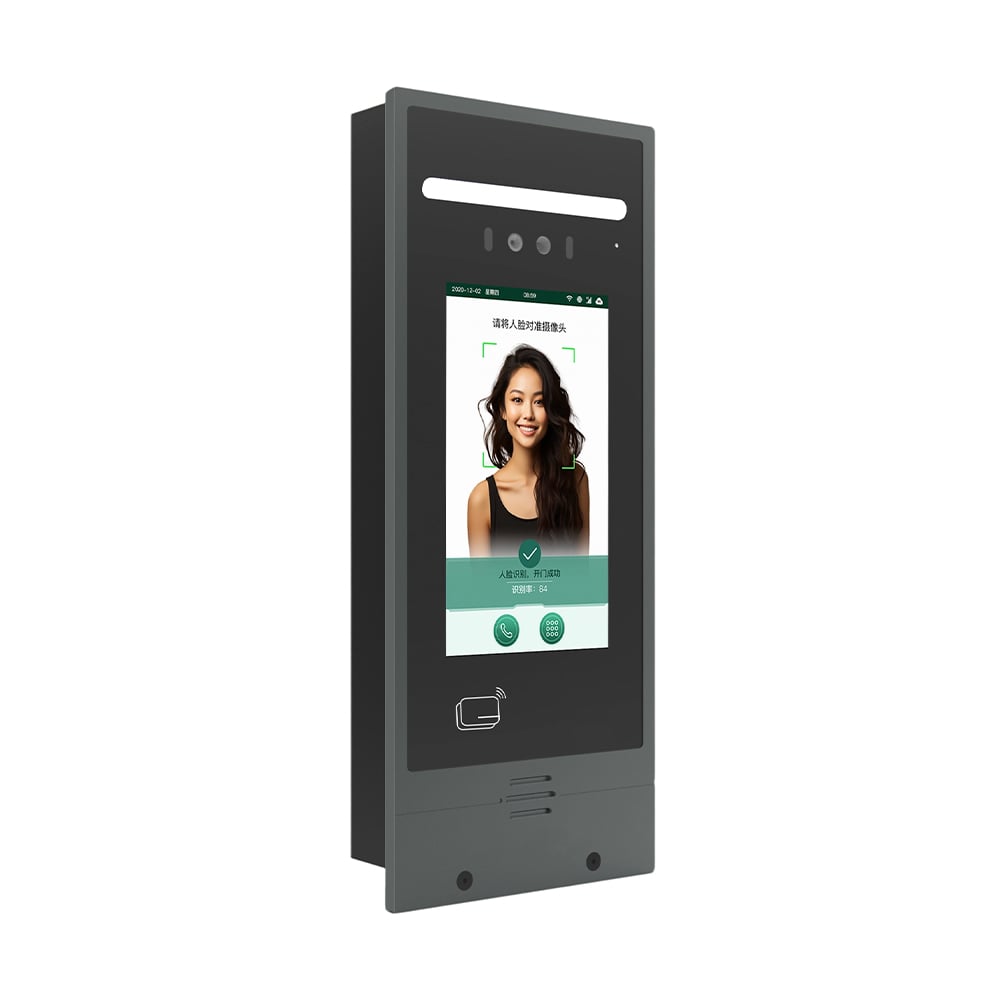

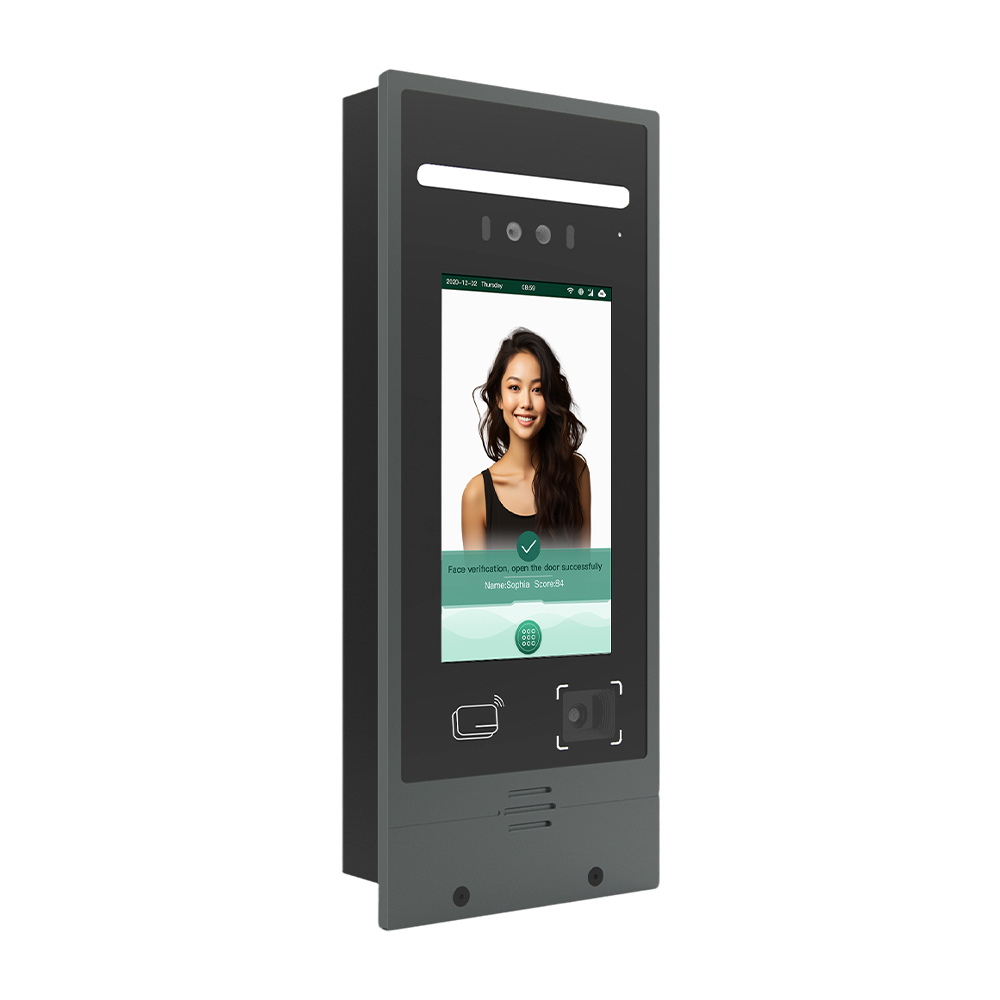

The VF637 Face Recognition Video Intercom Terminal is a high-performance, highly
reliable face recognition video intercom access control product designed for embedded
installation. Equipped with a high-performance CPU featuring an integrated NPU and deep learning algorithms, it delivers fast recognition speed and higher accuracy. It supports
multiple verification methods, including face recognition, video intercom (via app or
WeChat Mini Program), Bluetooth, and IC cards. Featuring a 7-inch full HD touchscreen, it is also compatible with wall-mounted installation. Ideal for communities, campuses,
schools, kindergartens, hospitals, and other similar settings.
