Real time authentication comparison

Touch screen operation

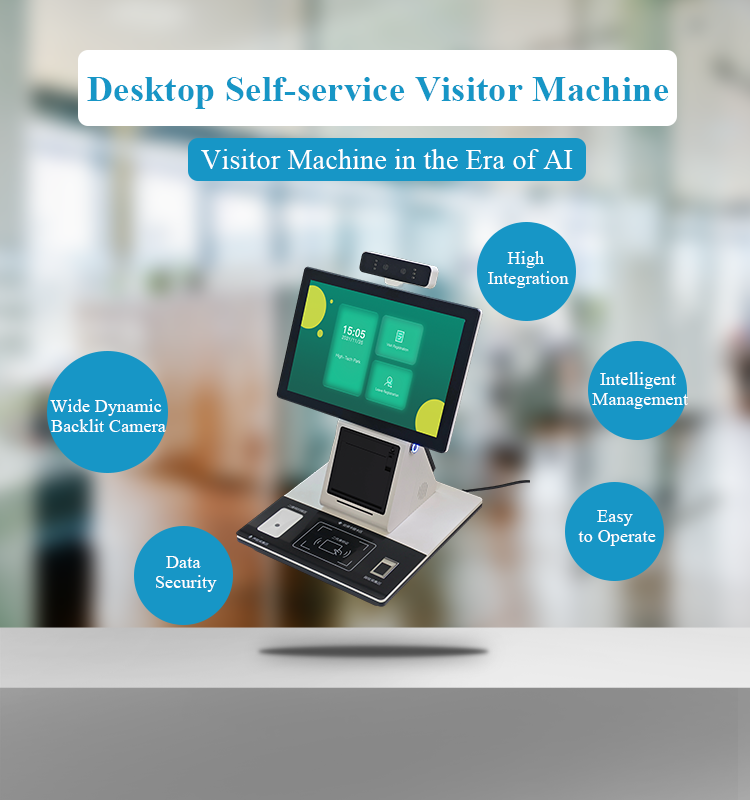

1) High integration: One machine for multiple purposes, integrating multiple functions such as identity verification, visitor information management, sign off registration, etc;
2) Intelligent Management: Adopting an intelligent management system to replace the traditional handwritten registration mode and achieve intelligent management of visitor access;
3) Easy to operate: user-friendly interface, simple operation, even non professionals can quickly get started;
4) Wide dynamic backlight camera: Wide dynamic backlight recognition;
5) Data security: It can effectively protect visitors' personal information and prevent data leakage.

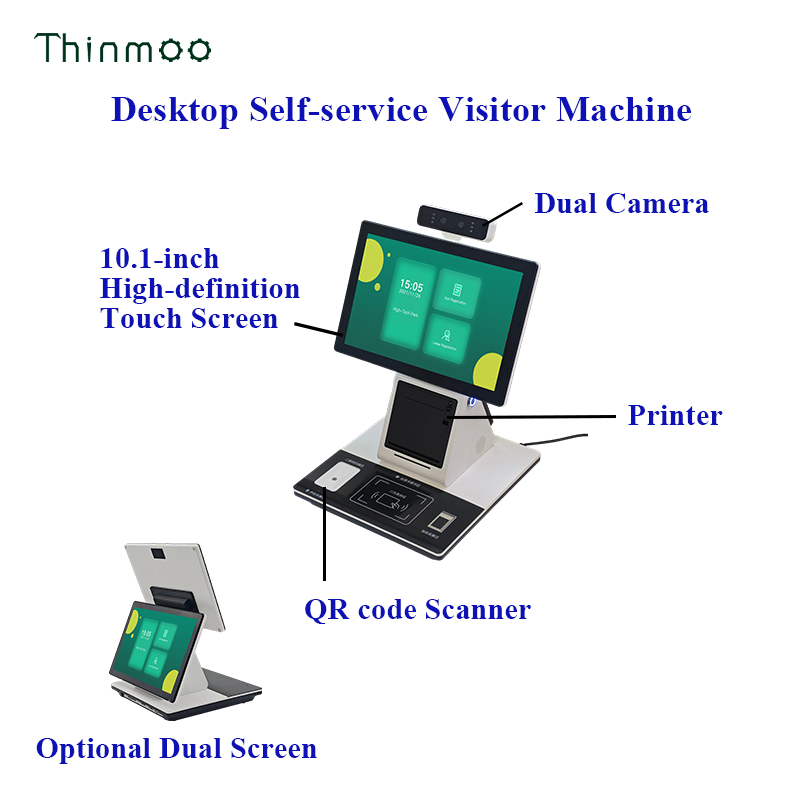

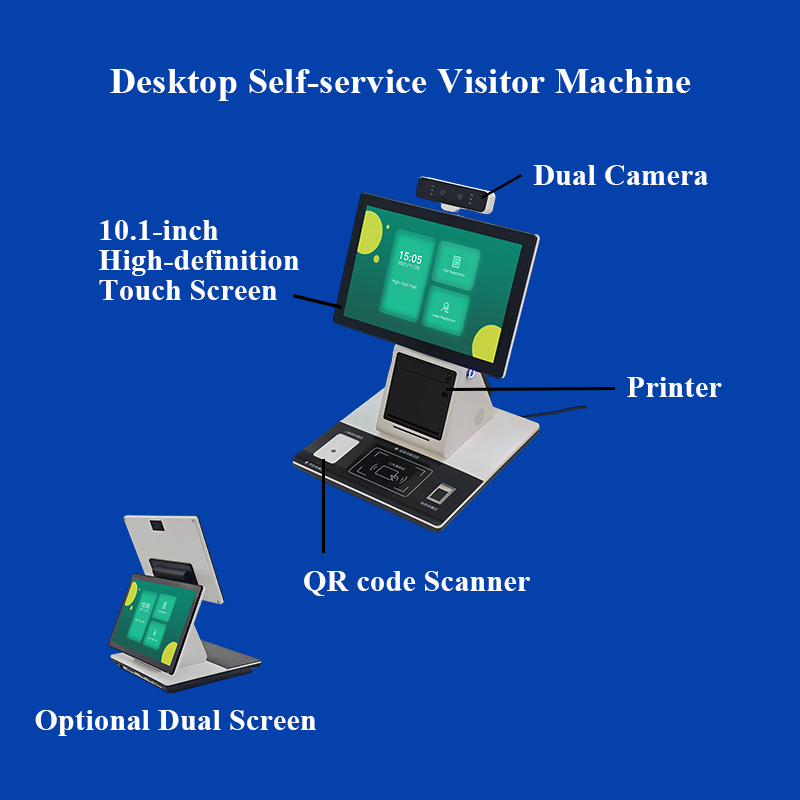

1) Large screen display: selectable/dual screen, the main screen is used for operator management, and the secondary screen provides information display and interaction for visitors;
2) Facial recognition and identity verification: optional built-in high-definition camera and ID card reader, capable of quickly identifying visitors' facial features and matching them with
their bodies.Compare the information of the documents to ensure the unity of the person and the document;

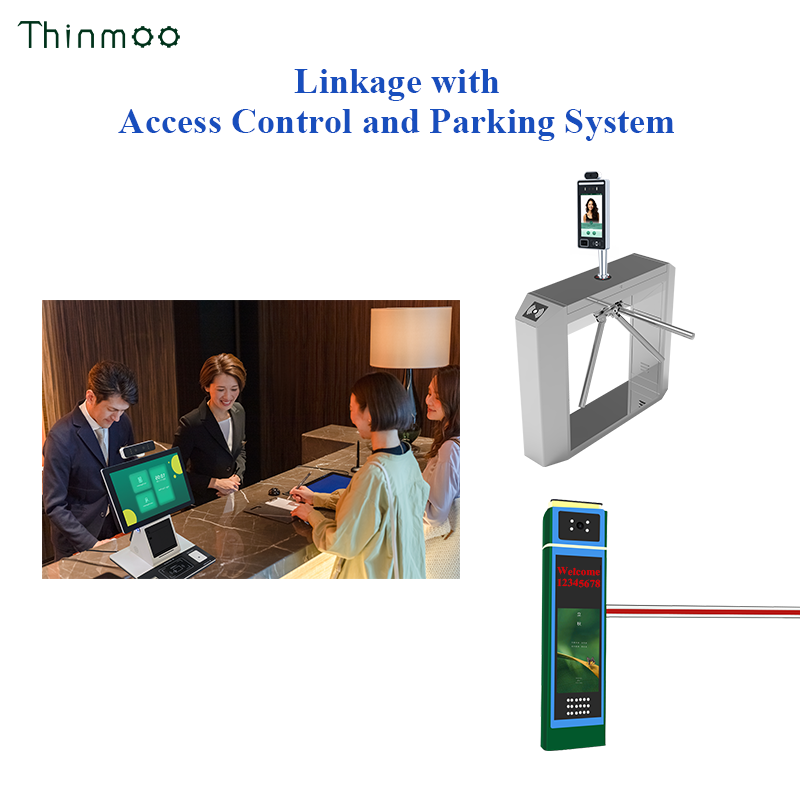

3) Support access control, elevator control, and parking linkage;
4) Standard high-definition binocular camera;
5) Self registration and information collection: Visitors can enter their personal information through the touch screen, including name, phone number, and personal information
Scanning of documents, etc;
6) Visitor receipt printing: After the visitor registration is completed, the system will
automatically print the visitor receipt, which includes the visitor's basic information and Access permissions, etc;
7) Appointment and real-time notification: Visitors can make appointments in advance through the system, and the system will promptly notify the interviewee of their information, thereby
improving their experience Reception efficiency;
8) Application scenarios: Desktop self-service visitor machines are widely used in government halls, parks, residential areas, enterprises and institutions, schools, hospitals, and hotels
Places that require identity verification and management of visitors. It can effectively improve the efficiency and accuracy of visitor registration, while ensuring the safety of the venue
The safety.
|
System |
Android 11 |
|
Master Chip |
Four core A55 2.0G |
|
NPU |
1T |
|
Screen Size |
Single/Dual Screen 10.1 inch,800*1280 |
|
Key |
Touch button, 16 keys, optional full screen touch |
|
Memory |
2G |
|
Storage |
16GB |
|
Camera |
Binocular camera |
|
Touch |
Single screen/dual screen electronic smart touch |
|
Communication Method |
Standard Ethernet WiFi |
|
Identification Mark |
Optional |
|
Microphone |
Microphone |
|
Speaker |
8 euros and 2 watts |
|
RF Card Type |
IC(ISO14443A/B), Mifare/CPU |
|
Printer |
Optional |
|
Access control, elevator control, and parking linkage |
Optional support for access control, elevator control, and parking linkage |
|
Signature |
Not Supported |
|
QR Code |
Optional |
|
Visitor Information |
VisitorIs name, surname, optional photo, within the scheduled visit date, outside the scheduled time Interviewee department, interviewee, purpose of visit |
|

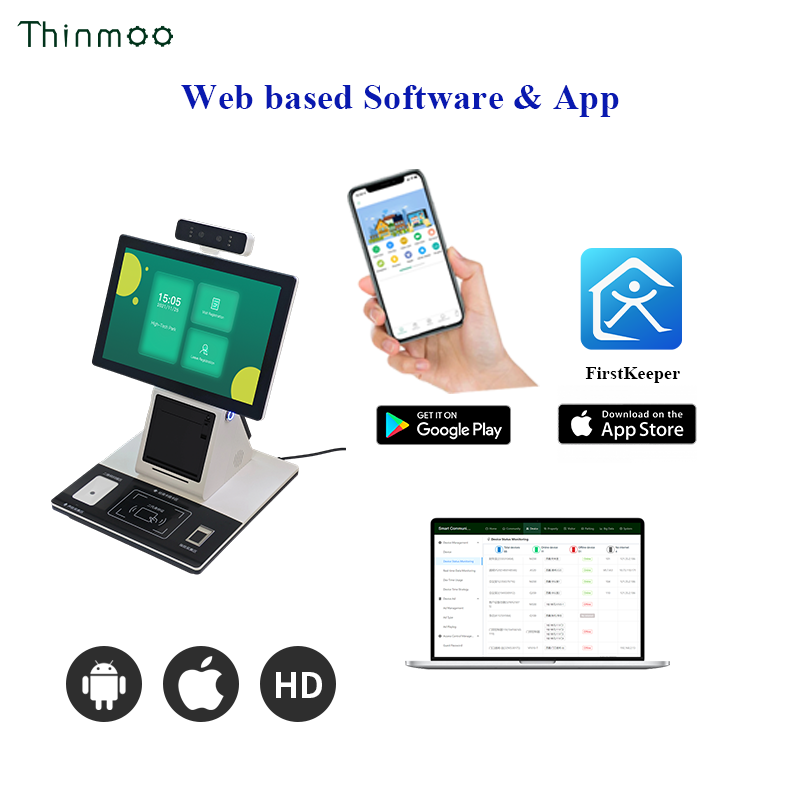

Software |
Local software or cloud platform |
|
Event record |
300000 , local and cloud storage |
|
Shell material |
ABS8PC&aluminum alloy |
|
Installation Method |
Desktop |

Single Screen Front

Single Screen Side

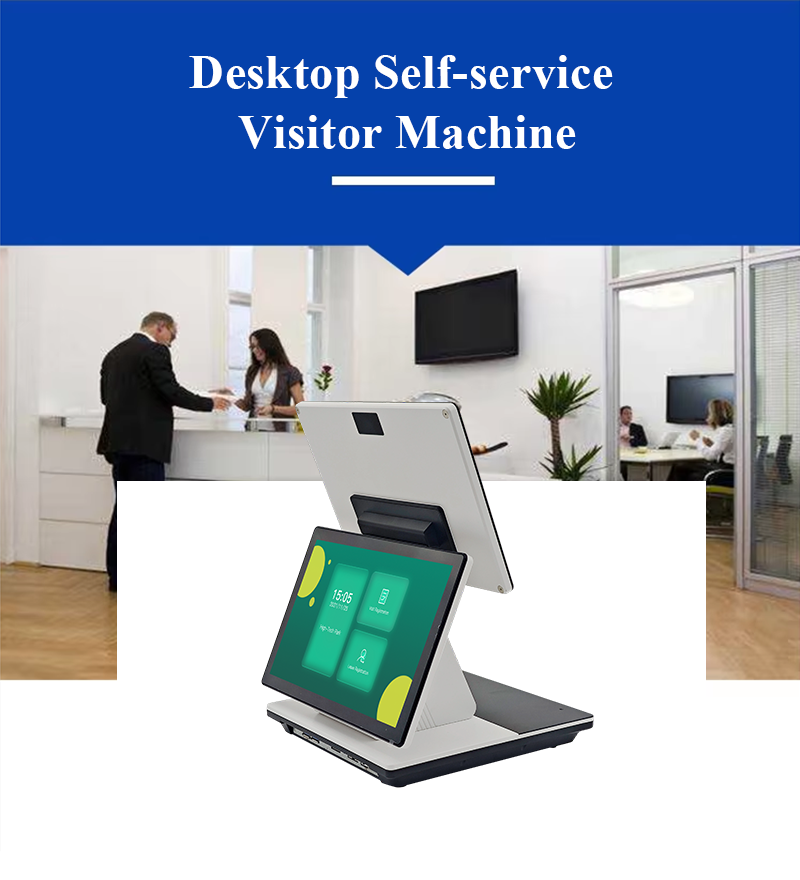

Dual Screen Side

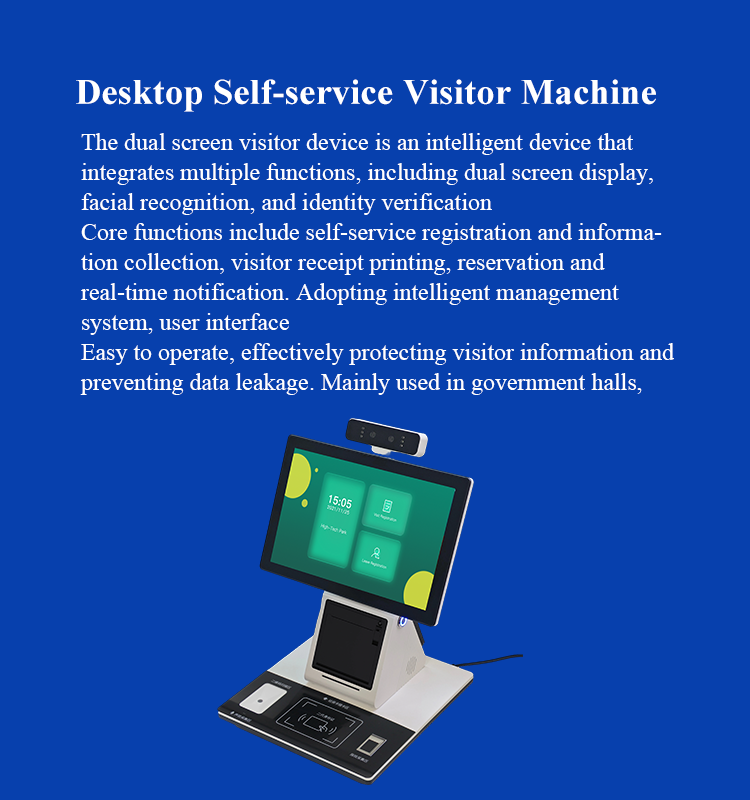

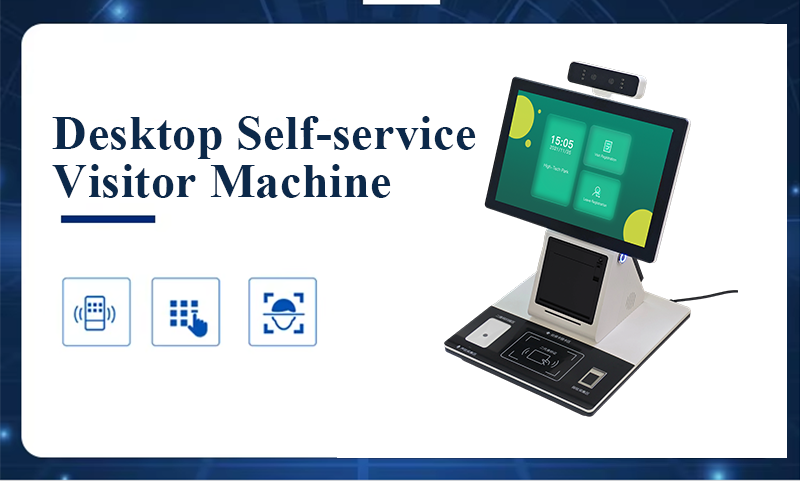

VG3021 desktop self-service visitor intercom is an intelligent device that integrates multiple
functions, including large screen display, facial recognition, and identity verification.Core functions
include self-service registration and information collection, visitor receipt printing, reservation and
real-time notification. Adopting intelligent management system, user interface.Easy to operate,
effectively protecting visitor information and preventing data leakage. Mainly used in government
halls, parks, residential areas, enterprises and institutions, and schools.Visitor management in schools, hospitals, and other places.
