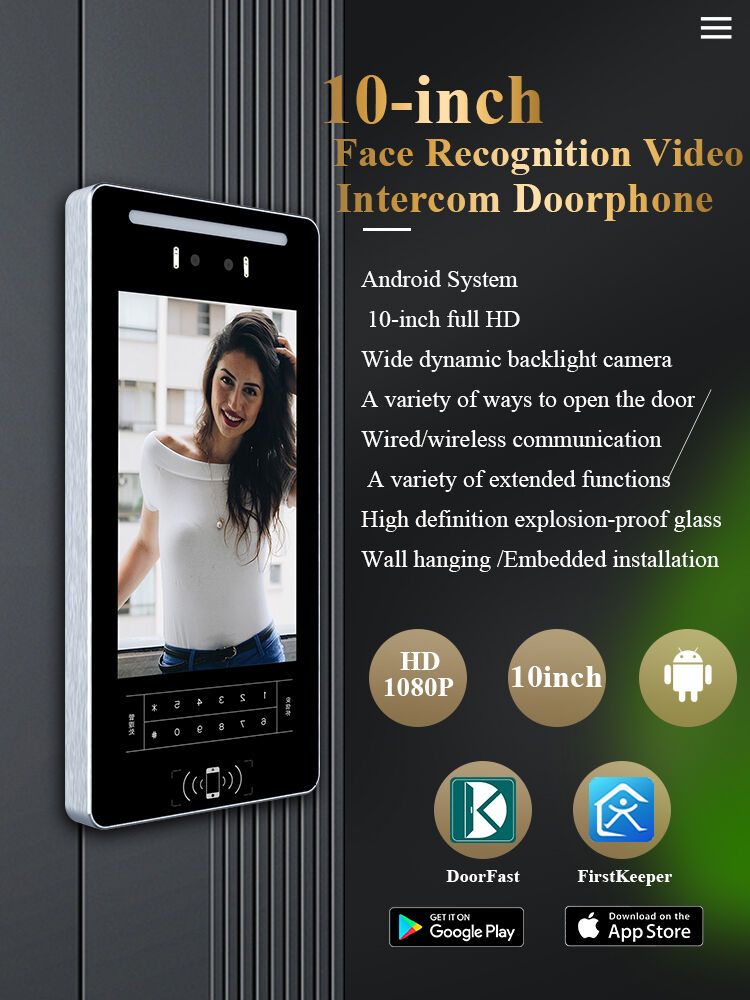

Face recognition
Bluetooth door opening
10.1-inch high-definition sereen
backlit camera

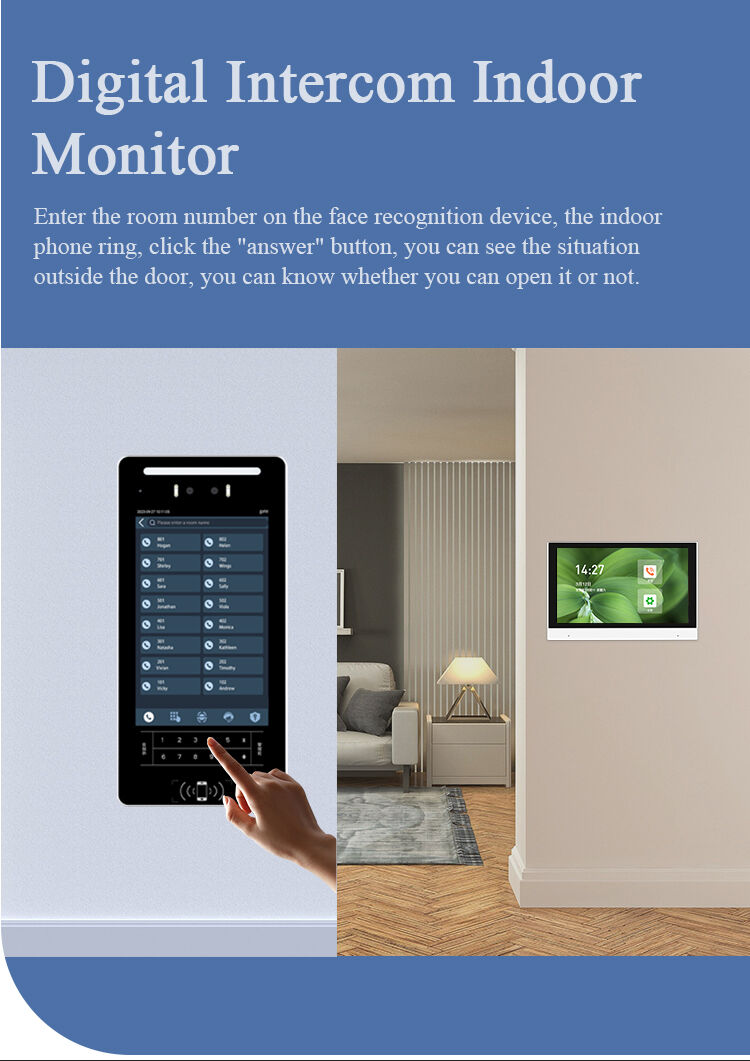

digital intercom indoor unit
analog intercom indoor unit

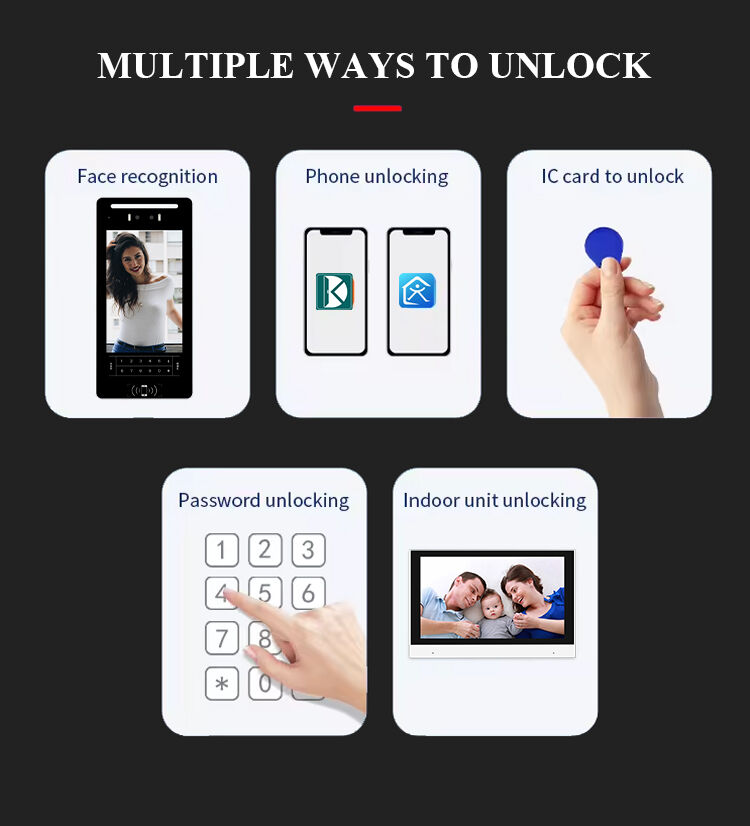

1)Multiple opening methods: face recognition for opening, mobile Bluetooth
opening, remote opening, card swiping opening, and video intercom opening, etc.
2)Android multimedia playback: high performance, low power consumption, Android system, supports image and video multimedia playback.
3)High-definition screen: Designed with a full HD screen of 10.1 inches;
4) Wide dynamic range backlight camera: Wide dynamic range backlight recognition;
5)Wired and wireless communication: Standard Ethernet, WiFi, optional 4G communication;
6)Multiple expansion functions: ID card recognition, QR code recognition;
7)Fine craftsmanship manufacturing: high-end aluminum material, tempered glass, IP54 waterproof;
8)Compatible with wall-mounted and embedded installation.
9)ODM/OEM/Custom - made.
1) A unified platform integrating visual intercom, facial recognition access control, cloud access control, parking management, elevator control, and surveillance;
2) Unified management of millions of IoT devices, comprehensive cloud audio and video solutions;
3) Terminal access for tens of thousands, load balancing, ultra-fast network;
4) Fully supports property maintenance, payment functions, meeting the Internet+ transformation of property management;
5) Real-time event logging, massive storage support, photo capture;
6) Mature API integration services, providing integration services to assist smart communities;
7) Cloud advertising management, various strategies such as resuming transmission from breakpoints to ensure the secure distribution of advertising content.
|
System |
Linux |
|
Main chip |
Quad core A55 2.0 G |
|
NPU |
1T |
|
Screen size |
10.1 inch,800*1280 |
|
Touch |
Full screen capacitive touch |
|
Memory |
2GB |
|
Storage |
16GB |
|
Camera |
Anti-reverse light width dynamic 2 million double photography |
|
Visual intercom |
Support digital intercom and cloud intercom |
|
Dialing mode |
Optional input room number, directly click on the room list, support one-click intercomdoorbell, support mobile phone number dialing * |
|
Agreement |
SIP |
|
Video |
H.264 |
|
Audio frequency |
PCMU |
|
Microphone |
Dual digital microphone |
|
Horn |
8 Euro 2 watts |
|
Face capacity |
30,000 |
|
Card capacity |
100 Thousand |
|
Event recording |
300000 |
|
Radio frequency card type |

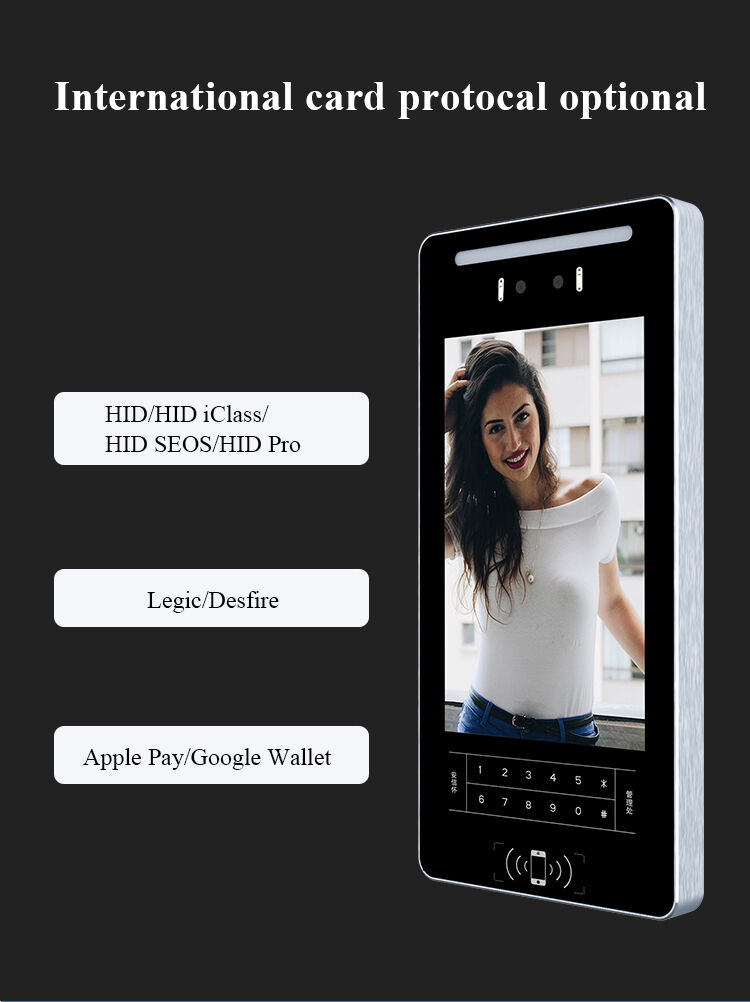

IC（ISO14443A/B) ，Mifare/CPU |
|
Elevator control function |
Support |
|
Memory |
Optional |
|
Two-dimensional code |
Optional |
|
Palmprint recognition |
Optional |
|
External access control reader |
Optional (instructions before placing order) |
|
Wiegand output |
Support |
|
Way of opening the door |
Face recognition door, mobile phone Bluetooth door, remote door, swipe card door, optional palmprint door |
|
Time schedule |
Support |
|
Normally open |
Support |
|
Combination verification |
Face + card / multi-person combination verification |
|
Bluetooth door opening distance |
Barrier-free within 10 meters |
|
Communication mode |
Standard Ethernet, WIFI, optional 4G |
|
Access control function |

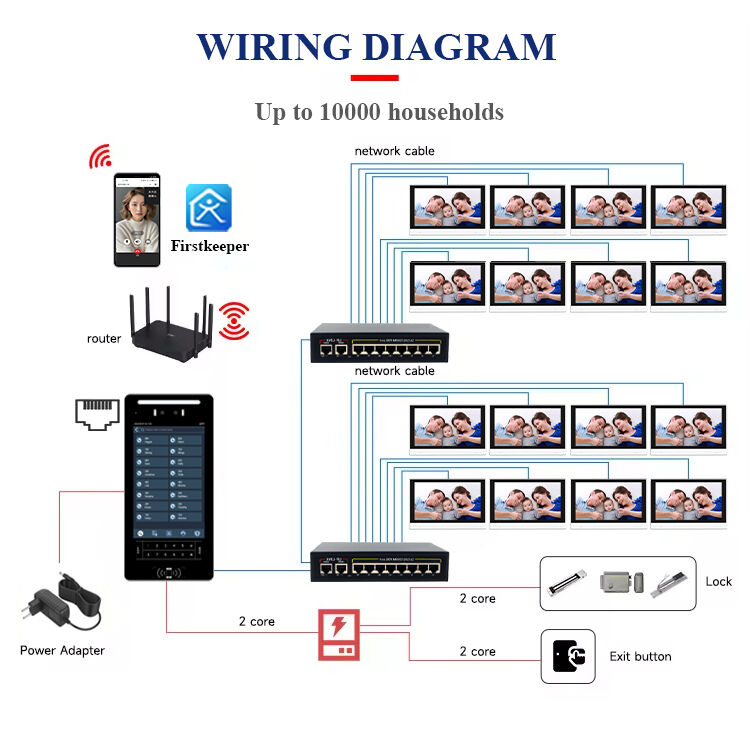

1 door magnetic, 1 unlocking relay, 1 exit switch, 1 Wiegend input interface, 485 expansion interface |
|
Shell material |
Aluminum alloy |
|
Panel material |
Toughened glass |
|
Installation mode |
Wall hanging, gate posts |
|
Equipment size |
360*174.1*33.5mm |
|
Mobile Phone |
Android/iOS iPhone |

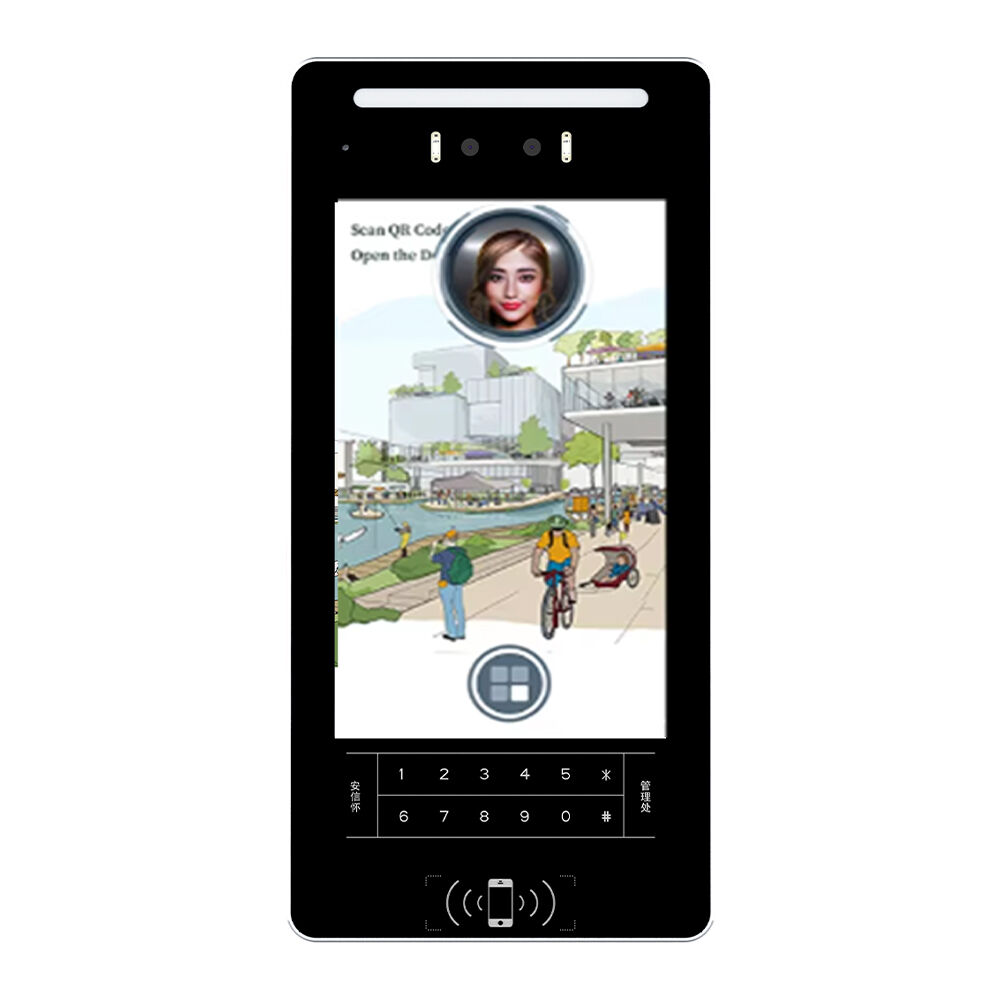

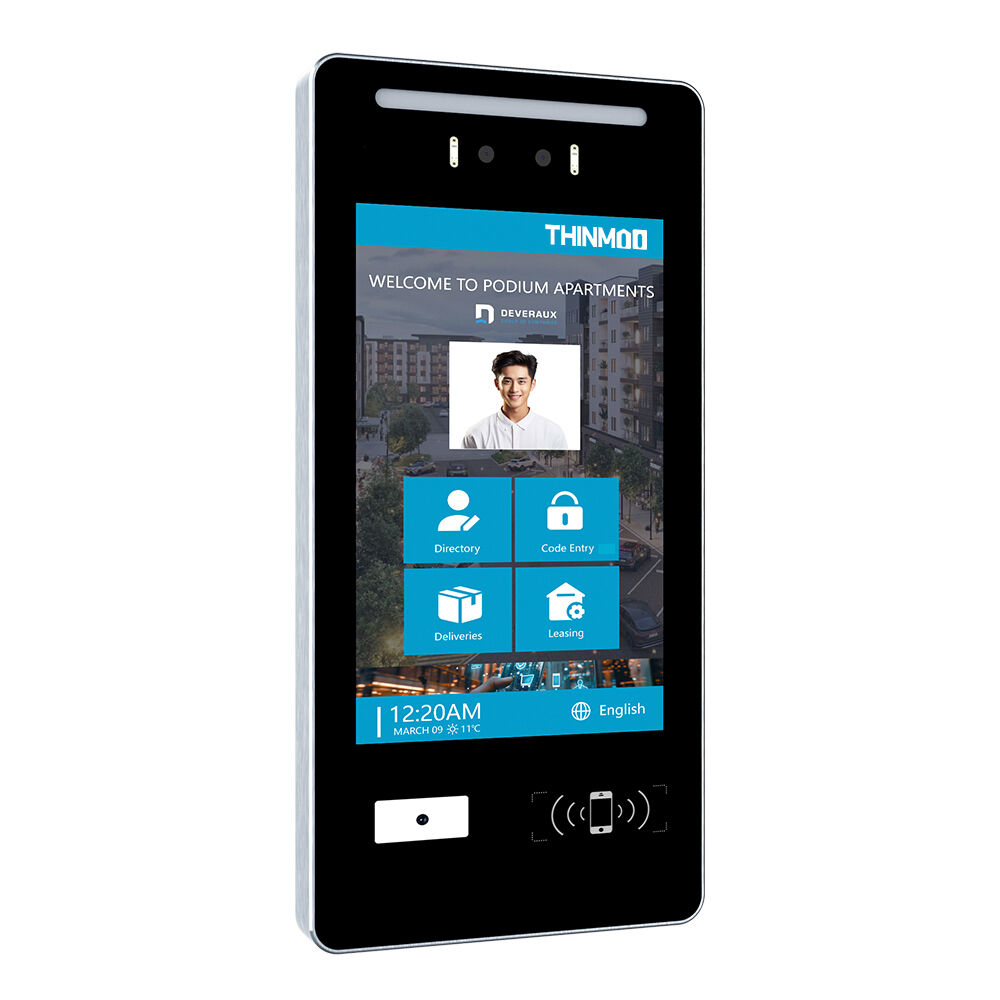

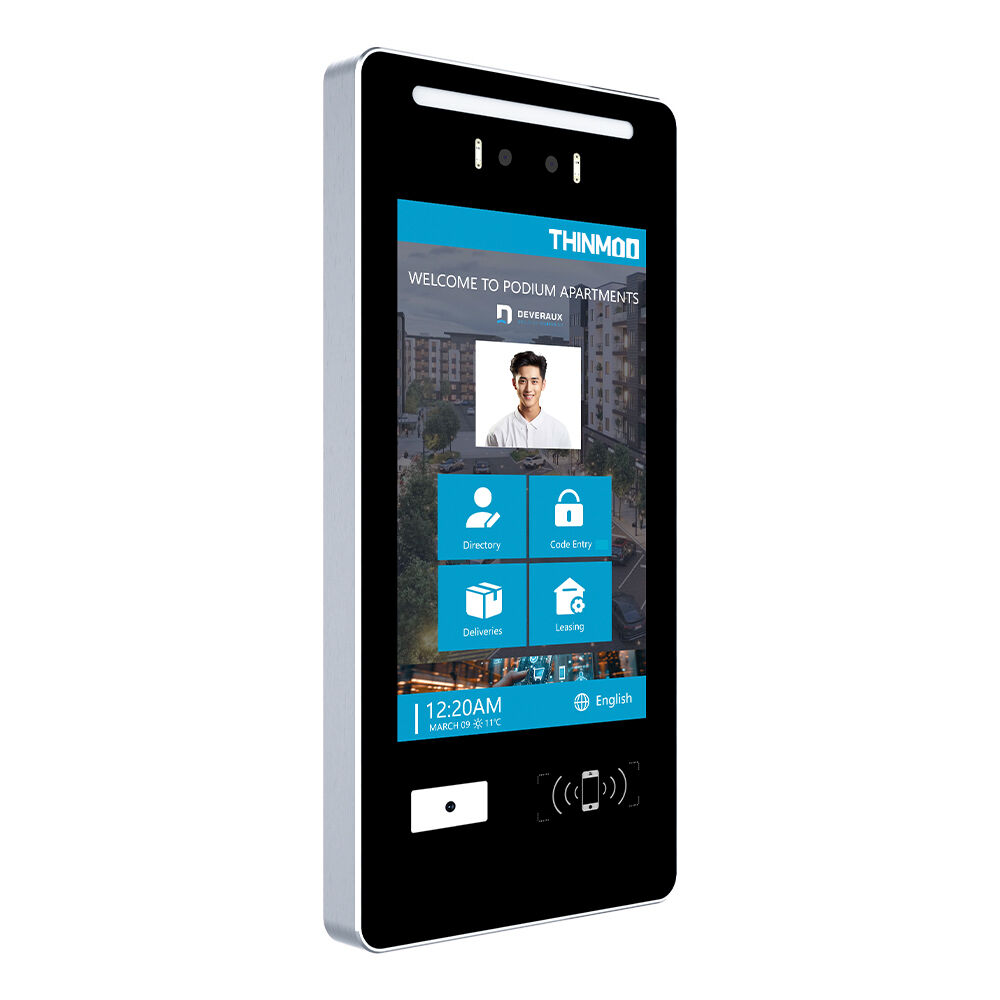

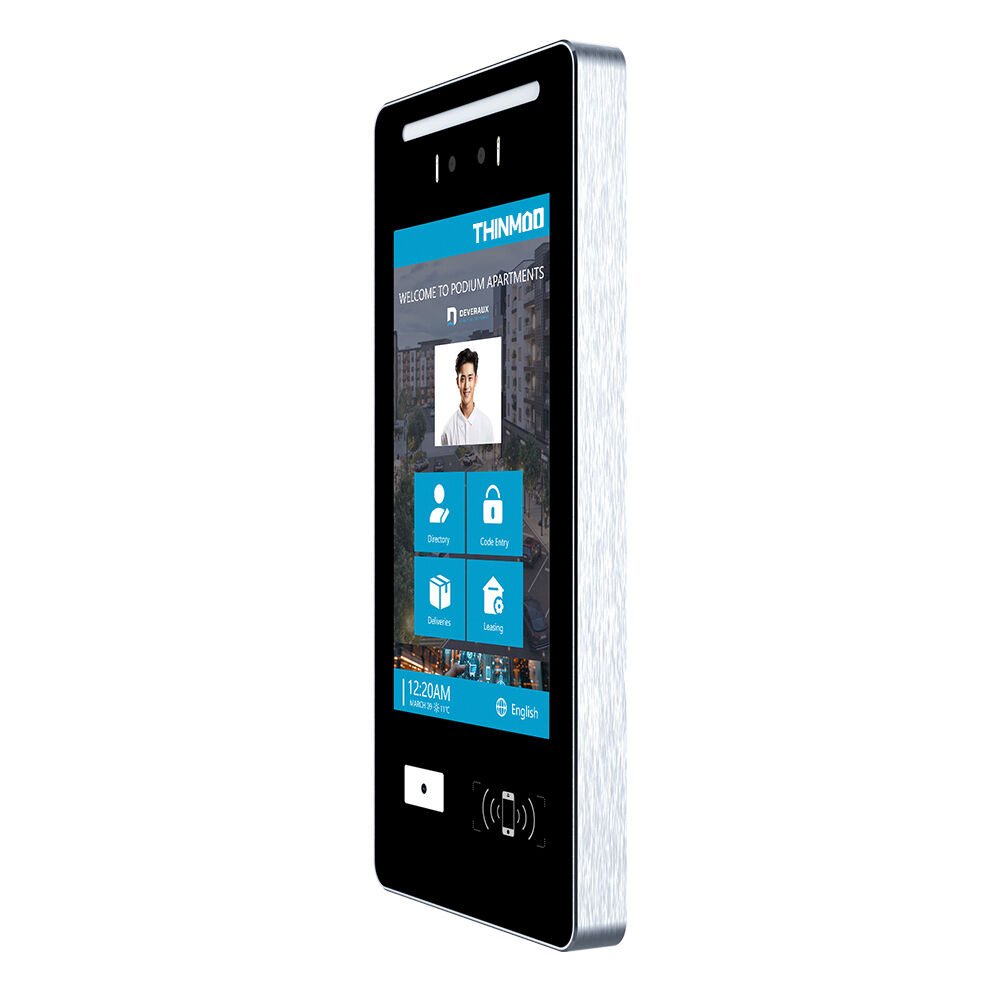

VF711 Face Recognition Video Intercom Terminal is a cost-effective and highly reliable face
recognition video intercom product. It features an innovative digital-analog intercom
compatibility design that supports both analog intercom and digital cloud intercom modes,
significantly reducing the overall cost of intelligent video intercom systems. With deep learning algorithms, it offers fast recognition speeds and higher accuracy rates. It has ultra-low power
consumption and does not generate heat. The terminal supports various verification methods
including face recognition, Bluetooth, and IC cards. It comes with a 7-inch full HD screen, a high screen-to-body ratio, and supports wall-mounting and embedded installation. It is mainly used in communities, parks, campuses, kindergartens, hospitals, and other locations.
