Visual intercom
Face recognition
8-inch touch screen
Ultra-thin high-end design
Wide dynamic dual camera
1) Many ways to open the door: face recognition, palmprint recognition, mobile phone Bluetooth, mobile phone remote, swiping card, visual intercom door, etc.
2) Android multimedia playback: high performance, low power consumption, Android system, support for picture and video multimedia playback.
3) HD touch screen: 8-inch full HD touch screen design.
4) Wide dynamic backlight camera: wide dynamic anti-backlight recognition.
5) Wired and wireless communication: standard Ethernet, WiFi, optional 4G communication.
6) A variety of extended functions: QR code recognition, elevator control, external reader, configured as one-button doorbell mode; multi-person combination verification, witness recognition.
7) Fine craft manufacturing: high-end aluminum, tempered glass, IP65 waterproof design.
8) Compatible with gate posts, wall hangings, embedded installation
9）ODM/OEM/Custom - made.
1) Unified management of millions of devices in the Internet of things and comprehensive cloud audio and video solutions.
2) Million-level terminal access, load balancing, high-speed network.
3) A unified platform for integrated visual intercom, access control, visitors, parking lot, charging, elevator control and monitoring.
4) Fully support property repair, payment, booking and other functions to meet the needs of owners of the Internet of everything and support property Internet upgrade.
5) Real-time event recording, mass storage support.
6) Mature API development interface to provide docking and integration services.
7) Cloud advertising management, breakpoint continuation and other strategies to ensure the safe distribution of advertising content.
|
System |
Android 11 |
|
Main chip |
Quad core A55 2.0 G |
|
NPU |
1T |
|
Screen size |
8 inch,800*1280 |
|
Touch |
Full screen capacitive touch |
|
Memory |
2GB |
|
Storage |
16GB |
|
Camera |
Anti-reverse light width dynamic 2 million double photography |
|
Visual intercom |
Support digital intercom and cloud intercom |
|
Dialing mode |
Optional input room number, directly click on the room list, support one-click intercom doorbell, support mobile phone number dialing * |
|
Agreement |
SIP |
|
Video |
H.264 |
|
Audio frequency |
PCMU |
|
Microphone |
Dual digital microphone |
|
Horn |
8 Euro 2 watts |
|
Face capacity |
30,000 |
|
Card capacity |
100 Thousand |
|
Event recording |
300000 |
|
Radio frequency card type |
IC（ISO14443A/B)，Mifare/CPU |
|
Elevator control function |
Support |
|
Memory |
Optional |
|
Two-dimensional code |
Optional |
|
Palmprint recognition |
Optional |
|
External access control reader |
Support |
|
Wiegand output |
Support |
|
Way of opening the door |
Face recognition door, mobile phone Bluetooth door, remote door, swipe card door, optional palmprint door |
|
Time schedule |
Support |
|
Normally open |
Support |
|
Combination verification |
Face + card / multi-person combination verification |
|
Bluetooth door opening distance |
Barrier-free within 10 meters |
|
Communication mode |
Standard Ethernet, WIFI, optional 4G |
|
Access control function |

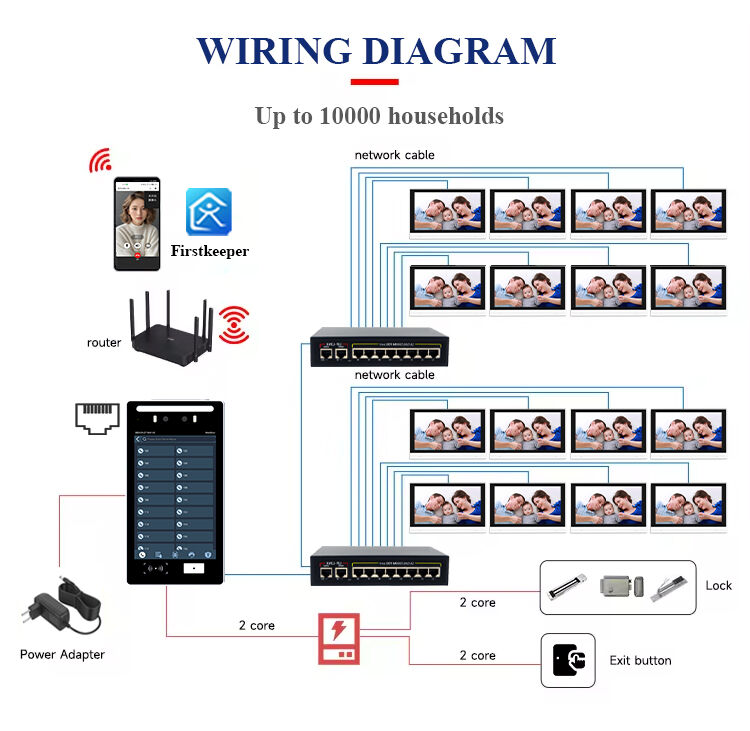

1 door magnetic, 1 unlocking relay, 1 exit switch, 1 Wiegend input interface, 485 expansion interface |
|
Shell material |
Aluminum alloy |
|
Panel material |
Toughened glass |
|
Installation mode |
Wall hanging, gate posts |
|
Equipment size |
250.7*133*25.5mm |
|
Mobile Phone |
Android/iOS iPhone |

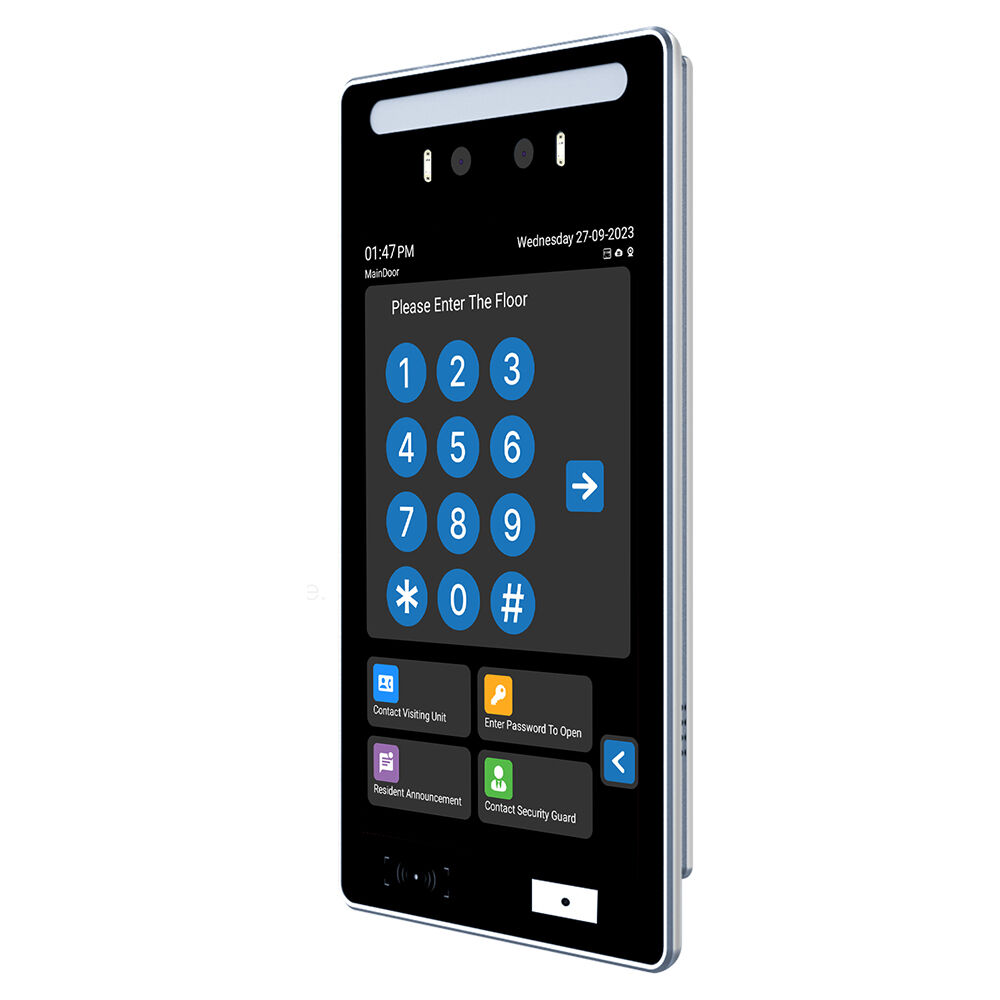

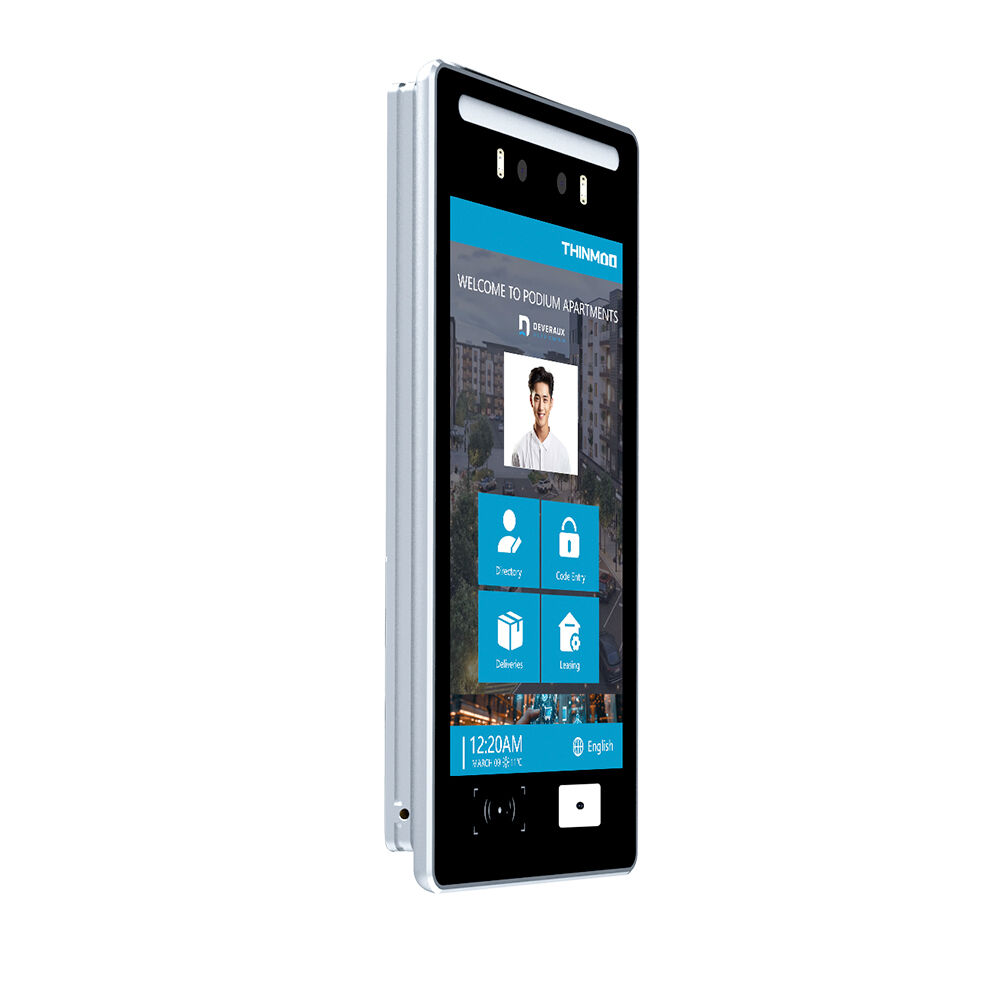

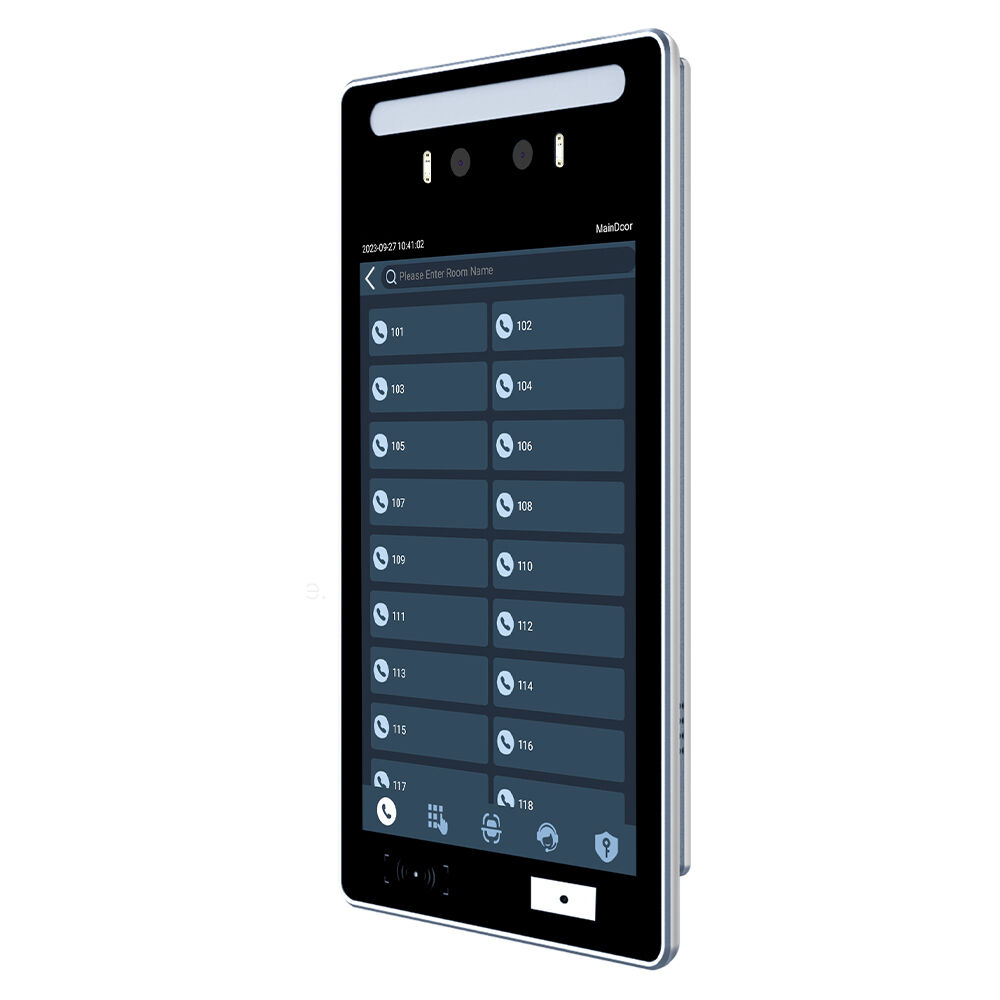

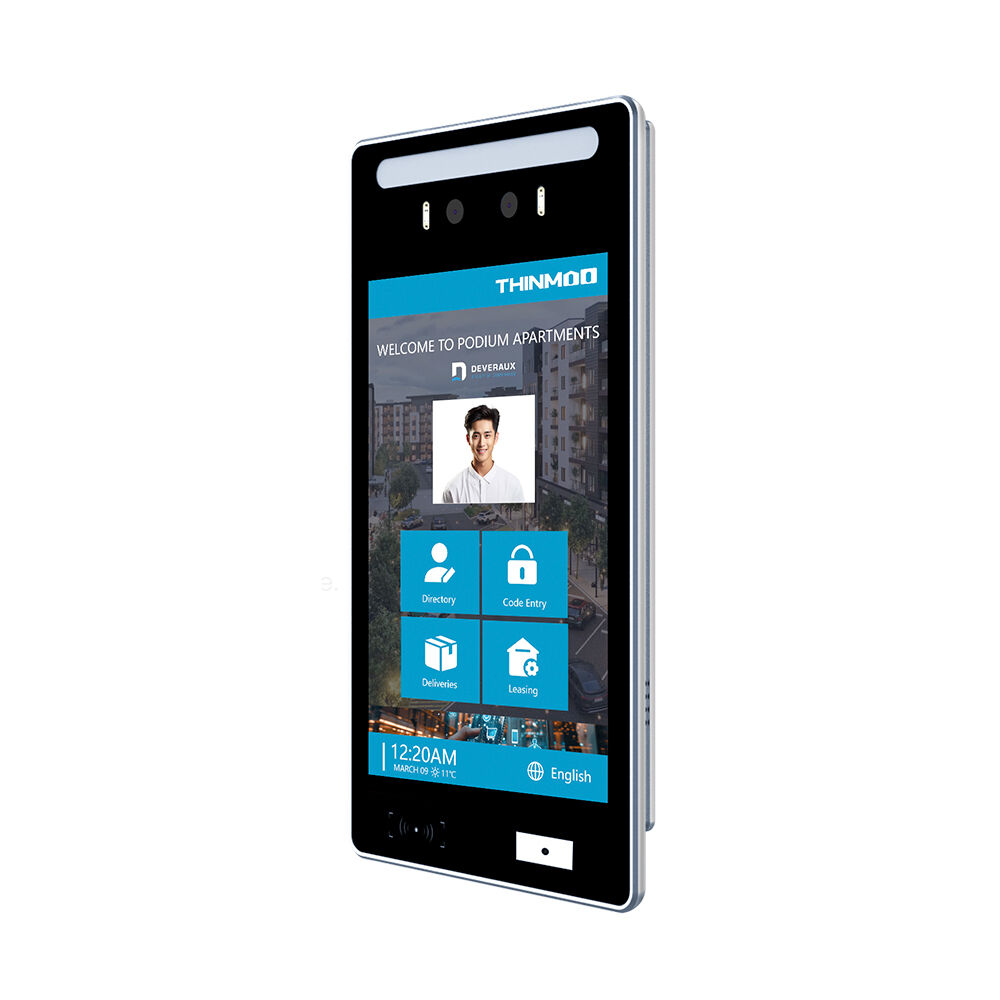

Visual intercom access control terminal is a highly reliable, high-looking face recognition / palmprint recognition visual intercom door guard machine, supporting visual intercom, face recognition, optional innovative palmprint
recognition technology, convenient for users to enter and exit, protect user privacy, deep learning algorithm, faster recognition speed, higher accuracy, low power consumption and low heat, and support face recognition, palmprint recognition, Bluetooth, IC card and other authentication methods. 8-inch full HD screen, high screen proportion,
support hanging wall, embedded installation, mainly used in residential areas, parks, buildings, campuses, hospitals and other places.
